Ferrari 296 GTB Europe - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
903941 VALVE TIMING AND PUMP DRIVE SYSTEM $2,160.58 To Order
Photo Part No Description Price (each) Stock
876147 VALVE TIMING CHAIN $151.15 To Order
Photo Part No Description Price (each) Stock
803163 CHAIN $188.95 To Order
Photo Part No Description Price (each) Stock
803168 PUMP DRIVE CHAIN $133.85 To Order
Photo Part No Description Price (each) Stock
778322 TIMING SYSTEM COMPARTMENT FILLER $85.66 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $702.96 IN STOCK
Photo Part No Description Price (each) Stock
11181579 WASHER $0.35 To Order
Photo Part No Description Price (each) Stock
905013 FIXED SHOE $302.34 To Order
Photo Part No Description Price (each) Stock
282396 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
803165 FIXED SHOE $84.40 To Order
Photo Part No Description Price (each) Stock
806402 FIXED SHOE $84.40 To Order
Photo Part No Description Price (each) Stock
14302821 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
163759 WASHER $13.38 To Order
Photo Part No Description Price (each) Stock
876149 MOBILE SHOE $136.86 To Order
Photo Part No Description Price (each) Stock
175303 BUSH $32.74 To Order
Photo Part No Description Price (each) Stock
14306421 SCREW $0.29 To Order
Photo Part No Description Price (each) Stock
284900 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
288341 WASHER $2.60 To Order
Photo Part No Description Price (each) Stock
903948 HYDRAULIC TENSIONER $49.12 To Order
Photo Part No Description Price (each) Stock
903967 HYDRAULIC TENSIONER $138.56 To Order
Photo Part No Description Price (each) Stock
958150 GASKET $5.21 To Order
Photo Part No Description Price (each) Stock
282398 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
803167 FIXED SHOE $163.76 To Order
Photo Part No Description Price (each) Stock
904999 MOBILE SHOE $377.92 To Order
Photo Part No Description Price (each) Stock
905015 FIXED SHOE $201.55 To Order
Photo Part No Description Price (each) Stock
181336 SCREW $3.14 IN STOCK
Photo Part No Description Price (each) Stock
12649624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
954458 HYDRAULIC CHAIN TENSIONER $453.52 To Order
Photo Part No Description Price (each) Stock
958152 GASKET $6.02 To Order
Photo Part No Description Price (each) Stock
806470 DRIVE GEAR $491.31 To Order
Photo Part No Description Price (each) Stock
267808 ROLLER BEARING CAGE $13.08 To Order
Photo Part No Description Price (each) Stock
304699 SHOULDER $34.00 To Order
Photo Part No Description Price (each) Stock
284898 SCREW $2.86 To Order
Photo Part No Description Price (each) Stock
806533 MOUNTING $285.76 To Order
Photo Part No Description Price (each) Stock
154191 GASKET $1.31 IN STOCK
Photo Part No Description Price (each) Stock
839197 SHAFT GEAR $466.12 To Order
Photo Part No Description Price (each) Stock
807703 WASHER $33.59 To Order
Photo Part No Description Price (each) Stock
245915 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
806536 PUMP DRIVE GEAR $188.95 To Order
Photo Part No Description Price (each) Stock
255780 SCREW $1.09 To Order
View All

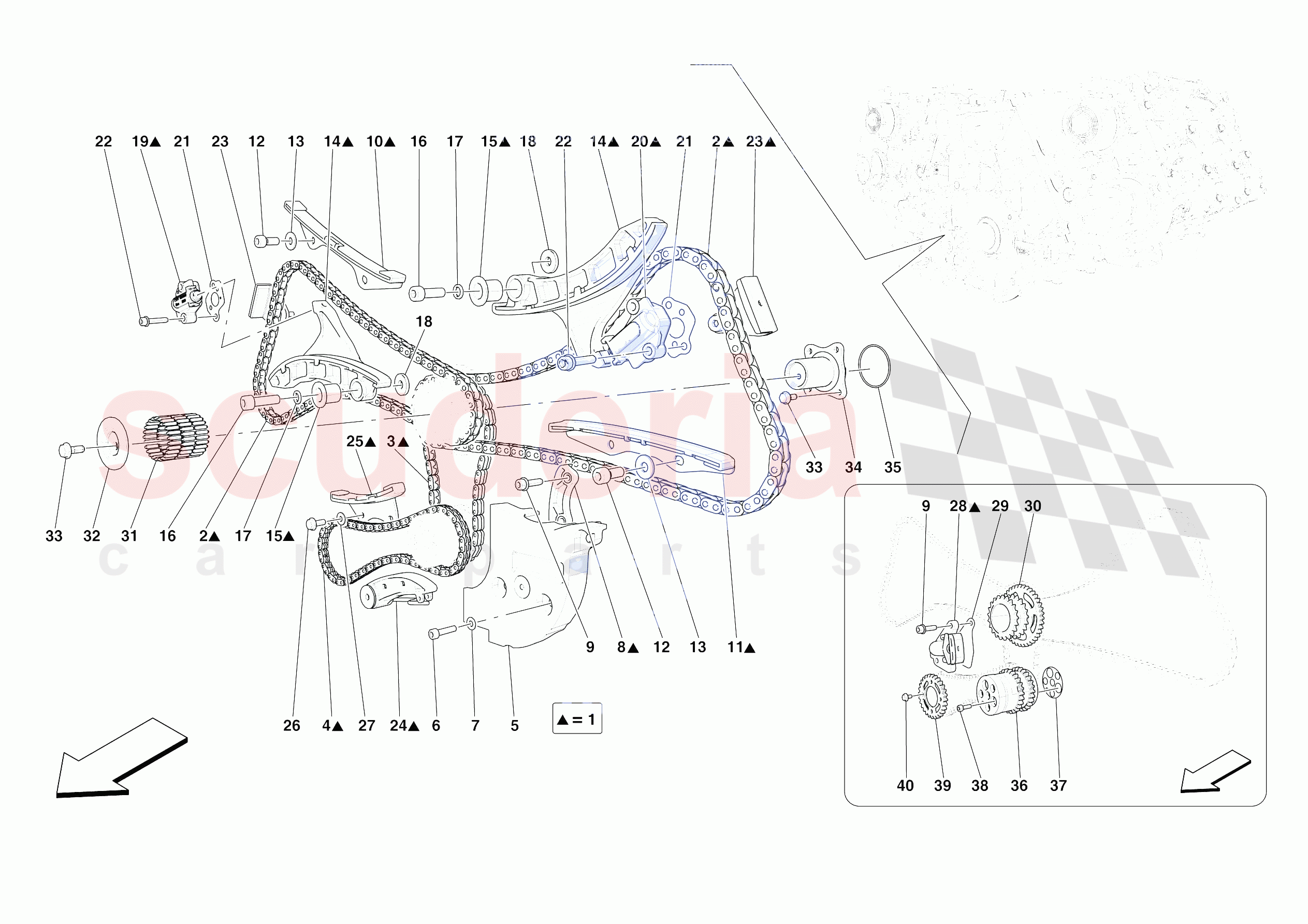

TIMING SYSTEM DRIVE of Ferrari Ferrari 296 GTB Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 903941
VALVE TIMING AND PUMP DRIVE SYSTEM 		$2,160.58 1
2 876147
VALVE TIMING CHAIN 		$151.15 2
3 803163
CHAIN 		$188.95 1
4 803168
PUMP DRIVE CHAIN 		$133.85 1
5 778322
TIMING SYSTEM COMPARTMENT FILLER 		$85.66 1
6 319201
FUEL FILLER PIPE ASSEMBLY
M5 X 20
IN STOCK 		$702.96 3
7 11181579
WASHER 		$0.35 3
8 905013
FIXED SHOE 		$302.34 1
9 282396
SCREW
M6 X 22 		$0.53 4
10 803165
FIXED SHOE 		$84.40 1
11 806402
FIXED SHOE 		$84.40 1
12 14302821
SCREW
M8 X 18 		$0.18 4
13 163759
WASHER 		$13.38 4
14 876149
MOBILE SHOE 		$136.86 2
15 175303
BUSH 		$32.74 2
16 14306421
SCREW
M8 X 20 		$0.29 2
17 284900
WASHER 		$0.15 2
18 288341
WASHER 		$2.60 2
19 903948
HYDRAULIC TENSIONER 		$49.12 1
20 903967
HYDRAULIC TENSIONER 		$138.56 1
21 958150
GASKET
Also included in engine gasket set 		$5.21 2
22 282398
SCREW
M6 X 30 		$0.46 4
23 803167
FIXED SHOE 		$163.76 2
24 904999
MOBILE SHOE 		$377.92 1
25 905015
FIXED SHOE 		$201.55 1
26 181336
SCREW
M6 X 16
IN STOCK 		$3.14 (33.9% off) 2
27 12649624
WASHER 		- 2 Enquire
28 954458
HYDRAULIC CHAIN TENSIONER 		$453.52 1
29 958152
GASKET
Also included in engine gasket set 		$6.02 1
30 806470
DRIVE GEAR 		$491.31 1
31 267808
ROLLER BEARING CAGE 		$13.08 3
32 304699
SHOULDER 		$34.00 1
33 284898
SCREW
M6 X 16 		$2.86 5
34 806533
MOUNTING 		$285.76 1
35 154191
GASKET
Also included in engine gasket set
IN STOCK 		$1.31 (48% off) 1
36 839197
SHAFT GEAR 		$466.12 1
37 807703
WASHER 		$33.59 1
38 245915
SCREW
M5 X 14 		$1.09 1
39 806536
PUMP DRIVE GEAR 		$188.95 1
40 255780
SCREW 		$1.09 4
