Engine Cooling System Radiators

Ferrari 296 GTS USA

Find Your Part

Ferrari 296 GTS USA - ENGINE COOLING SYSTEM RADIATORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
884488 RH WATER RADIATOR $1,641.05 To Order
Photo Part No Description Price (each) Stock

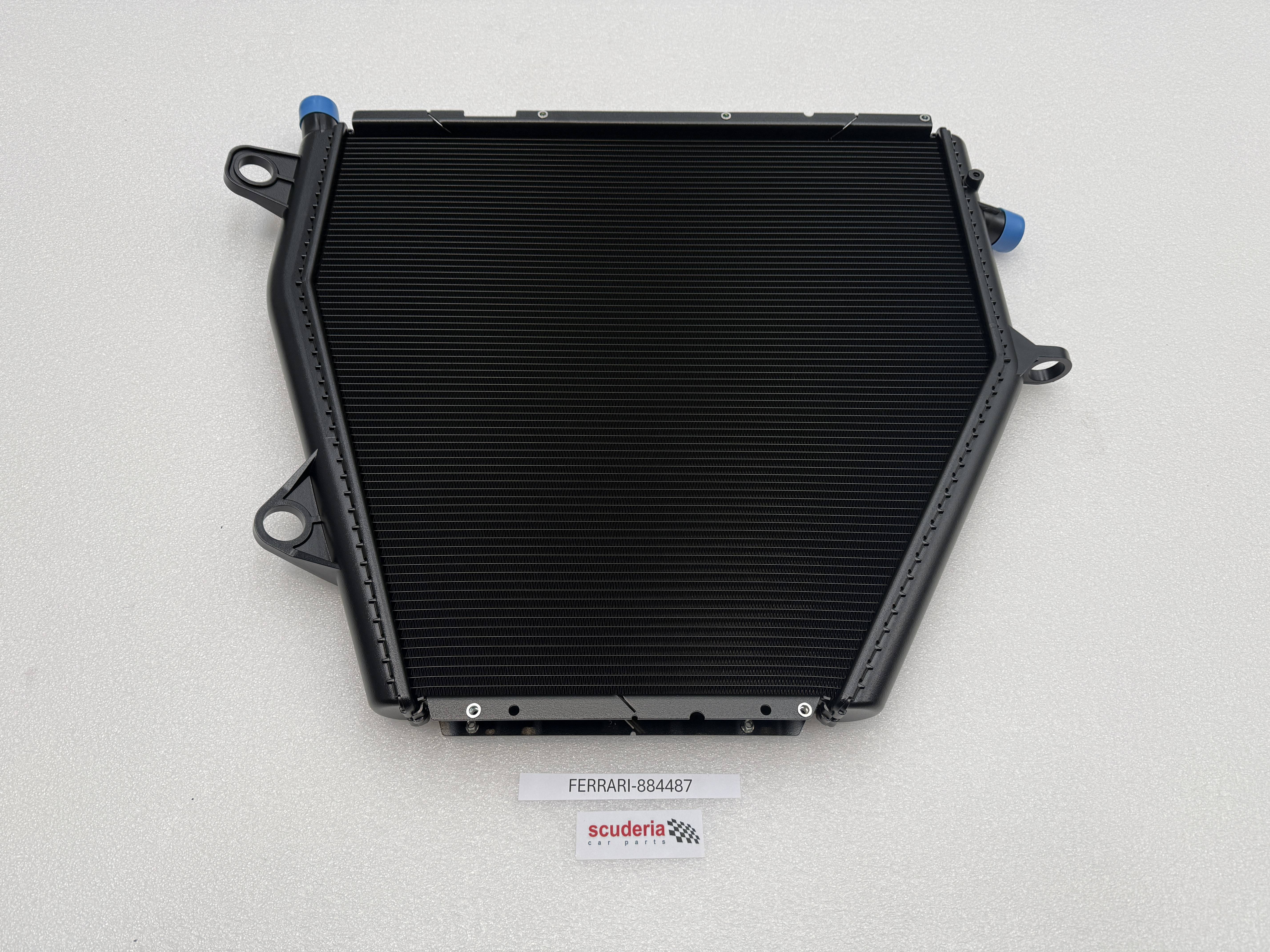

884487 LH WATER RADIATOR $1,695.76 IN STOCK
Photo Part No Description Price (each) Stock
938570 RH FAN COWL $793.02 To Order
Photo Part No Description Price (each) Stock

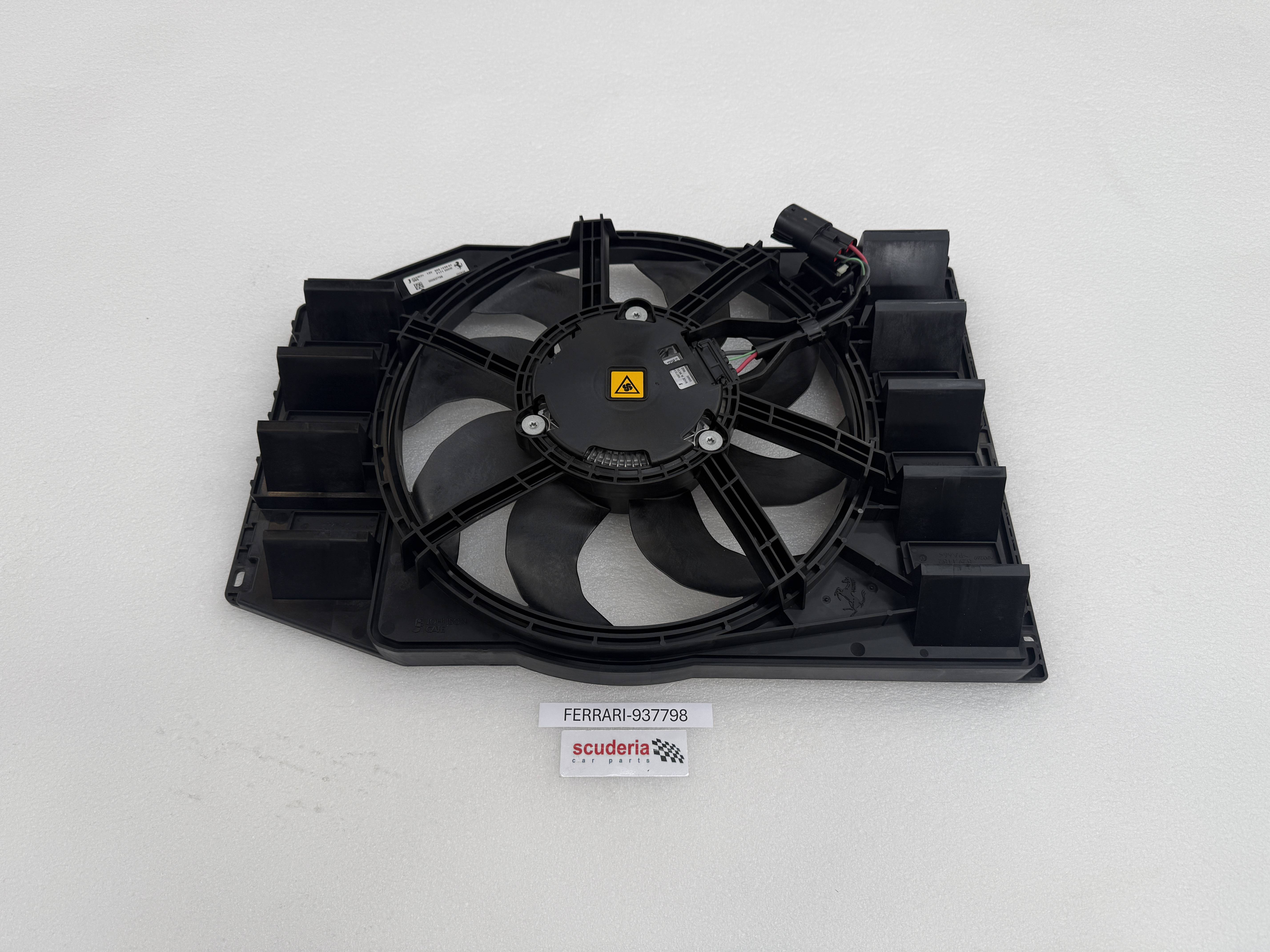

937798 LH FAN COWL $819.45 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
747853 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
262836 CONDENSER $799.36 IN STOCK
Photo Part No Description Price (each) Stock
798958 CONDENSER $510.69 IN STOCK
Photo Part No Description Price (each) Stock
747853 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
770533 RH BRACKET $37.07 To Order
Photo Part No Description Price (each) Stock
770535 LH BRACKET $37.07 To Order
Photo Part No Description Price (each) Stock
14304387 SCREW $0.85 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
798033 PIPE FROM CONDENSER TO FILTER $255.79 To Order
Photo Part No Description Price (each) Stock
797994 FREON DELIVERY PIPE TO CONDENSER $166.27 To Order
Photo Part No Description Price (each) Stock
14305487 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
14499378 WASHER $0.69 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
263230 CLIP $1.28 To Order
Photo Part No Description Price (each) Stock
804781 CONDENSER CONNECTOR PIPE $166.27 To Order
Photo Part No Description Price (each) Stock
926141 PIPE FROM DISCONNECTOR TO RH CONDENSER $153.47 To Order
Photo Part No Description Price (each) Stock
770588 PIPE FROM DISCONNECTOR TO LH CONDENSER $179.06 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
15699804 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
267798 BUSH $9.19 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
244216 CLIP $3.75 To Order
Photo Part No Description Price (each) Stock
11612826 SCREW $2.98 To Order
Photo Part No Description Price (each) Stock
237478 MOUNTING RADIATOR $21.13 IN STOCK
Photo Part No Description Price (each) Stock
247751 WASHER $5.37 IN STOCK
Photo Part No Description Price (each) Stock
849234 SCREW $2.56 To Order
Photo Part No Description Price (each) Stock
747853 SCREW $0.68 To Order
747853 SCREW $0.68 To Order
View All
ENGINE COOLING SYSTEM RADIATORS of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 884488
RH WATER RADIATOR 		$1,641.05 1
0002 884487
LH WATER RADIATOR
IN STOCK 		$1,695.76 1
0003 938570
RH FAN COWL 		$793.02 1
0004 937798
LH FAN COWL
IN STOCK 		$819.45 1
0005 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 1
0005 747853
SCREW
M5 X 25 		$0.68 4
0006 12644424
WASHER
IN STOCK 		$0.06 (85% off) 24
0007 262836
CONDENSER
RH side
IN STOCK 		$799.36 (24% off) 1
0008 798958
CONDENSER
LH side
IN STOCK 		$510.69 1
0009 747853
SCREW
M5 X 20 		$0.68 1
0010 770533
RH BRACKET 		$37.07 3
0011 770535
LH BRACKET 		$37.07 1
0012 14304387
SCREW
M5 X 20 		$0.85 4
0013 62769800
WASHER
IN STOCK 		$0.22 (26.7% off) 4
0014 14059290
FLANGED NUT M6
IN STOCK 		$1.33 4
0015 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 4
0016 798033
PIPE FROM CONDENSER TO FILTER 		$255.79 1
0017 797994
FREON DELIVERY PIPE TO CONDENSER 		$166.27 1
0018 14305487
SCREW
M6 X 25 		$0.77 1
0019 14499378
WASHER 		$0.69 1
0020 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 5
0021 10441490
BRACKET WITH SHEATH
D. 14
IN STOCK 		$0.52 1
0022 263230
CLIP 		$1.28 1
0023 804781
CONDENSER CONNECTOR PIPE 		$166.27 1
0024 926141
PIPE FROM DISCONNECTOR TO RH CONDENSER 		$153.47 1
0025 770588
PIPE FROM DISCONNECTOR TO LH CONDENSER 		$179.06 1
0026 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 1
0027 10441590
BRACKET WITH SHEATH
IN STOCK 		$0.52 4
0028 15699804
SCREW
M6 X 20
IN STOCK 		$0.17 3
0029 267798
BUSH 		$9.19 2
0030 14040614
NUT
IN STOCK 		$0.14 2
0031 244216
CLIP 		$3.75 1
0032 11612826
SCREW
M6 X 25 		$2.98 1
0033 237478
MOUNTING RADIATOR
IN STOCK 		$21.13 6
0034 247751
WASHER
IN STOCK 		$5.37 6
0035 849234
SCREW
M8 X 47 		$2.56 6
0036 747853
SCREW
M5 X 20 		$0.68 4
0036 747853
SCREW
M5 X 25 		$0.68 4
