Intercooler

Ferrari 296 GTS USA

Find Your Part

Ferrari 296 GTS USA - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
874363 LH INTERCOOLER $1,545.25 To Order
874364 RH INTERCOOLER $1,545.25 To Order
Photo Part No Description Price (each) Stock
914435 O-RING $2.09 To Order
Photo Part No Description Price (each) Stock
910534 INTERCOOLER V-CLAMP $78.32 To Order
Photo Part No Description Price (each) Stock
941361 LH INTERCOOLER RIGID PIPE $55.57 To Order
777776 RH INTERCOOLER RIGID PIPE $58.10 To Order
Photo Part No Description Price (each) Stock
297576 COLLAR $5.56 To Order
Photo Part No Description Price (each) Stock
814993 COLLAR $38.75 To Order
Photo Part No Description Price (each) Stock
941399 LH HOSE $859.17 To Order
777774 RH HOSE $821.26 To Order
Photo Part No Description Price (each) Stock
297572 COLLAR $4.72 To Order
Photo Part No Description Price (each) Stock
914140 LH INTERCOOLER LOWER BRACKET $40.41 To Order
914144 RH INTERCOOLER LOWER BRACKET $40.41 To Order
Photo Part No Description Price (each) Stock
811614 LH INTERCOOLER UPPER BRACKET $65.69 To Order
811654 RH INTERCOOLER UPPER BRACKET $65.69 To Order
Photo Part No Description Price (each) Stock
789073 WASHER $0.29 To Order
Photo Part No Description Price (each) Stock
844545 LH PIPE CONNECTOR BARREL $240.05 To Order
844546 RH PIPE CONNECTOR BARREL $214.79 To Order
Photo Part No Description Price (each) Stock
889223 O-RING $1.97 To Order
Photo Part No Description Price (each) Stock
835465 PRESSURE AND TEMPERATURE SENSOR $45.62 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
315495 DUMP-VALVE $176.87 To Order
Photo Part No Description Price (each) Stock
771901 LH HOSE $88.42 To Order
771902 RH HOSE $88.42 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.74 IN STOCK
Photo Part No Description Price (each) Stock
920644 SOUND GENERATOR HOSE $45.47 To Order
Photo Part No Description Price (each) Stock
296783 SCREW COLLAR $9.57 IN STOCK
Photo Part No Description Price (each) Stock
310096 SOUND GENERATOR $240.05 To Order
Photo Part No Description Price (each) Stock
314100 RIVET $0.43 To Order
Photo Part No Description Price (each) Stock
920645 FASTENER SLEEVE $42.94 To Order
Photo Part No Description Price (each) Stock
746942 SOUND GENERATOR BRACKET $40.41 To Order
Photo Part No Description Price (each) Stock
847290 LH RIGID DUMP VALVE PIPE $859.17 To Order
847291 RH RIGID DUMP VALVE PIPE $859.17 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
847276 LH DUMP VALVE HOSE $83.38 To Order
847277 RH DUMP VALVE HOSE $83.38 To Order
Photo Part No Description Price (each) Stock
178053 CLAMP $1.45 IN STOCK
Photo Part No Description Price (each) Stock
771777 LH PIPE CONNECTOR BARREL BRACKET $22.72 To Order
771778 RH PIPE CONNECTOR BARREL BRACKET $22.72 To Order
Photo Part No Description Price (each) Stock
797731 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
917701 RUBBER PAD $2.94 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
797724 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
797729 SCREW $0.73 To Order
View All

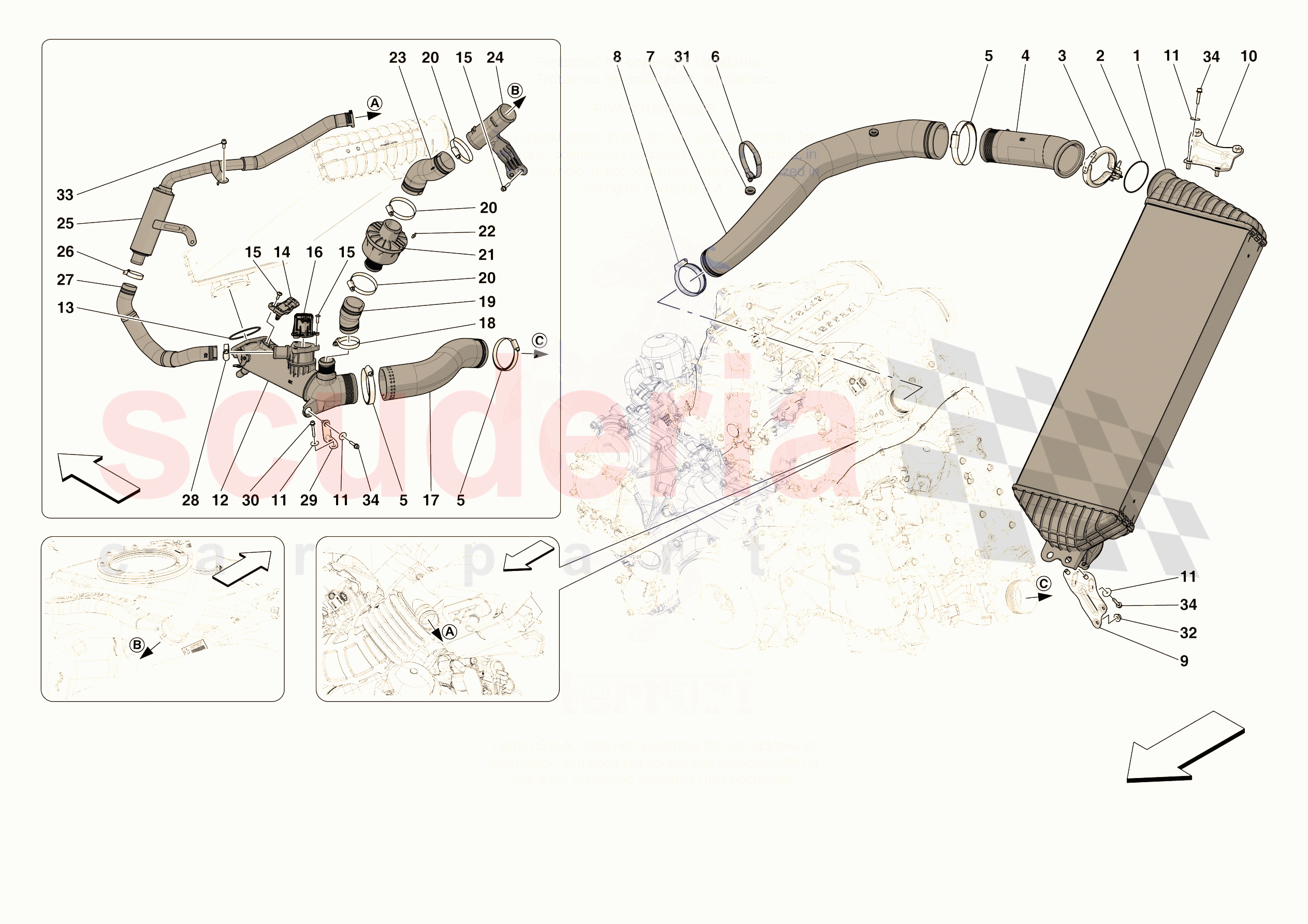

INTERCOOLER of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 874363
LH INTERCOOLER 		$1,545.25 1
0001 874364
RH INTERCOOLER 		$1,545.25 1
0002 914435
O-RING 		$2.09 2
0003 910534
INTERCOOLER V-CLAMP 		$78.32 2
0004 941361
LH INTERCOOLER RIGID PIPE 		$55.57 1
0004 777776
RH INTERCOOLER RIGID PIPE 		$58.10 1
0005 297576
COLLAR 		$5.56 6
0006 814993
COLLAR 		$38.75 2
0007 941399
LH HOSE 		$859.17 1
0007 777774
RH HOSE 		$821.26 1
0008 297572
COLLAR 		$4.72 2
0009 914140
LH INTERCOOLER LOWER BRACKET 		$40.41 1
0009 914144
RH INTERCOOLER LOWER BRACKET 		$40.41 1
0010 811614
LH INTERCOOLER UPPER BRACKET 		$65.69 1
0010 811654
RH INTERCOOLER UPPER BRACKET 		$65.69 1
0011 789073
WASHER 		$0.29 18
0012 844545
LH PIPE CONNECTOR BARREL 		$240.05 1
0012 844546
RH PIPE CONNECTOR BARREL 		$214.79 1
0013 889223
O-RING 		$1.97 2
0014 835465
PRESSURE AND TEMPERATURE SENSOR 		$45.62 2
0015 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 16
0016 315495
DUMP-VALVE 		$176.87 2
0017 771901
LH HOSE 		$88.42 1
0017 771902
RH HOSE 		$88.42 1
0018 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.74 1
0019 920644
SOUND GENERATOR HOSE 		$45.47 1
0020 296783
SCREW COLLAR
IN STOCK 		$9.57 3
0021 310096
SOUND GENERATOR 		$240.05 1
0022 314100
RIVET 		$0.43 2
0023 920645
FASTENER SLEEVE 		$42.94 1
0024 746942
SOUND GENERATOR BRACKET 		$40.41 1
0025 847290
LH RIGID DUMP VALVE PIPE 		$859.17 1
0025 847291
RH RIGID DUMP VALVE PIPE 		$859.17 1
0026 262111
SCREW CLAMP 		$1.39 2
0027 847276
LH DUMP VALVE HOSE 		$83.38 1
0027 847277
RH DUMP VALVE HOSE 		$83.38 1
0028 178053
CLAMP
IN STOCK 		$1.45 (6.5% off) 2
0029 771777
LH PIPE CONNECTOR BARREL BRACKET 		$22.72 1
0029 771778
RH PIPE CONNECTOR BARREL BRACKET 		$22.72 1
0030 797731
SCREW
M5 X 35 		$0.50 2
0031 917701
RUBBER PAD 		$2.94 2
0032 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
0033 797724
SCREW
M5 X 14 		$0.43 4
0034 797729
SCREW
M5 X 25 		$0.73 14
