Cylinder Heads - Timing

Ferrari 296 GTS USA

Find Your Part

Ferrari 296 GTS USA - CYLINDER HEADS - TIMING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
927969 RH INTAKE CAMSHAFT $419.18 To Order
Photo Part No Description Price (each) Stock
927970 LH INTAKE CAMSHAFT $419.18 To Order
Photo Part No Description Price (each) Stock
961460 RH EXHAUST CAMSHAFT $392.14 To Order
Photo Part No Description Price (each) Stock
961461 LH EXHAUST CAMSHAFT $392.14 To Order
Photo Part No Description Price (each) Stock
795894 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $657.27 To Order
Photo Part No Description Price (each) Stock
795895 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $657.27 To Order
Photo Part No Description Price (each) Stock
254892 SCREW $12.19 IN STOCK
Photo Part No Description Price (each) Stock
296310 SPACER $21.48 To Order
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $8.19 IN STOCK
Photo Part No Description Price (each) Stock
246965 O-RING $11.22 IN STOCK
Photo Part No Description Price (each) Stock
828771 INTAKE VALVE $36.65 To Order
828769 EXHAUST VALVE $74.56 To Order
Photo Part No Description Price (each) Stock
925694 LOWER VALVE SPRING CAP $11.23 To Order
925693 LOWER VALVE SPRING CAP $11.49 To Order
Photo Part No Description Price (each) Stock
821149 SPRING $17.68 To Order
Photo Part No Description Price (each) Stock
899547 OIL SEAL FOR VALVE SEAL $4.66 To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.85 IN STOCK
Photo Part No Description Price (each) Stock
938039 UPPER VALVE SPRING CAP $16.42 To Order
Photo Part No Description Price (each) Stock
840559 COMPL. FINGER-TAPPET $61.92 To Order
Photo Part No Description Price (each) Stock
879354 TAPPET ROLLER BEARING $34.12 To Order
Photo Part No Description Price (each) Stock
745652 LH CYLINDER BANK COIL SHIELD ASSEMBLY $214.87 To Order
745651 RH CYLINDER BANK COIL SHIELD ASSEMBLY $214.87 To Order
Photo Part No Description Price (each) Stock
797723 SCREW $0.38 To Order
View All

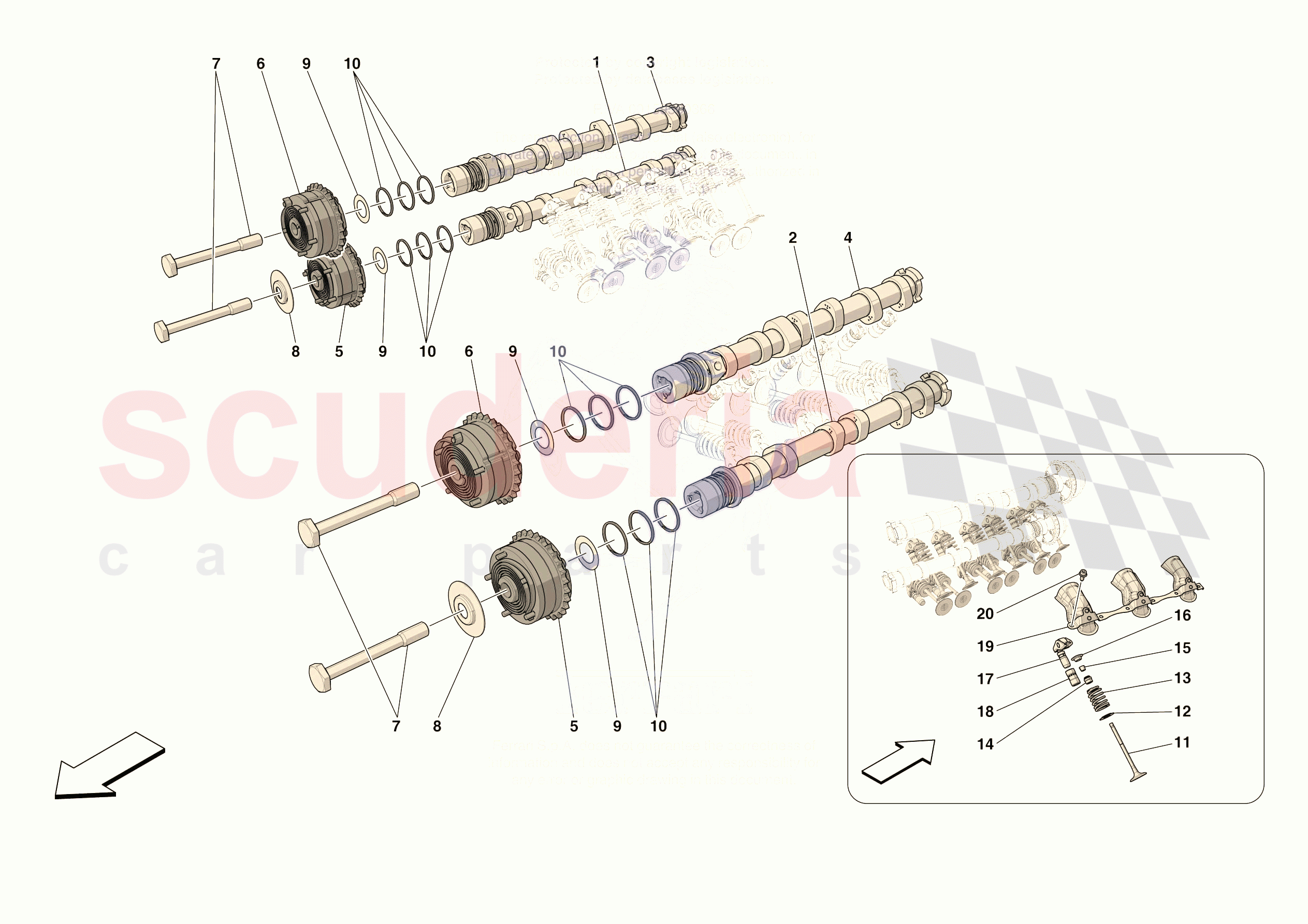

CYLINDER HEADS - TIMING of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 927969
RH INTAKE CAMSHAFT 		$419.18 1
0002 927970
LH INTAKE CAMSHAFT 		$419.18 1
0003 961460
RH EXHAUST CAMSHAFT 		$392.14 1
0004 961461
LH EXHAUST CAMSHAFT 		$392.14 1
0005 795894
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT 		$657.27 2
0006 795895
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT 		$657.27 2
0007 254892
SCREW
M14 X 1.5
IN STOCK 		$12.19 4
0008 296310
SPACER 		$21.48 2
0009 240559
DIAMOND COATED WASHER
IN STOCK 		$8.19 4
0010 246965
O-RING
Also included in engine gasket set
IN STOCK 		$11.22 12
0011 828771
INTAKE VALVE 		$36.65 12
0011 828769
EXHAUST VALVE 		$74.56 12
0012 925694
LOWER VALVE SPRING CAP 		$11.23 12
0012 925693
LOWER VALVE SPRING CAP 		$11.49 12
0013 821149
SPRING
Intake 		$17.68 24
0014 899547
OIL SEAL FOR VALVE SEAL
Also included in engine gasket set 		$4.66 24
0015 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.85 (5.6% off) 24
0016 938039
UPPER VALVE SPRING CAP 		$16.42 24
0017 840559
COMPL. FINGER-TAPPET 		$61.92 24
0018 879354
TAPPET ROLLER BEARING 		$34.12 6
0019 745652
LH CYLINDER BANK COIL SHIELD ASSEMBLY 		$214.87 1
0019 745651
RH CYLINDER BANK COIL SHIELD ASSEMBLY 		$214.87 1
0020 797723
SCREW
M5 X 12 		$0.38 12
