Cylinder Heads - Lh Head

Ferrari 296 GTS USA

Find Your Part

Ferrari 296 GTS USA - CYLINDER HEADS - LH HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
950362 LH CYLINDER/LH HEAD COVER ASSEMBLY $2,720.98 To Order
867211 LH CYLINDER/LH HEAD COVER ASSEMBLY $3,117.68 To Order
Photo Part No Description Price (each) Stock
868188 SCREW $0.49 To Order
Photo Part No Description Price (each) Stock
296075 WASHER 13 X 5.8 $1.13 IN STOCK
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $222.12 IN STOCK
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
899222 PLUG $8.01 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
899148 PLUG $6.16 To Order
Photo Part No Description Price (each) Stock
899147 PLUG $6.66 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
814799 STUD BOLT $9.85 To Order
Photo Part No Description Price (each) Stock
962415 GASKET $214.97 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
271125 NUT $6.33 To Order
Photo Part No Description Price (each) Stock
271129 WASHER $1.10 IN STOCK
Photo Part No Description Price (each) Stock
829568 CHAIN COOLING NOZZLE ASSEMBLY $55.62 To Order
Photo Part No Description Price (each) Stock
315493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
291078 THREADED PLUG $2.27 To Order
Photo Part No Description Price (each) Stock
14454381 O-RING $1.17 To Order
Photo Part No Description Price (each) Stock
935821 STUD BOLT $3.26 To Order
Photo Part No Description Price (each) Stock
342272 CHECK VALVE $12.00 To Order
Photo Part No Description Price (each) Stock
14450581 GASKET $4.30 To Order
View All

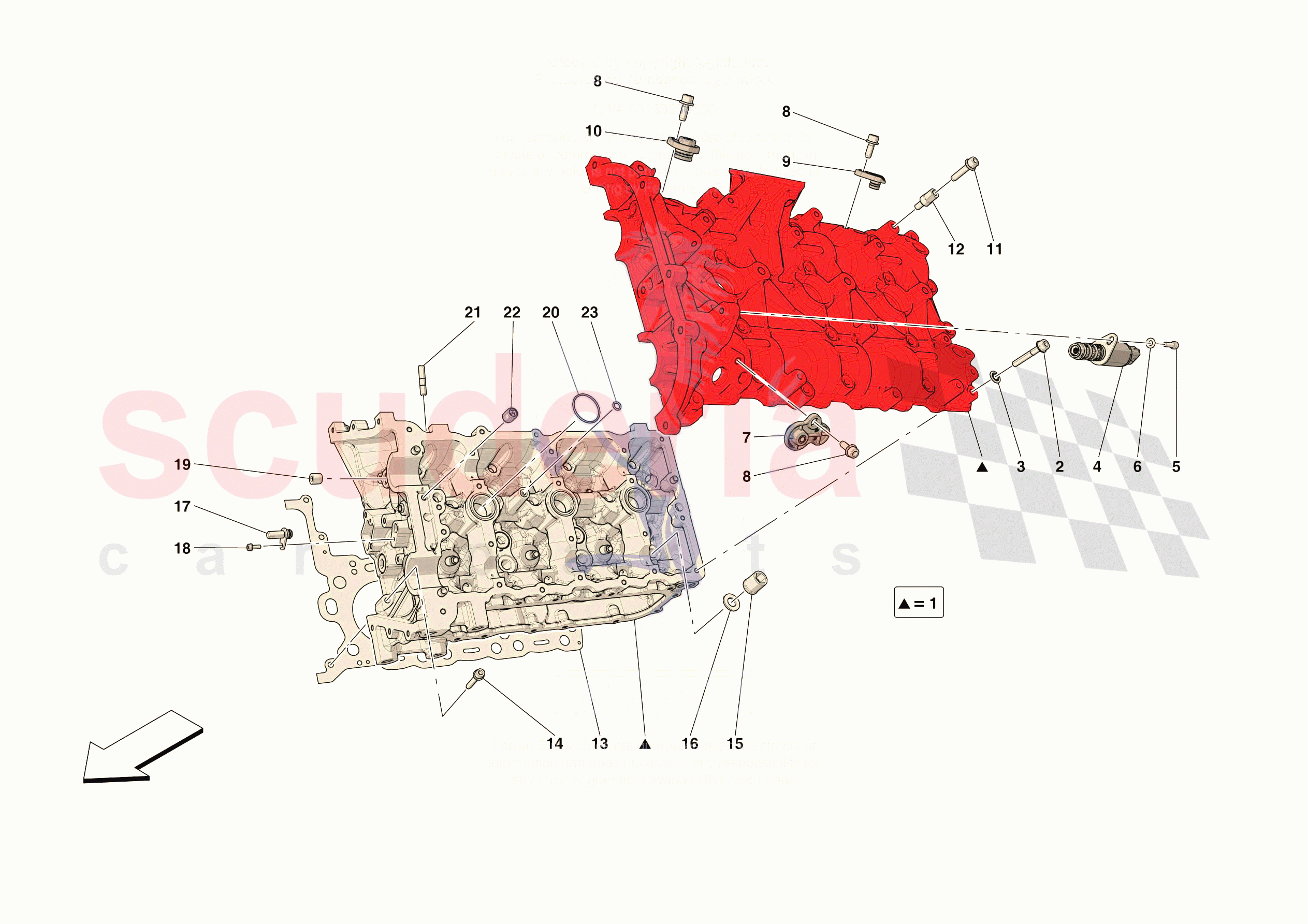

CYLINDER HEADS - LH HEAD of Ferrari Ferrari 296 GTS USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 950362
LH CYLINDER/LH HEAD COVER ASSEMBLY
Applies until depletion 		$2,720.98 1
0001 867211
LH CYLINDER/LH HEAD COVER ASSEMBLY
Applicable after depletion of 950362 		$3,117.68 1
0002 868188
SCREW 		$0.49 26
0003 296075
WASHER 13 X 5.8
IN STOCK 		$1.13 26
0004 801187
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$222.12 2
0005 14304124
SCREW
M5 X 16 		$0.14 (81.3% off) 2
0006 11181574
WASHER
IN STOCK 		$0.02 2
0007 899222
PLUG 		$8.01 1
0008 248334
SCREW
M6 X 16
IN STOCK 		$0.58 3
0009 899148
PLUG 		$6.16 1
0010 899147
PLUG 		$6.66 1
0011 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 2
0012 814799
STUD BOLT 		$9.85 3
0013 962415
GASKET
Also included in engine gasket set 		$214.97 1
0014 231622
SCREW
M6 X 35
IN STOCK 		$0.34 (32% off) 1
0015 271125
NUT 		$6.33 8
0016 271129
WASHER
IN STOCK 		$1.10 8
0017 829568
CHAIN COOLING NOZZLE ASSEMBLY 		$55.62 1
0018 315493
SCREW
M4 X 10 		$1.01 1
0019 291078
THREADED PLUG
M12 X 11 		$2.27 1
0020 14454381
O-RING
Also included in engine gasket set 		$1.17 3
0021 935821
STUD BOLT 		$3.26 6
0022 342272
CHECK VALVE 		$12.00 2
0023 14450581
GASKET
Also included in engine gasket set 		$4.30 1
