Dashboard - Trim -Applicable For Rhd-

Ferrari 296 GTB Europe RH

Find Your Part

Ferrari 296 GTB Europe RH - DASHBOARD - TRIM -APPLICABLE FOR RHD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
854336 COMPL. COVER BAG $7,878.95 To Order
916942 COMPL. COVER BAG $7,942.50 To Order
Photo Part No Description Price (each) Stock
778692 CENTRE UNDERDASHBOARD ELEMENT $6,296.54 To Order
816849 CENTRE UNDERDASHBOARD ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
778686 COMPL. RH LOWER PLUG Enquire To Order
811875 COMPL. RH LOWER PLUG $1,907.76 To Order
778518 COMPL. RH LOWER PLUG $1,787.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
742589 COMPL. LH LOWER PLUG Enquire To Order
742602 COMPL. LH LOWER PLUG $394.00 To Order
Photo Part No Description Price (each) Stock
778513 RH SPEAKER SURROUND $83.87 To Order
Photo Part No Description Price (each) Stock
778669 LH SPEAKER SURROUND $96.58 To Order
Photo Part No Description Price (each) Stock
778656 CENTRAL LOUDSPEAKER PLATE $136.56 To Order
Photo Part No Description Price (each) Stock
985406 GSM MICROPHONE INSULATION MESH $17.52 To Order
Photo Part No Description Price (each) Stock
87511200 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
778607 COMPL. DIFFUSER SURROUND $87.67 To Order
Photo Part No Description Price (each) Stock
778557 COMPL. DISPLAY MOUNT $597.35 To Order
916253 COMPL. DISPLAY MOUNT $4,259.13 To Order
783849 COMPL. DISPLAY MOUNT $4,330.30 To Order
Photo Part No Description Price (each) Stock
969314 VENT $292.32 To Order
Photo Part No Description Price (each) Stock
88822200 SCREW $0.60 IN STOCK
88822200 SCREW $0.60 IN STOCK
Photo Part No Description Price (each) Stock
917201 LH SIDE DISPLAY CURVED BRACKET $11.17 To Order
Photo Part No Description Price (each) Stock
890157 GRUB SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
970282 COMPL. LOWER STEERING COLUMN SHIELD $165.22 To Order
801103 COMPL. LOWER STEERING COLUMN SHIELD $228.77 To Order
Photo Part No Description Price (each) Stock
84001400 JOYSTICK PANEL $71.17 To Order
Photo Part No Description Price (each) Stock
970293 UPPER STEERING COLUMN SHIELD $120.72 To Order
Photo Part No Description Price (each) Stock
741790 COMPL. CLUSTER BRACKET $77.51 To Order
Photo Part No Description Price (each) Stock
970212 UPPER CLUSTER SHELL $83.87 To Order
743892 UPPER CLUSTER SHELL $2,126.38 To Order
70007702 UPPER CLUSTER SHELL Enquire To Order
Photo Part No Description Price (each) Stock
970161 COMPL. BROW $288.30 To Order
743860 COMPL. BROW $3,121.58 To Order
70007701 COMPL. BROW Enquire To Order
Photo Part No Description Price (each) Stock
970151 CLUSTER MOUNTING PANEL Enquire To Order
743775 CLUSTER MOUNTING PANEL $2,811.45 To Order
70007700 CLUSTER MOUNTING PANEL Enquire To Order
Photo Part No Description Price (each) Stock
970245 COMPL. RH CLUSTER CASTING $864.27 To Order
743786 COMPL. RH CLUSTER TRIM $3,101.24 To Order
70007704 COMPL. RH CLUSTER TRIM Enquire To Order
Photo Part No Description Price (each) Stock
970252 COMPL. LH CLUSTER CASTING $876.98 To Order
743776 COMPL. LH CLUSTER TRIM $3,374.50 To Order
70007705 COMPL. LH CLUSTER TRIM Enquire To Order
Photo Part No Description Price (each) Stock
969295 RH VENT $216.06 To Order
Photo Part No Description Price (each) Stock
969292 LH VENT $216.06 To Order
Photo Part No Description Price (each) Stock
778870 COMPL. LH SIDE CASTING $482.96 To Order
811941 COMPL. LH SIDE PLATE $1,793.37 To Order
70007707 COMPL. LH SIDE PLATE Enquire To Order
Photo Part No Description Price (each) Stock
742601 COMPL. RH SATELLITE PLUG $305.02 To Order
Photo Part No Description Price (each) Stock
778868 LH SATELLITE PLUG $6.47 To Order
Photo Part No Description Price (each) Stock
793413 DASHBOARD BADGE $190.63 To Order
Photo Part No Description Price (each) Stock
808368 VICS ANTENNA BASE $58.44 To Order
Photo Part No Description Price (each) Stock
808364 5.8 GHz ANTENNA BASE $43.19 To Order
Photo Part No Description Price (each) Stock
888781 COMPL. SUN VISOR $597.35 To Order
888782 COMPL. SUN VISOR $3,178.77 To Order
View All

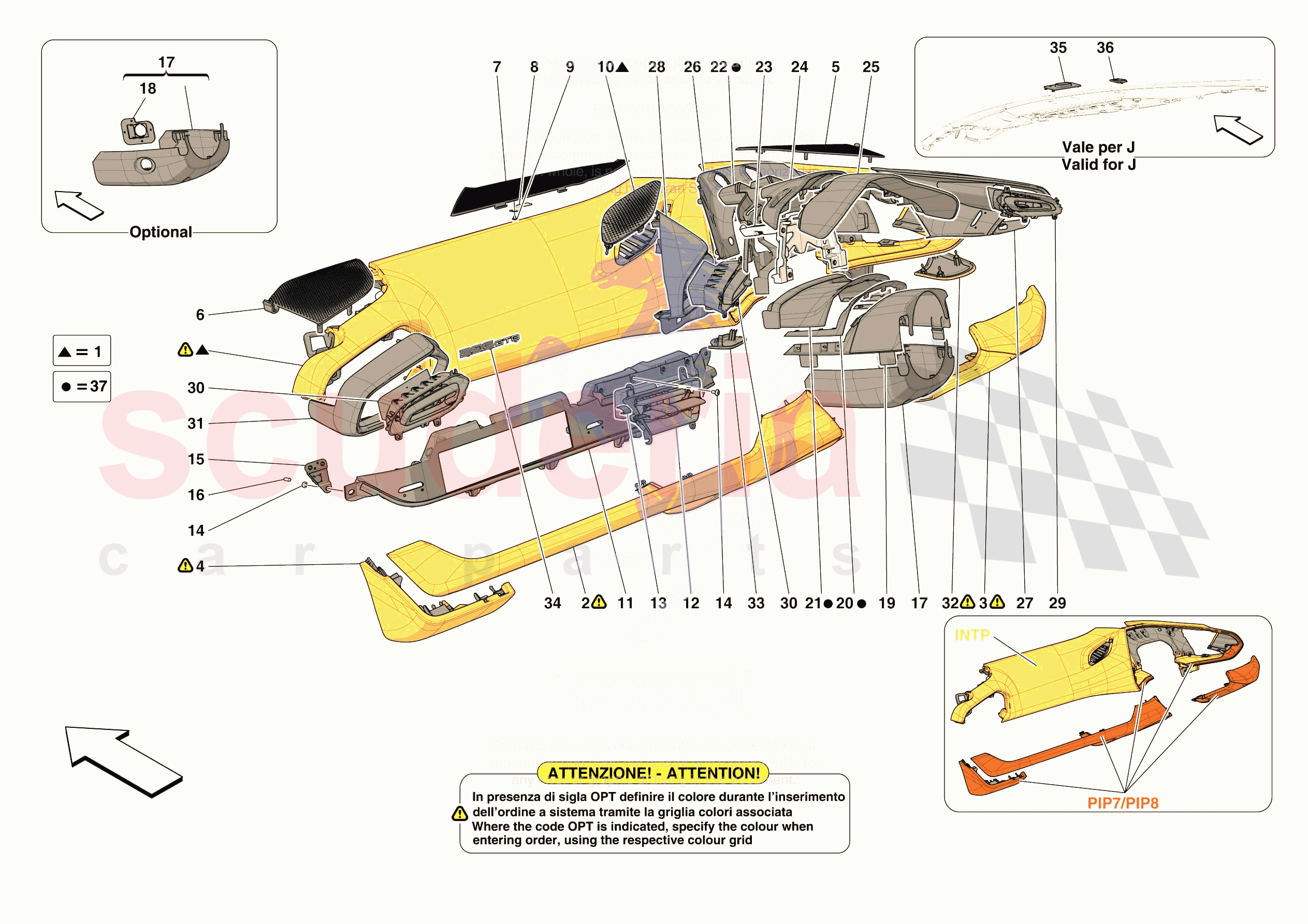

DASHBOARD - TRIM -APPLICABLE FOR RHD- of Ferrari Ferrari 296 GTB Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 854336
COMPL. COVER BAG
INTP for colour selection of upper part of dashboard - PIP8 for colour selection of Alcantara piping; INTP- -PIP8- -STC1- -STC2 		$7,878.95 1
0001 916942
COMPL. COVER BAG
INTP for colour selection of upper part of dashboard - PIP7 for colour selection of leather piping; INTP- -PIP7- -STC1- -STC2 		$7,942.50 1
0002 778692
CENTRE UNDERDASHBOARD ELEMENT
Alcantara - STC1 - STC2; PIP8 		$6,296.54 1
0002 816849
CENTRE UNDERDASHBOARD ELEMENT
Leather - STC1 - STC2; PIP7 		- 1 Enquire
0003 778686
COMPL. RH LOWER PLUG
Alcantara - STC1 - STC2; PIP8 		- 1 Enquire
0003 811875
COMPL. RH LOWER PLUG
Leather - STC1 - STC2; PIP7 		$1,907.76 1
0003 778518
COMPL. RH LOWER PLUG
Alcantara - Applicable for full electric seats or full electric seats with ventilation - STC1 - STC2; PIP8 		$1,787.02 1
0003 811872
COMPL. RH LOWER PLUG
Leather - Applicable for full electric seats or full electric seats with ventilation - STC1 - STC2; PIP7 		- 1 Enquire
0004 742589
COMPL. LH LOWER PLUG
Alcantara; PIP8 		- 1 Enquire
0004 742602
COMPL. LH LOWER PLUG
Leather; PIP7 		$394.00 1
0005 778513
RH SPEAKER SURROUND 		$83.87 1
0006 778669
LH SPEAKER SURROUND 		$96.58 1
0007 778656
CENTRAL LOUDSPEAKER PLATE 		$136.56 1
0008 985406
GSM MICROPHONE INSULATION MESH
Applicable for E-CALL system 		$17.52 1
0009 87511200
SCREW
Applicable for E-CALL system; M4 X 6 		$0.35 1
0010 778607
COMPL. DIFFUSER SURROUND 		$87.67 1
0011 778557
COMPL. DISPLAY MOUNT
Gloss black 		$597.35 1
0011 916253
COMPL. DISPLAY MOUNT
Gloss finish carbon version 		$4,259.13 1
0011 783849
COMPL. DISPLAY MOUNT
Matte finish carbon version 		$4,330.30 1
0012 969314
VENT 		$292.32 1
0014 88822200
SCREW
M4 X 10
IN STOCK 		$0.60 4
0014 88822200
SCREW
M4 X 10
IN STOCK 		$0.60 7
0015 917201
LH SIDE DISPLAY CURVED BRACKET
Applicable for passenger display surround in gloss or matte finish carbon 		$11.17 1
0016 890157
GRUB SCREW 		$1.18 2
0017 970282
COMPL. LOWER STEERING COLUMN SHIELD 		$165.22 1
0017 801103
COMPL. LOWER STEERING COLUMN SHIELD
Applicable for full electric seats or full electric seats with ventilation 		$228.77 1
0018 84001400
JOYSTICK PANEL
Applicable for full electric seats or full electric seats with ventilation 		$71.17 1
0019 970293
UPPER STEERING COLUMN SHIELD 		$120.72 1
0023 741790
COMPL. CLUSTER BRACKET 		$77.51 1
0024 970212
UPPER CLUSTER SHELL
Matte black 		$83.87 1
0024 743892
UPPER CLUSTER SHELL
Matte finish carbon version 		$2,126.38 1
0024 70007702
UPPER CLUSTER SHELL
Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0025 970161
COMPL. BROW
Matte black 		$288.30 1
0025 743860
COMPL. BROW
Matte finish carbon version 		$3,121.58 1
0025 70007701
COMPL. BROW
Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0026 970151
CLUSTER MOUNTING PANEL
Matte Canna di Fucile grey 		- 1 Enquire
0026 743775
CLUSTER MOUNTING PANEL
Matte finish carbon version 		$2,811.45 1
0026 70007700
CLUSTER MOUNTING PANEL
Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0027 970245
COMPL. RH CLUSTER CASTING
Matte Canna di Fucile grey 		$864.27 1
0027 743786
COMPL. RH CLUSTER TRIM
Matte finish carbon version 		$3,101.24 1
0027 70007704
COMPL. RH CLUSTER TRIM
Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0028 970252
COMPL. LH CLUSTER CASTING
Matte Canna di Fucile grey 		$876.98 1
0028 743776
COMPL. LH CLUSTER TRIM
Matte finish carbon version 		$3,374.50 1
0028 70007705
COMPL. LH CLUSTER TRIM
Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0029 969295
RH VENT 		$216.06 2
0030 969292
LH VENT 		$216.06 2
0031 778870
COMPL. LH SIDE CASTING
Matte Canna di Fucile grey 		$482.96 1
0031 811941
COMPL. LH SIDE PLATE
Matte finish carbon version 		$1,793.37 1
0031 70007707
COMPL. LH SIDE PLATE
Version in coloured matte finish carbon - CICM - CICM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0032 742601
COMPL. RH SATELLITE PLUG
Leather; INTP 		$305.02 1
0033 778868
LH SATELLITE PLUG 		$6.47 1
0034 793413
DASHBOARD BADGE 		$190.63 1
0035 808368
VICS ANTENNA BASE 		$58.44 1
0036 808364
5.8 GHz ANTENNA BASE 		$43.19 1
0037 888781
COMPL. SUN VISOR
Matte black 		$597.35 1
0037 888782
COMPL. SUN VISOR
Matte finish carbon version 		$3,178.77 1
