Ferrari 296 GTB Europe RH - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
966512 REAR STRUCTURAL UNDERTRAY $252.68 To Order
Photo Part No Description Price (each) Stock
985966691 COMPL. LOWER GEARBOX MOUNTING CROSS MEMBER $720.18 To Order
Photo Part No Description Price (each) Stock
16288421 SCREW $6.40 To Order
Photo Part No Description Price (each) Stock
985966623 COMPL. RH ENGINE STRUT MOUNTING $4,659.79 To Order
Photo Part No Description Price (each) Stock
985966559 COMPL. LH ENGINE STRUT MOUNTING $4,340.12 To Order
Photo Part No Description Price (each) Stock
16297934 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
985966779 COMPL. RH REAR SHOCK TOWER CASTING $22,279.37 To Order
Photo Part No Description Price (each) Stock
985966737 COMPL. LH REAR SHOCK TOWER CASTING $21,205.39 To Order
Photo Part No Description Price (each) Stock
985966674 COMPL. RH CASTING $5,201.84 To Order
Photo Part No Description Price (each) Stock
985966523 COMPL. LH CASTING $5,474.76 To Order
Photo Part No Description Price (each) Stock
985966651 RH OUTER UPPER REAR DIAGONAL BRACE $922.35 To Order
Photo Part No Description Price (each) Stock
985966759 LH OUTER UPPER REAR DIAGONAL BRACE $985.52 To Order
Photo Part No Description Price (each) Stock
985966580 RH REAR LATERAL DIAGONAL BRACE $922.35 To Order
Photo Part No Description Price (each) Stock
985966715 LH REAR LATERAL DIAGONAL BRACE $960.24 To Order
Photo Part No Description Price (each) Stock
985966605 COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE $644.37 To Order
Photo Part No Description Price (each) Stock
985966488 COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE $1,048.69 To Order
Photo Part No Description Price (each) Stock
956717 RH REAR TRELLIS FRAME MOUNTING BRACKET $97.28 To Order
Photo Part No Description Price (each) Stock
960147 LH REAR TRELLIS FRAME MOUNTING BRACKET $176.87 To Order
Photo Part No Description Price (each) Stock
972815 COMPL. UPPER REAR MOUNTING BRACKET OF OIL TANK $36.63 To Order
Photo Part No Description Price (each) Stock
16288474 SCREW $1.10 To Order
Photo Part No Description Price (each) Stock
966687 OIL TANK FASTENER BRACKET $36.63 To Order
Photo Part No Description Price (each) Stock
968400 RH REAR BRAKE HOSE BRACKET $96.01 To Order
Photo Part No Description Price (each) Stock
968399 LH REAR BRAKE HOSE BRACKET $96.01 To Order
Photo Part No Description Price (each) Stock
985966688 RH TANK GUARD BRACKET $682.28 To Order
Photo Part No Description Price (each) Stock
985966650 LH TANK GUARD BRACKET $682.28 To Order
Photo Part No Description Price (each) Stock
966592 COMPL. LOWER FRONT OIL TANK BRACKET $36.63 To Order
Photo Part No Description Price (each) Stock
830173 COMPL. HV CABLE FASTENER BRACKET $28.65 To Order
Photo Part No Description Price (each) Stock
14639591 RIVET $1.34 To Order
Photo Part No Description Price (each) Stock
811998 SCREW $9.26 To Order
Photo Part No Description Price (each) Stock
239871 SCREW $2.19 To Order
Photo Part No Description Price (each) Stock
985966690 REAR BUMPER CROSS MEMBER $2,053.18 To Order
Photo Part No Description Price (each) Stock
985966724 REAR RH STRUT $4,004.03 To Order
Photo Part No Description Price (each) Stock
985966571 LH REAR SPAR $4,004.03 To Order
Photo Part No Description Price (each) Stock
956906 COMPL. RH INVERTER TRELLIS FRAME MOUNTING BRACKET $66.95 To Order
Photo Part No Description Price (each) Stock
956658 COMPL. LH INVERTER TRELLIS FRAME MOUNTING BRACKET $66.95 To Order
Photo Part No Description Price (each) Stock
204430 RIVET $1.26 To Order
Photo Part No Description Price (each) Stock
985966778 COMPL. GEARBOX CROSS MEMBER CASTING $5,641.53 To Order
Photo Part No Description Price (each) Stock
985966611 COMPL. BATTERY MOUNT CASTING $3,530.21 To Order
Photo Part No Description Price (each) Stock
741495 SCREW $2.61 To Order
Photo Part No Description Price (each) Stock
741471 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
101632 SCREW $45.48 To Order
Photo Part No Description Price (each) Stock
12646824 WASHER $0.09 IN STOCK
Photo Part No Description Price (each) Stock
985966511 REAR SUBFRAME $30,819.40 To Order
Photo Part No Description Price (each) Stock
801266 SCREW $6.40 To Order
Photo Part No Description Price (each) Stock
16289021 SCREW $6.40 To Order
Photo Part No Description Price (each) Stock
966508 COMPL. BRACKET $23.98 To Order
Photo Part No Description Price (each) Stock
979541 COMPL. INERTIA SWITCH FASTENER BRACKET $48.00 To Order
791248 COMPL. INERTIA SWITCH FASTENER BRACKET $64.42 To Order
Photo Part No Description Price (each) Stock
966684 RH BRACKET $39.14 To Order
Photo Part No Description Price (each) Stock
966492 LH BRACKET $50.53 To Order
View All

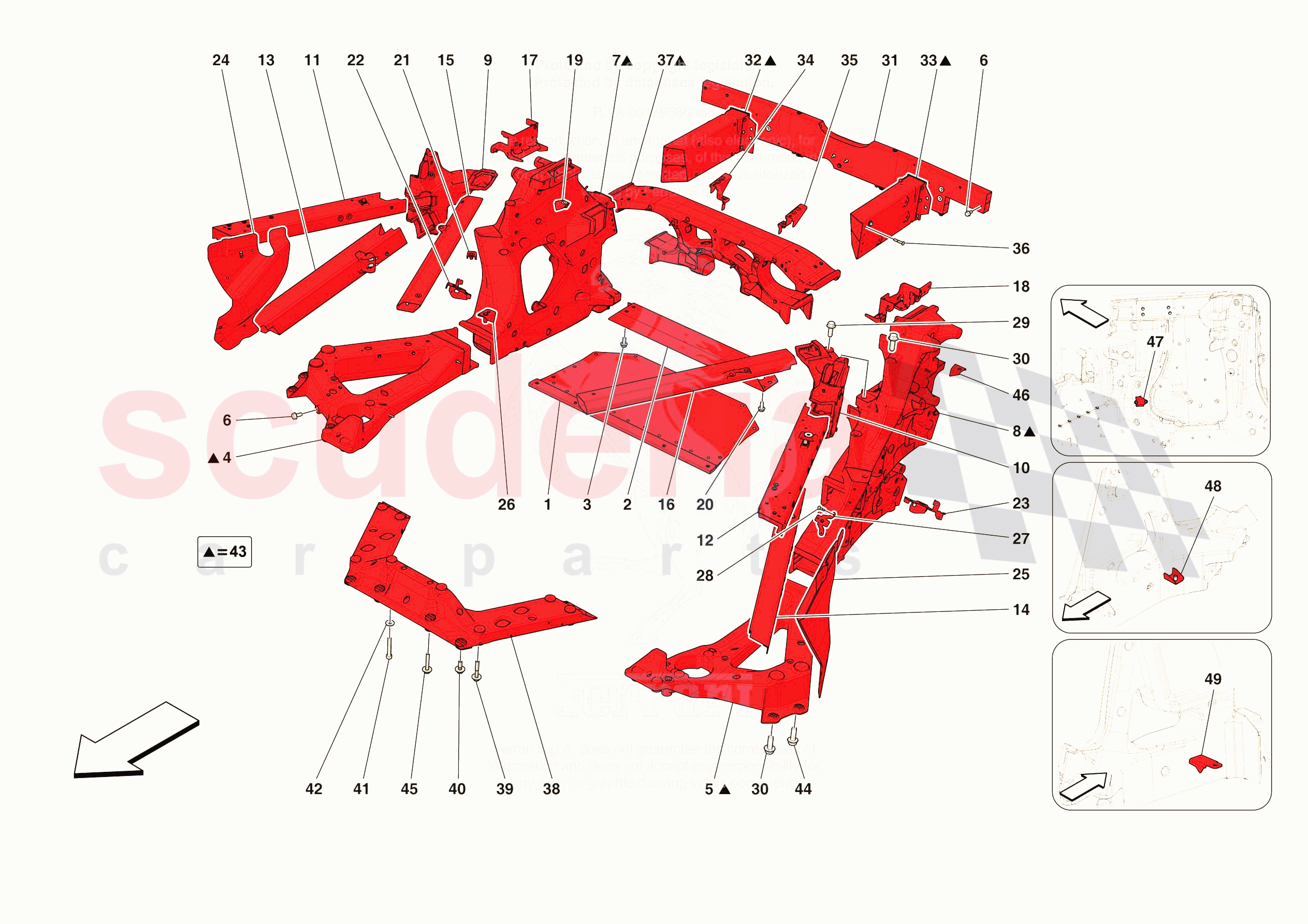

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari 296 GTB Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 966512
REAR STRUCTURAL UNDERTRAY
Request ASM authorisation 		$252.68 1
0002 985966691
COMPL. LOWER GEARBOX MOUNTING CROSS MEMBER
Request ASM authorisation 		$720.18 1
0003 16288421
SCREW
M10 X 1.25 X 25 		$6.40 4
0004 985966623
COMPL. RH ENGINE STRUT MOUNTING
Request ASM authorisation 		$4,659.79 1
0005 985966559
COMPL. LH ENGINE STRUT MOUNTING
Request ASM authorisation 		$4,340.12 1
0006 16297934
SCREW
M8 X 18 		$0.58 19
0007 985966779
COMPL. RH REAR SHOCK TOWER CASTING
Request ASM authorisation - For vehicles up to Ass.ly No. 300888 also order rigid battery vent pipe 55003858 ref.9 tab.195 		$22,279.37 1
0008 985966737
COMPL. LH REAR SHOCK TOWER CASTING
Request ASM authorisation 		$21,205.39 1
0009 985966674
COMPL. RH CASTING
Request ASM authorisation 		$5,201.84 1
0010 985966523
COMPL. LH CASTING
Request ASM authorisation 		$5,474.76 1
0011 985966651
RH OUTER UPPER REAR DIAGONAL BRACE
Request ASM authorisation 		$922.35 1
0012 985966759
LH OUTER UPPER REAR DIAGONAL BRACE
Request ASM authorisation 		$985.52 1
0013 985966580
RH REAR LATERAL DIAGONAL BRACE
Request ASM authorisation 		$922.35 1
0014 985966715
LH REAR LATERAL DIAGONAL BRACE
Request ASM authorisation 		$960.24 1
0015 985966605
COMPL. RH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$644.37 1
0016 985966488
COMPL. LH INTERNAL UPPER ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$1,048.69 1
0017 956717
RH REAR TRELLIS FRAME MOUNTING BRACKET
Request ASM authorisation 		$97.28 1
0018 960147
LH REAR TRELLIS FRAME MOUNTING BRACKET
Request ASM authorisation 		$176.87 1
0019 972815
COMPL. UPPER REAR MOUNTING BRACKET OF OIL TANK
Request ASM authorisation 		$36.63 1
0020 16288474
SCREW
M10 X 1.25 X 25 		$1.10 8
0021 966687
OIL TANK FASTENER BRACKET
Request ASM authorisation 		$36.63 1
0022 968400
RH REAR BRAKE HOSE BRACKET
Request ASM authorisation 		$96.01 1
0023 968399
LH REAR BRAKE HOSE BRACKET
Request ASM authorisation 		$96.01 1
0024 985966688
RH TANK GUARD BRACKET
Request ASM authorisation 		$682.28 1
0025 985966650
LH TANK GUARD BRACKET
Request ASM authorisation 		$682.28 1
0026 966592
COMPL. LOWER FRONT OIL TANK BRACKET
Request ASM authorisation 		$36.63 1
0027 830173
COMPL. HV CABLE FASTENER BRACKET
Request ASM authorisation 		$28.65 1
0028 14639591
RIVET 		$1.34 2
0029 811998
SCREW
M14 X 1.5 X 40 		$9.26 2
0030 239871
SCREW
M12 X 1.75 X 35 		$2.19 12
0031 985966690
REAR BUMPER CROSS MEMBER
Request ASM authorisation 		$2,053.18 1
0032 985966724
REAR RH STRUT
Request ASM authorisation 		$4,004.03 1
0033 985966571
LH REAR SPAR
Request ASM authorisation 		$4,004.03 1
0034 956906
COMPL. RH INVERTER TRELLIS FRAME MOUNTING BRACKET
Request ASM authorisation 		$66.95 1
0035 956658
COMPL. LH INVERTER TRELLIS FRAME MOUNTING BRACKET
Request ASM authorisation 		$66.95 1
0036 204430
RIVET 		$1.26 28
0037 985966778
COMPL. GEARBOX CROSS MEMBER CASTING
Request ASM authorisation 		$5,641.53 1
0038 985966611
COMPL. BATTERY MOUNT CASTING
Request ASM authorisation 		$3,530.21 1
0039 741495
SCREW
M10 X 1.25 X 65 		$2.61 8
0040 741471
SCREW
M10 X 1.25 X 35 		$1.94 6
0041 101632
SCREW
M10 X 1.25 X 65 		$45.48 (3.9% off) 2
0042 12646824
WASHER
IN STOCK 		$0.09 (76.3% off) 2
0043 985966511
REAR SUBFRAME
Request ASM authorisation 		$30,819.40 1
0044 801266
SCREW
M12 X 1.75 X 35 		$6.40 4
0045 16289021
SCREW
M10 X 1.25 X 55 		$6.40 4
0046 966508
COMPL. BRACKET
Request ASM authorisation 		$23.98 1
0047 979541
COMPL. INERTIA SWITCH FASTENER BRACKET
Request ASM authorisation 		$48.00 1
0047 791248
COMPL. INERTIA SWITCH FASTENER BRACKET
Request ASM authorisation 		$64.42 1
0048 966684
RH BRACKET
Request ASM authorisation 		$39.14 1
0049 966492
LH BRACKET
Request ASM authorisation 		$50.53 1
