Ferrari 12Cilindri - INJECTOR PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
330107 COMPL. FRONT RH FUEL PIPE Enquire To Order
794982 COMPL. FRONT RH FUEL PIPE $1,837.00 To Order
Photo Part No Description Price (each) Stock
321300 COMPL. FRONT LH FUEL PIPE Enquire To Order
794980 COMPL. FRONT LH FUEL PIPE $1,837.00 To Order
Photo Part No Description Price (each) Stock
329777 COMPL. REAR FUEL PIPE Enquire To Order
794983 COMPL. REAR FUEL PIPE $1,536.10 To Order
Photo Part No Description Price (each) Stock
14306034 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
334268 SPACER $5.73 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
919365 COMPL. BRACKET $104.91 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
324524 STUD BOLT $8.97 To Order
Photo Part No Description Price (each) Stock
334140 FUEL PIPE CONNECTING FRONT AND REAR RAILS $123.88 To Order
Photo Part No Description Price (each) Stock
885857 INJECTOR WIRING HARNESS $134.32 To Order
Photo Part No Description Price (each) Stock
885858 INJECTOR WIRING HARNESS $121.35 To Order
55013616 INJECTOR WIRING HARNESS $146.40 To Order
Photo Part No Description Price (each) Stock
885859 INJECTOR WIRING HARNESS $115.04 To Order
Photo Part No Description Price (each) Stock
885860 INJECTOR WIRING HARNESS $120.08 To Order
55008671 INJECTOR WIRING HARNESS $120.08 To Order
Photo Part No Description Price (each) Stock
339179 ELECTRO-INJECTOR $214.92 To Order
Photo Part No Description Price (each) Stock
70007598 SEAL KIT $83.43 To Order
View All

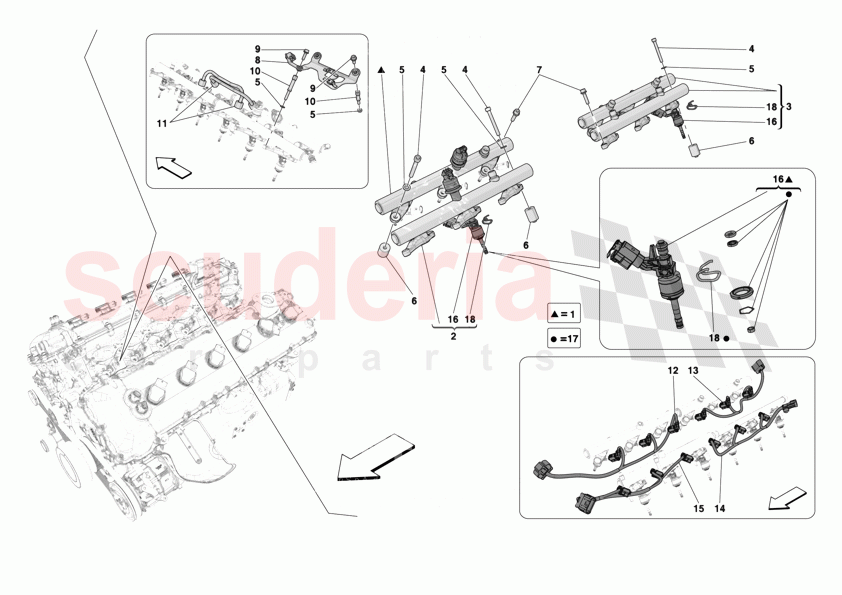

INJECTOR PIPES of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 330107
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 11 		- 1 Enquire
1 794982
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 11 		$1,837.00 1
2 321300
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 11 		- 1 Enquire
2 794980
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 11 		$1,837.00 1
3 329777
COMPL. REAR FUEL PIPE
Also order pipe ref. 11 and pipe ref. 8 in table 23 for RH cylinder bank or ref. 9 for LH cylinder bank 		- 2 Enquire
3 794983
COMPL. REAR FUEL PIPE
Also order pipe ref. 11 and pipe ref. 8 in table 23 for RH cylinder bank or ref. 9 for LH cylinder bank 		$1,536.10 2
4 14306034
SCREW
M6 X 50 		$0.47 (77.6% off) 12
5 11197774
WASHER
IN STOCK 		$0.06 (80% off) 15
6 334268
SPACER 		$5.73 12
7 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 9
8 919365
COMPL. BRACKET 		$104.91 1
9 231619
SCREW
M6 X 20
IN STOCK 		$0.29 3
10 324524
STUD BOLT
M6 X 23 		$8.97 3
11 334140
FUEL PIPE CONNECTING FRONT AND REAR RAILS 		$123.88 2
12 885857
INJECTOR WIRING HARNESS
Applicable for 1, 2, 3 injectors 		$134.32 1
13 885858
INJECTOR WIRING HARNESS
Applicable for 4, 5, 6 injectors; Not applicable for: NIRL 		$121.35 1
13 55013616
INJECTOR WIRING HARNESS
Applicable for 4, 5, 6 injectors 		$146.40 1
14 885859
INJECTOR WIRING HARNESS
Applicable for 7, 8, 9 injectors 		$115.04 1
15 885860
INJECTOR WIRING HARNESS
Applicable for 10, 11, 12 injectors; Not applicable for: NIRL 		$120.08 1
15 55008671
INJECTOR WIRING HARNESS
Applicable for 10, 11, 12 injectors 		$120.08 1
16 339179
ELECTRO-INJECTOR 		$214.92 12
17 70007598
SEAL KIT
Applicable for 3 injectors 		$83.43 4
