Ferrari 12Cilindri - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
55000967 INJECTION CABLE $3,809.55 To Order
Photo Part No Description Price (each) Stock
840894 MANIFOLD WIRING HARNESS $90.23 To Order
Photo Part No Description Price (each) Stock
840937 DISCONNECTOR FASTENER BRACKET $19.31 To Order
Photo Part No Description Price (each) Stock
306938 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
907468 COMPL. MOUNTING BRACKET $42.53 To Order
Photo Part No Description Price (each) Stock
840897 INJECTION CABLE FASTENER BRACKET $19.31 To Order
Photo Part No Description Price (each) Stock
840921 INJECTION CABLE FASTENER BRACKET $18.03 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
341763 CABLE FASTENER BRACKET $21.91 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
325831 WIRING HARNESS MOUNTING BRACKET $16.74 To Order
Photo Part No Description Price (each) Stock
206739 CLAMP $7.91 To Order
Photo Part No Description Price (each) Stock
763310 RH BRACKET $42.53 To Order
983986 RH BRACKET $141.79 To Order
Photo Part No Description Price (each) Stock
948690 LH BRACKET $39.94 To Order
983991 LH BRACKET $141.79 To Order
Photo Part No Description Price (each) Stock
868790 COMPL. INJECTION CABLE FASTENER BRACKET $25.76 To Order
Photo Part No Description Price (each) Stock
55001018 SERVICES CABLE Enquire To Order
55060165 SERVICES CABLE $519.25 To Order
Photo Part No Description Price (each) Stock
791668 COMPL. CABLE MOUNTING BRACKET $46.39 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
873636 CABLE MOUNTING BRACKET $25.76 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.14 To Order
Photo Part No Description Price (each) Stock
869198 ANCILLARY CABLE FASTENER BRACKET $23.19 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
231627 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
796339 COMPL. ANCILLARIES CABLE MOUNTING BRACKET $20.61 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
947783 COMPL. ANCILLARIES CABLE FASTENER BRACKET $45.11 To Order
Photo Part No Description Price (each) Stock
949075 LH HEAD ANCILLARIES CABLE FASTENER BRACKET $32.21 To Order
Photo Part No Description Price (each) Stock
913014 ANCILLARIES CABLE LOCATOR BRACKET $42.53 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.14 To Order
Photo Part No Description Price (each) Stock
868792 COMPL. INJECTION CABLE FASTENER BRACKET $25.76 To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
View All

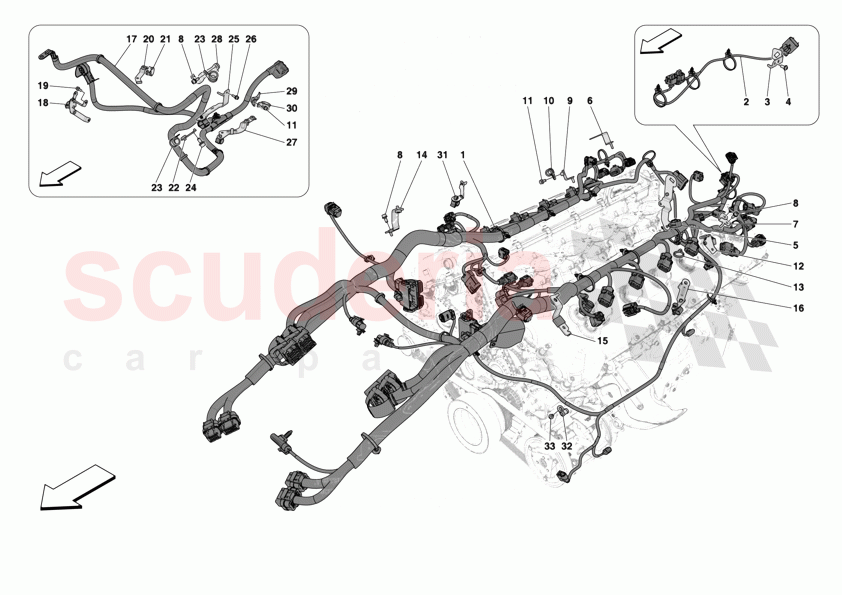

ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 55000967
INJECTION CABLE 		$3,809.55 1
2 840894
MANIFOLD WIRING HARNESS 		$90.23 1
3 840937
DISCONNECTOR FASTENER BRACKET 		$19.31 1
4 306938
SCREW
M6 X 14 		$0.35 1
5 907468
COMPL. MOUNTING BRACKET 		$42.53 1
6 840897
INJECTION CABLE FASTENER BRACKET 		$19.31 1
7 840921
INJECTION CABLE FASTENER BRACKET 		$18.03 2
8 248334
SCREW
M6 X 14
IN STOCK 		$0.59 12
9 341763
CABLE FASTENER BRACKET 		$21.91 1
10 10441390
BRACKET WITH SHEATH
D. 12
IN STOCK 		$0.54 1
11 248334
SCREW
M6 X 12
IN STOCK 		$0.59 8
12 325831
WIRING HARNESS MOUNTING BRACKET 		$16.74 1
13 206739
CLAMP 		$7.91 1
14 763310
RH BRACKET
Not for Taiwan and Korea 		$42.53 1
14 983986
RH BRACKET
For EU-RHD market, applicable for Taiwan submarket only - For USA LIGHT market, applicable for Korea submarket only; Applicable for: EU-GS, USA LIGHT 		$141.79 1
15 948690
LH BRACKET
Not for Taiwan and Korea 		$39.94 1
15 983991
LH BRACKET
For EU-RHD market, applicable for Taiwan submarket only - For USA LIGHT market, applicable for Korea submarket only; Applicable for: EU-GS, USA LIGHT 		$141.79 1
16 868790
COMPL. INJECTION CABLE FASTENER BRACKET 		$25.76 1
17 55001018
SERVICES CABLE 		- 1 Enquire
17 55060165
SERVICES CABLE 		$519.25 1
18 791668
COMPL. CABLE MOUNTING BRACKET 		$46.39 1
19 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
20 873636
CABLE MOUNTING BRACKET 		$25.76 1
21 320600
CLIP 		$2.14 1
22 869198
ANCILLARY CABLE FASTENER BRACKET 		$23.19 1
23 10441590
BRACKET WITH SHEATH
IN STOCK 		$0.52 4
24 231627
SCREW
M8 X 16
IN STOCK 		$0.57 (18.6% off) 1
25 796339
COMPL. ANCILLARIES CABLE MOUNTING BRACKET 		$20.61 1
26 248334
SCREW
M6 X 16
IN STOCK 		$0.59 1
27 947783
COMPL. ANCILLARIES CABLE FASTENER BRACKET 		$45.11 1
28 949075
LH HEAD ANCILLARIES CABLE FASTENER BRACKET 		$32.21 1
29 913014
ANCILLARIES CABLE LOCATOR BRACKET 		$42.53 1
30 320600
CLIP 		$2.14 1
31 868792
COMPL. INJECTION CABLE FASTENER BRACKET 		$25.76 1
32 10441490
BRACKET WITH SHEATH
IN STOCK 		$0.52 1
33 11566224
SCREW
M5 X 14
ARRIVING SOON 		$0.34 1
