Bonnet

Bentley New Flying Spur (2020-2024)

Illustration Number: 823010

Find Your Part

Bentley New Flying Spur (2020-2024) - Bonnet (823010)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3SE853194D Decorative trim additionally to be used items: $261.33 To Order
3SE853194D Decorative trim additionally to be used items: $261.33 To Order
3SE853194D Decorative trim additionally to be used items: $261.33 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3SE823031D Bonnet $9,320.45 To Order
3SE823031D Bonnet $9,320.45 To Order
Photo Part No Description Price (each) Stock
3SE823259A striker plate for lid $38.42 To Order
Photo Part No Description Price (each) Stock
3SE823260A striker plate for lid $38.42 To Order
Photo Part No Description Price (each) Stock
WHT001308 cap nut, self-locking $3.58 To Order
Photo Part No Description Price (each) Stock
3SE823359 Gas strut $65.57 IN STOCK
Photo Part No Description Price (each) Stock
3SE823295A Bonnet hinge $845.56 To Order
3SE823296A Bonnet hinge $845.56 To Order
Photo Part No Description Price (each) Stock
N91205601 Hexagon bolt D >> - 31.07.2024 $1.45 To Order
N91205602 Hexagon collared bolt with multi-point socket head (duo) D - 01.08.2024>> $1.71 To Order
Photo Part No Description Price (each) Stock
N90761103 Hexagon collar nut self-locking $1.36 To Order
Photo Part No Description Price (each) Stock
3SA823823 Actuator D >> - 18.12.2022 $181.05 To Order
3SA823823A Actuator D - 19.12.2022>> $181.05 To Order
Photo Part No Description Price (each) Stock
N10158605 bolt,hex.hd.with shoul.(combi) $0.86 To Order
Photo Part No Description Price (each) Stock
971823611 hinge bracket $28.68 To Order
971823612 hinge bracket $28.68 To Order
Photo Part No Description Price (each) Stock
3D0971830F bracket for connector housing flat connector housing For hole/material thickness: $10.44 To Order
Photo Part No Description Price (each) Stock
3SE821169A Hinge cover $47.13 To Order
3SE821170A Hinge cover $47.13 To Order
Photo Part No Description Price (each) Stock
971823737 seal for water box $57.64 To Order
Photo Part No Description Price (each) Stock
3SE807397D cover for bonnet lock $218.63 To Order
3SE807397D cover for bonnet lock $218.63 To Order
Photo Part No Description Price (each) Stock
N91150301 Bungs $0.49 IN STOCK
Photo Part No Description Price (each) Stock
971823633 Bracket $32.66 To Order
Photo Part No Description Price (each) Stock
N91096701 Oval hexagon socket head bolt $0.86 IN STOCK
Photo Part No Description Price (each) Stock
971823533B release lever Enquire To Order
Photo Part No Description Price (each) Stock
3SD823543B Bowden cable $36.20 To Order
Photo Part No Description Price (each) Stock
N90681301 bracket for corrugated pipe $0.87 To Order
Photo Part No Description Price (each) Stock
3SE823531 Bowden cable $33.33 To Order
Photo Part No Description Price (each) Stock
3W0955125 Clip $2.35 To Order
Photo Part No Description Price (each) Stock
3SD823595 clip for cable $19.34 To Order
Photo Part No Description Price (each) Stock
3SE823532 Bowden cable $33.33 To Order
Photo Part No Description Price (each) Stock
7L6971880 Cable holder $1.01 To Order
Photo Part No Description Price (each) Stock
3SE805359 Support plate $29.58 To Order
Photo Part No Description Price (each) Stock
3SE805360 Support plate $29.58 To Order
Photo Part No Description Price (each) Stock
N10725401 Hexagon socket head collared bolt, thread forming $0.94 To Order
Photo Part No Description Price (each) Stock
3SA823509 latch $95.65 To Order
Photo Part No Description Price (each) Stock
N90887704 hex. nut $1.21 To Order
Photo Part No Description Price (each) Stock
3SE823529A Release element $108.88 To Order
3SE823529A Release element $108.88 To Order
Photo Part No Description Price (each) Stock
3C8971850 Cable ties toothed quadrant $0.51 To Order
Photo Part No Description Price (each) Stock
5M0971838A cable tie with terminal socket $1.53 To Order
Photo Part No Description Price (each) Stock
N91074201 Hexagon socket head bolt $0.77 To Order
Photo Part No Description Price (each) Stock
WHT009962 Clamping washer $0.80 To Order
WHT009962 Clamping washer $0.80 To Order
View All

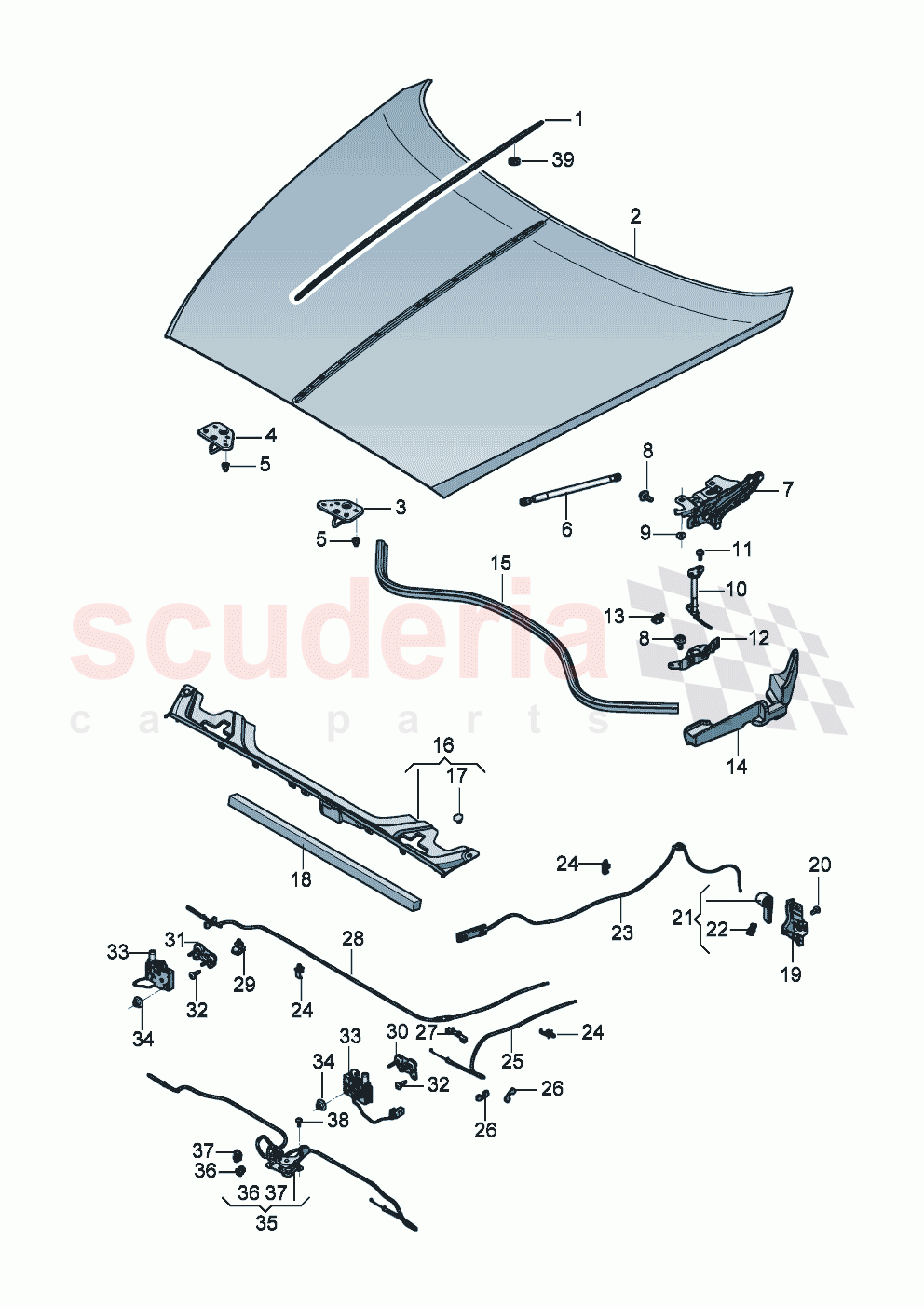

Bonnet of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3SE853194D
Decorative trim additionally to be used items:
Chrome ,PR:4B1 		$261.33 1
1 3SE853194D
Decorative trim additionally to be used items:
Chrome 39 ,PR:4B1 		$261.33 11
1 3SE853194D
Decorative trim additionally to be used items:
Chrome 39 ,PR:4B4,4B6 		$261.33 11
1 3SE853194E
Decorative trim additionally to be used items:
black ,PR:4B3 		$239.56 1
1 3SE853194E
Decorative trim additionally to be used items:
black 39 ,PR:4B3,4B5 		$239.56 11
1 3SE853194F
Decorative trim additionally to be used items:
Granite 39 ,PR:VQ0 		$330.32 1
2 3SE823031D
Bonnet 		$9,320.45 1
2 3SE823031D
Bonnet 		$9,320.45 1
3 3SE823259A
striker plate for lid
left 		$38.42 1
4 3SE823260A
striker plate for lid
right 		$38.42 1
5 WHT001308
cap nut, self-locking
M6 		$3.58 4
6 3SE823359
Gas strut
left a. right
IN STOCK 		$65.57 2
7 3SE823295A
Bonnet hinge
left 		$845.56 1
7 3SE823296A
Bonnet hinge
right 		$845.56 1
8 N91205601
Hexagon bolt D >> - 31.07.2024
M8X22 		$1.45 8
8 N91205602
Hexagon collared bolt with multi-point socket head (duo) D - 01.08.2024>> 		$1.71 8
9 N90761103
Hexagon collar nut self-locking
M8 		$1.36 4
10 3SA823823
Actuator D >> - 18.12.2022
left a. right 		$181.05 2
10 3SA823823A
Actuator D - 19.12.2022>>
left a. right 		$181.05 2
11 N10158605
bolt,hex.hd.with shoul.(combi)
M6X16 		$0.86 2
12 971823611
hinge bracket
left 		$28.68 1
12 971823612
hinge bracket
right 		$28.68 1
13 3D0971830F
bracket for connector housing flat connector housing For hole/material thickness: 		$10.44 2
14 3SE821169A
Hinge cover
left 		$47.13 1
14 3SE821170A
Hinge cover
right 		$47.13 1
15 971823737
seal for water box 		$57.64 1
16 3SE807397D
cover for bonnet lock 		$218.63 1
16 3SE807397D
cover for bonnet lock 		$218.63 1
17 N91150301
Bungs
IN STOCK 		$0.49 2
19 971823633
Bracket 		$32.66 1
20 N91096701
Oval hexagon socket head bolt
M6X16
IN STOCK 		$0.86 2
21 971823533B
release lever 		- 1 Enquire
23 3SD823543B
Bowden cable 		$36.20 1
24 N90681301
bracket for corrugated pipe 		$0.87 11
25 3SE823531
Bowden cable
left 		$33.33 1
26 3W0955125
Clip 		$2.35 4
27 3SD823595
clip for cable 		$19.34 1
28 3SE823532
Bowden cable
right 		$33.33 1
29 7L6971880
Cable holder 		$1.01 1
30 3SE805359
Support plate
left 		$29.58 1
31 3SE805360
Support plate
right 		$29.58 1
32 N10725401
Hexagon socket head collared bolt, thread forming
M6X20 		$0.94 6
33 3SA823509
latch
left a. right 		$95.65 2
34 N90887704
hex. nut
M6 		$1.21 4
35 3SE823529A
Release element 		$108.88 1
35 3SE823529A
Release element 		$108.88 1
36 3C8971850
Cable ties toothed quadrant
4,6X156MM outer 		$0.51 2
37 5M0971838A
cable tie with terminal socket 		$1.53 1
38 N91074201
Hexagon socket head bolt
M5X16 		$0.77 3
39 WHT009962
Clamping washer
B3.5X9.7 3SE853194D ,PR:4B1,4B4 		$0.80 1
39 WHT009962
Clamping washer
B3.5X9.7 3SE853194E ,PR:4B3 		$0.80 1
