Name: Front end section
Rating: 5.0 (1 reviews)

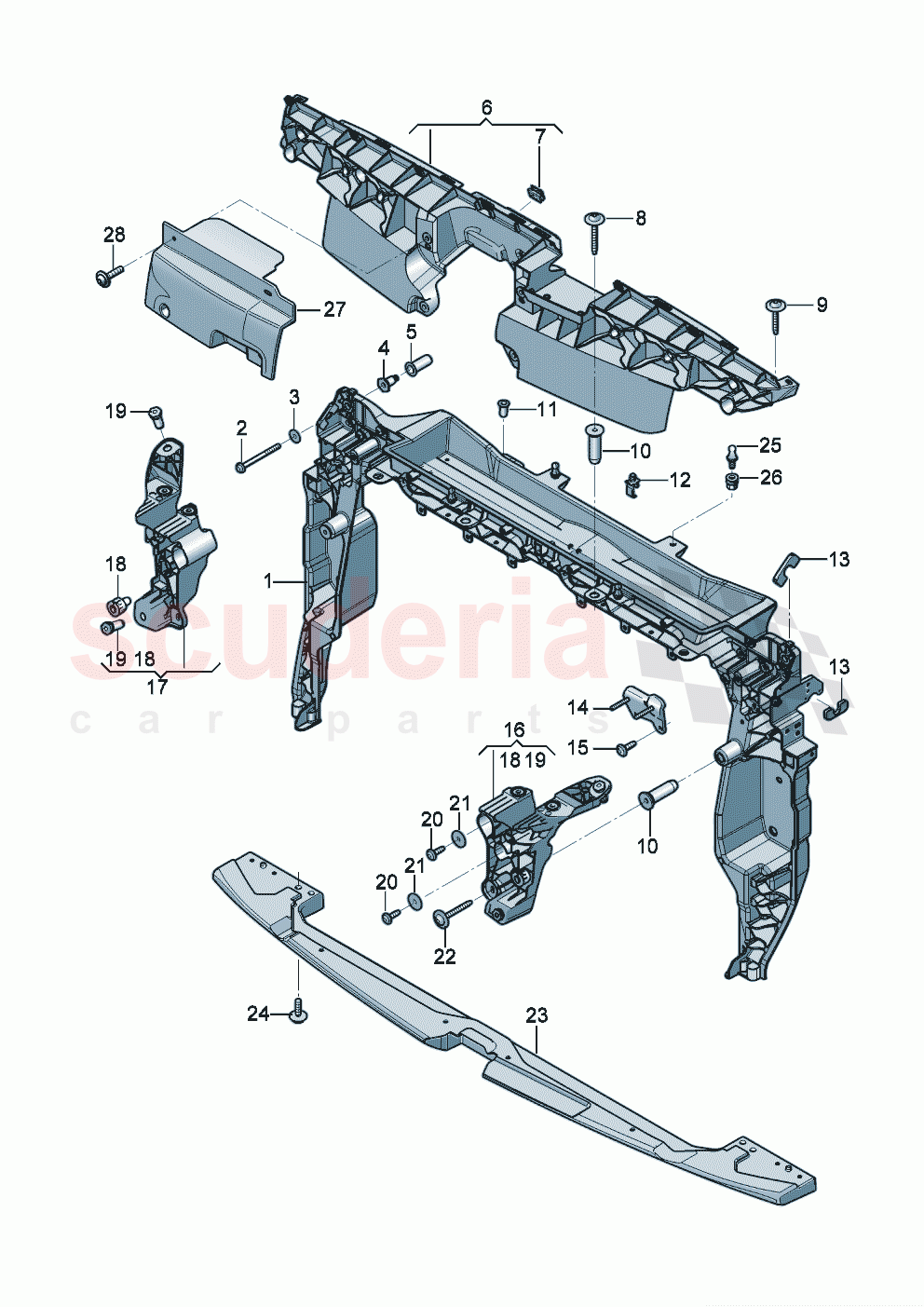

Front end section of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Front end section (805020)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SA805932C	Assembly carrier does not include: D - 02.12.2019>>	$2,101.51	To Order
	3SA805932C	Assembly carrier does not include: D - 02.12.2019>>	$2,101.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N91165101	Hexagon socket flat head bolt	$1.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91261701	Washer	$13.90	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007865	Adjusting element	$5.20	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007866	rivetted cap nut	$12.74	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE805232	Reinforcement D >> - 20.08.2023	$593.60	To Order
	3SE805232B	Reinforcement	$593.60	To Order

Photo	Part No	Description	Price (each)	Stock
	N90959101	Speed nut	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91228201	Hex socket head bolt (combi)	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91177601	Hexagon socket oval head bolt (combi)	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA806221	adjustment part	$55.25	To Order

Photo	Part No	Description	Price (each)	Stock
	N90681301	bracket for corrugated pipe	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0955125	Clip	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE805359	Support plate	$29.54	To Order
	3SE805360	Support plate	$29.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N10725401	Hexagon socket head collared bolt, thread forming	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE805113	Support bracket	$191.88	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE805114	Support bracket	$191.88	To Order

Photo	Part No	Description	Price (each)	Stock
	3R0807381	Support element Adjustment device	$30.14	To Order

Photo	Part No	Description	Price (each)	Stock
	8H0806221	Compensating piece	$8.58	To Order

Photo	Part No	Description	Price (each)	Stock
	N10725401	Hexagon socket head collared bolt, thread forming	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	N90563603	Washer	$9.71	To Order

Photo	Part No	Description	Price (each)	Stock
	N91228201	Hex socket head bolt (combi)	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SE807333	Support plate	$172.69	To Order

Photo	Part No	Description	Price (each)	Stock
	N90955801	bolt, hex. hd. (combi.) self-locking	$1.80	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA898447	Ball screw	$26.08	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003927	rivetted cap nut	$13.80	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE805227	Cover plate	$51.80	To Order

Photo	Part No	Description	Price (each)	Stock
	N10535502	Hexagon socket head bolt (combi)	$1.11	To Order

View All

Diagram Tap to enlarge

Front End Section

Bentley New Flying Spur (2020-2024)

Illustration Number: 805020

Bentley New Flying Spur (2020-2024) - Front end section (805020)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3SA805932C	Assembly carrier does not include: D - 02.12.2019>>	3SA805932C Assembly carrier does not include: D - 02.12.2019>> 11,25,26	$2,101.51	1
1	3SA805932C	Assembly carrier does not include: D - 02.12.2019>>	3SA805932C Assembly carrier does not include: D - 02.12.2019>> 11,25,26	$2,101.51	1
2	N91165101	Hexagon socket flat head bolt IN STOCK	N91165101 Hexagon socket flat head bolt M6X70 IN STOCK	$1.88	2
3	N91261701	Washer	N91261701 Washer 6,4X18X1	$13.90	2
4	WHT007865	Adjusting element	WHT007865 Adjusting element M10 LH	$5.20	2
5	WHT007866	rivetted cap nut	WHT007866 rivetted cap nut M19XLH	$12.74	2
6	3SE805232	Reinforcement D >> - 20.08.2023	3SE805232 Reinforcement D >> - 20.08.2023	$593.60	1
6	3SE805232B	Reinforcement	3SE805232B Reinforcement	$593.60	1
7	N90959101	Speed nut IN STOCK	N90959101 Speed nut IN STOCK	$0.69	8
8	N91228201	Hex socket head bolt (combi) IN STOCK	N91228201 Hex socket head bolt (combi) T30 M6X55 IN STOCK	$1.19	2
9	N91177601	Hexagon socket oval head bolt (combi)	N91177601 Hexagon socket oval head bolt (combi) M6X45	$1.02	4
10	3SA806221	adjustment part	3SA806221 adjustment part	$55.25	4
12	N90681301	bracket for corrugated pipe	N90681301 bracket for corrugated pipe	$0.87	4
13	3W0955125	Clip	3W0955125 Clip	$2.34	4
14	3SE805359	Support plate	3SE805359 Support plate left	$29.54	1
14	3SE805360	Support plate	3SE805360 Support plate right	$29.54	1
15	N10725401	Hexagon socket head collared bolt, thread forming	N10725401 Hexagon socket head collared bolt, thread forming M6X20	$0.94	6
16	3SE805113	Support bracket	3SE805113 Support bracket left	$191.88	1
17	3SE805114	Support bracket	3SE805114 Support bracket right	$191.88	1
18	3R0807381	Support element Adjustment device	3R0807381 Support element Adjustment device	$30.14	1
19	8H0806221	Compensating piece	8H0806221 Compensating piece	$8.58	2
20	N10725401	Hexagon socket head collared bolt, thread forming	N10725401 Hexagon socket head collared bolt, thread forming M6X20	$0.94	4
21	N90563603	Washer	N90563603 Washer 6.4X22X1.6	$9.71	4
22	N91228201	Hex socket head bolt (combi) IN STOCK	N91228201 Hex socket head bolt (combi) T30 M6X55 IN STOCK	$1.19	2
23	3SE807333	Support plate	3SE807333 Support plate	$172.69	1
24	N90955801	bolt, hex. hd. (combi.) self-locking	N90955801 bolt, hex. hd. (combi.) self-locking M6X25	$1.80	4
25	3SA898447	Ball screw	3SA898447 Ball screw M6X12X10	$26.08	4
26	WHT003927	rivetted cap nut	WHT003927 rivetted cap nut M6X0,5,3	$13.80	4
27	3SE805227	Cover plate	3SE805227 Cover plate PR:2Z3	$51.80	1
28	N10535502	Hexagon socket head bolt (combi)	N10535502 Hexagon socket head bolt (combi) PR:2Z3	$1.11	4

Front End Section

Bentley New Flying Spur (2020-2024)

Illustration Number: 805020

Bentley New Flying Spur (2020-2024) - Front end section (805020)
