Vacuum System

Bentley Mulsanne (2010+)

Find Your Part

Bentley Mulsanne (2010+) - vacuum system

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3Y0927317 vacuum pump, D >> - 21.11.2011 $995.11 To Order
Photo Part No Description Price (each) Stock
3Y0802419 bracket, vacuum pump, D - 18.03.2013>> $133.15 To Order
Photo Part No Description Price (each) Stock
6A133567K rubber isolator $16.52 To Order
Photo Part No Description Price (each) Stock
N10158605 bolt,hex.hd.with shoul.(combi) $0.98 To Order
N10158605 bolt,hex.hd.with shoul.(combi) $0.98 To Order
Photo Part No Description Price (each) Stock
N90215804 Hexagon nut $1.37 IN STOCK
Photo Part No Description Price (each) Stock
3Y0612178 damping rubber $245.83 To Order
Photo Part No Description Price (each) Stock
N90685101 bracket for connector housing, D - 20.08.2012>> $2.90 To Order
Photo Part No Description Price (each) Stock
3Y0612041C vacuum pipe, D - 29.10.2012>> $290.23 To Order
Photo Part No Description Price (each) Stock
N10401901 double clip $1.62 To Order
Photo Part No Description Price (each) Stock
3D0201449K securing clip, D >> - MJ 2016 $5.82 To Order
Photo Part No Description Price (each) Stock
3Y0614931C vacuum pipe, D - 29.10.2012>> $219.75 To Order
Photo Part No Description Price (each) Stock
3Y0612797 clamp $16.07 To Order
Photo Part No Description Price (each) Stock
N90943501 bracket for hose $0.92 IN STOCK
Photo Part No Description Price (each) Stock
3D0201449M securing clip, D >> - 26.05.2014 $5.82 To Order
Photo Part No Description Price (each) Stock
3Y1612936A vacuum pipe, D - 29.10.2012>> $307.29 To Order
Photo Part No Description Price (each) Stock
3Y2612936A vacuum pipe, D - 29.10.2012>> $343.89 To Order
Photo Part No Description Price (each) Stock
N90926401 Spring band clamp $2.90 IN STOCK
Photo Part No Description Price (each) Stock
3Y0612930D vacuum pipe, D - 21.02.2013>> $588.76 To Order
Photo Part No Description Price (each) Stock
7C133529 non-return valve $17.94 To Order
Photo Part No Description Price (each) Stock
3W0612391M clamp, Only in combination with:, Only in combination with: $5.17 IN STOCK
N90770201 Spring band clamp $2.56 IN STOCK
N10255501 retaining clip, Only in combination with: $4.39 IN STOCK
Photo Part No Description Price (each) Stock
N90686701 Spring band clamp $1.26 IN STOCK
N0245097 clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013 $3.13 To Order
N90770201 Spring band clamp $2.56 IN STOCK
Photo Part No Description Price (each) Stock
N10259903 Clamp $1.04 To Order
N0206253 Clamp $1.85 To Order
Photo Part No Description Price (each) Stock
3Y0612929D vacuum pipe, D - 21.02.2013>> $671.69 To Order
Photo Part No Description Price (each) Stock
N0206245 clamp, F >> 3Y-D-017 737, F >> ZH-D-017 737 $3.73 To Order
N0206473 clamp, F 3Y-D-017 738>>, F ZH-D-017 738>> $11.22 To Order
Photo Part No Description Price (each) Stock
N90737101 Oval hexagon socket head bolt $1.17 IN STOCK
Photo Part No Description Price (each) Stock
6Q0611933A non-return valve $74.90 To Order
Photo Part No Description Price (each) Stock
N10201801 retaining clip, F >> 3Y-D-017 737, F >> ZH-D-017 737 $1.16 IN STOCK
N10202001 Ear Hose Clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013 $1.56 To Order
N10255601 clamp D - 11.03.2019>> $1.38 To Order
Photo Part No Description Price (each) Stock
3W0612413 heat shield $28.52 To Order
Photo Part No Description Price (each) Stock
3Y0612935 vacuum pipe, D >> - MJ 2015 $490.22 To Order
3Y0612935B vacuum pipe, D - MJ 2016>> $490.22 To Order
Photo Part No Description Price (each) Stock
443131541 vacuum reservoir $33.21 To Order
Photo Part No Description Price (each) Stock
N10017304 Hexagon collar nut $1.26 IN STOCK
Photo Part No Description Price (each) Stock
N10128802 double clip $2.62 To Order
Photo Part No Description Price (each) Stock
N10573601 retainer, swivelling $2.04 To Order
Photo Part No Description Price (each) Stock
N90686701 Spring band clamp $1.26 IN STOCK
Photo Part No Description Price (each) Stock
N90686701 Spring band clamp $1.26 IN STOCK
N90770201 Spring band clamp $2.56 IN STOCK
Photo Part No Description Price (each) Stock
N90926401 Spring band clamp $2.90 IN STOCK
N0245097 clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013 $3.13 To Order
4G0145917 spring clip, D - 21.02.2013>> $1.64 To Order
View All

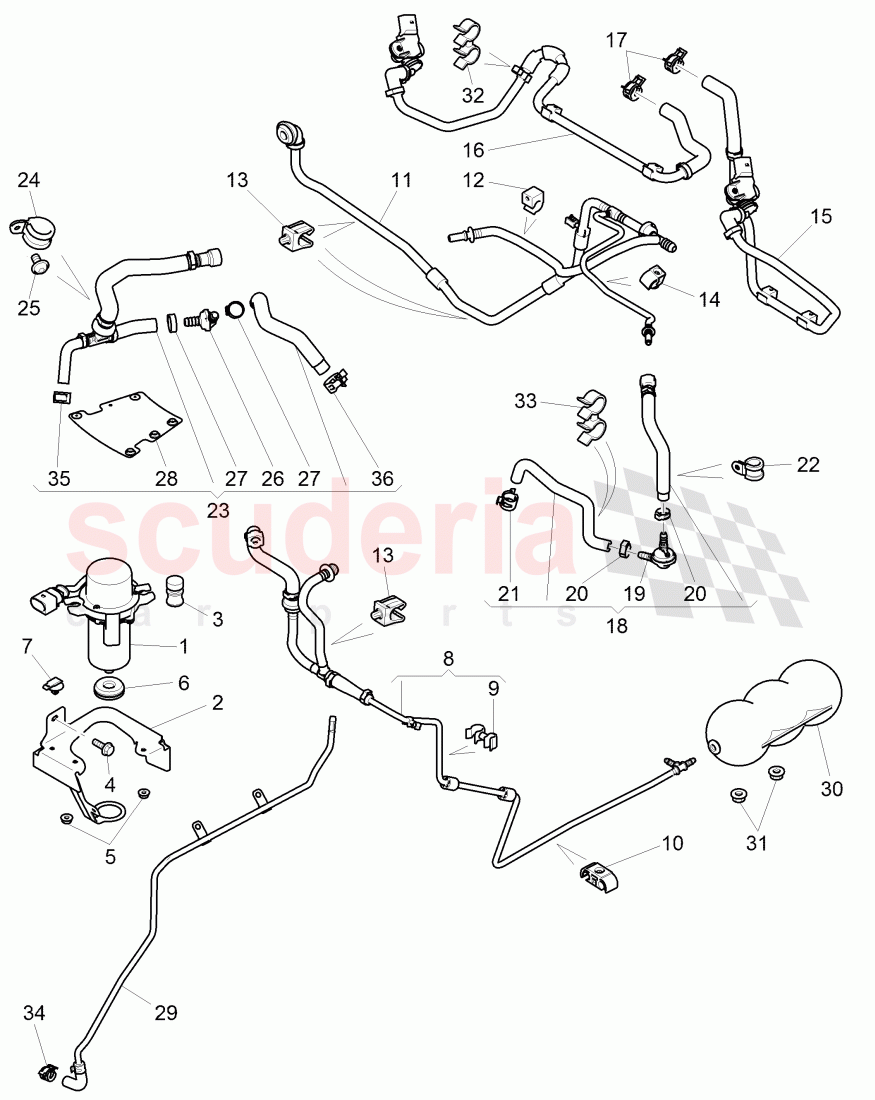

vacuum system of Bentley Bentley Mulsanne (2010+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3Y0927317
vacuum pump, D >> - 21.11.2011 		$995.11 1
2 3Y0802419
bracket, vacuum pump, D - 18.03.2013>> 		$133.15 1
3 6A133567K
rubber isolator 		$16.52 2
4 N10158605
bolt,hex.hd.with shoul.(combi)
3Y0 802 417 B, 		$0.98 4
4 N10158605
bolt,hex.hd.with shoul.(combi)
3Y0 802 419, 		$0.98 3
5 N90215804
Hexagon nut
IN STOCK 		$1.37 2
6 3Y0612178
damping rubber 		$245.83 1
7 N90685101
bracket for connector housing, D - 20.08.2012>> 		$2.90 1
8 3Y0612041C
vacuum pipe, D - 29.10.2012>> 		$290.23 1
9 N10401901
double clip 		$1.62 2
10 3D0201449K
securing clip, D >> - MJ 2016 		$5.82 1
11 3Y0614931C
vacuum pipe, D - 29.10.2012>> 		$219.75 1
12 3Y0612797
clamp 		$16.07 3
13 N90943501
bracket for hose
IN STOCK 		$0.92 3
14 3D0201449M
securing clip, D >> - 26.05.2014 		$5.82 1
15 3Y1612936A
vacuum pipe, D - 29.10.2012>>
lhd, PR-LOL 		$307.29 1
16 3Y2612936A
vacuum pipe, D - 29.10.2012>>
rhd, PR-LOR 		$343.89 1
17 N90926401
Spring band clamp
19X12,
IN STOCK 		$2.90 2
18 3Y0612930D
vacuum pipe, D - 21.02.2013>> 		$588.76 1
19 7C133529
non-return valve 		$17.94 1
20 3W0612391M
clamp, Only in combination with:, Only in combination with:
16X7X0,61,
IN STOCK 		$5.17 2
20 N90770201
Spring band clamp
17X12,
IN STOCK 		$2.56 1
20 N10255501
retaining clip, Only in combination with:
17,5X7X0,6,
IN STOCK 		$4.39 1
21 N90686701
Spring band clamp
14X12,
IN STOCK 		$1.26 1
21 N0245097
clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013
12-22X9, 		$3.13 1
21 N90770201
Spring band clamp
17X12,
IN STOCK 		$2.56 1
22 N10259903
Clamp
14X19, 		$1.04 1
22 N0206253
Clamp
20X19, 		$1.85 1
23 3Y0612929D
vacuum pipe, D - 21.02.2013>> 		$671.69 1
24 N0206245
clamp, F >> 3Y-D-017 737, F >> ZH-D-017 737
22X19, 		$3.73 1
24 N0206473
clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>
24X19, 		$11.22 1
25 N90737101
Oval hexagon socket head bolt
IN STOCK 		$1.17 1
26 6Q0611933A
non-return valve 		$74.90 1
27 N10201801
retaining clip, F >> 3Y-D-017 737, F >> ZH-D-017 737
21X7X0,60,
IN STOCK 		$1.16 2
27 N10202001
Ear Hose Clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013
24,1X7X0,6, 		$1.56 2
27 N10255601
clamp D - 11.03.2019>>
23,5X7X0,6, 		$1.38 2
28 3W0612413
heat shield 		$28.52 1
29 3Y0612935
vacuum pipe, D >> - MJ 2015 		$490.22 1
29 3Y0612935B
vacuum pipe, D - MJ 2016>> 		$490.22 1
30 443131541
vacuum reservoir 		$33.21 1
31 N10017304
Hexagon collar nut
IN STOCK 		$1.26 2
32 N10128802
double clip 		$2.62 2
33 N10573601
retainer, swivelling 		$2.04 1
34 N90686701
Spring band clamp
14X12,
IN STOCK 		$1.26 1
35 N90686701
Spring band clamp
14X12,
IN STOCK 		$1.26 1
35 N90770201
Spring band clamp
17X12,
IN STOCK 		$2.56 1
36 N90926401
Spring band clamp
19X12,
IN STOCK 		$2.90 1
36 N0245097
clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>, D >> - 21.02.2013
12-22X9, 		$3.13 1
36 4G0145917
spring clip, D - 21.02.2013>>
21X12, 		$1.64 1
