Name: brake line, fuel line
Rating: 5.0 (1 reviews)

View All

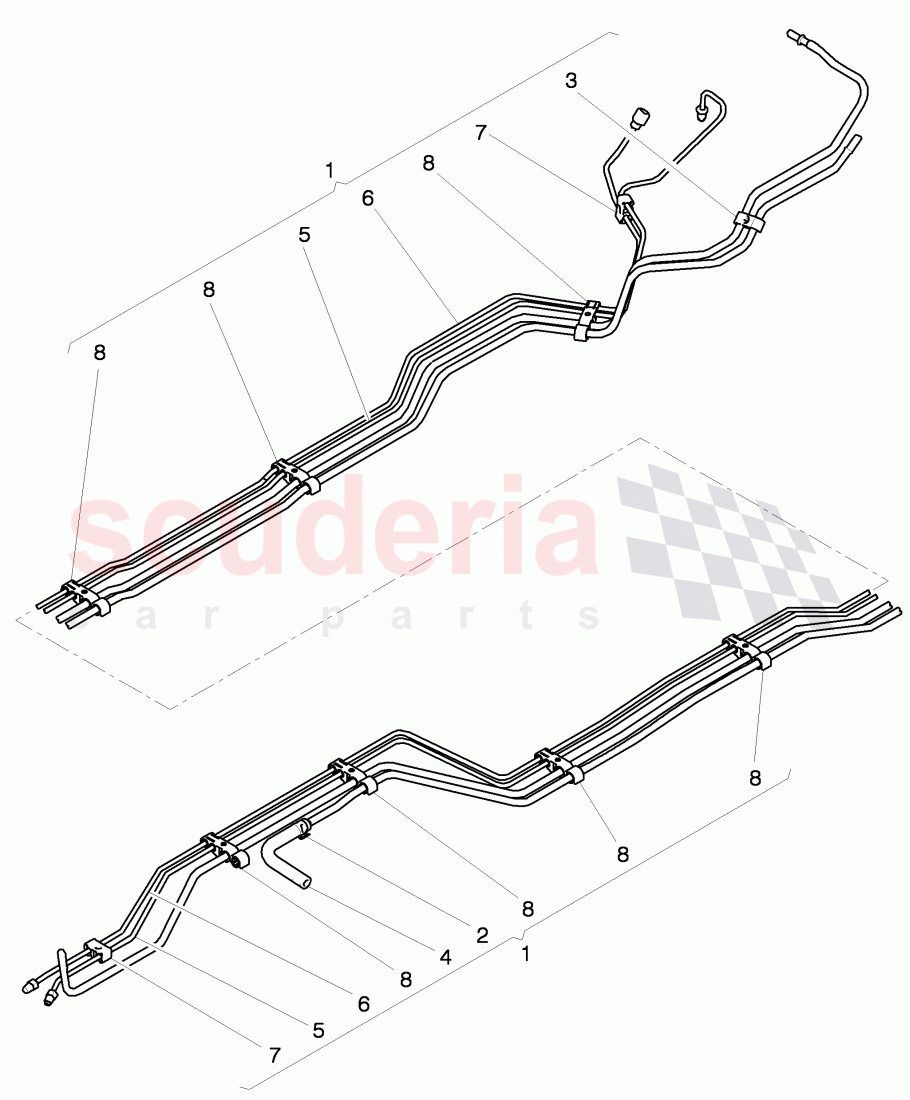

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y5201059A	1 Set fuel pipes and, brake pipes, assembly, D >> - MJ 2016	$705.39	To Order
	3Y5201059A	1 Set fuel pipes and, brake pipes, assembly, D >> - MJ 2016	$705.39	To Order
	3Y4201059	1 Set fuel pipes and, brake pipes, assembly, D - MJ 2017>>	$705.39	To Order

Photo	Part No	Description	Price (each)	Stock
	N90768301	Spring band clamp	$1.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0201449K	securing clip, D >> - MJ 2016	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0201438	vacuum hose, reservoir	$17.82	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0614742C	brake pipe	$189.17	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0614741C	brake pipe	$189.17	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0611797G	Brake line bracket	$2.01	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3Y5201059A	1 Set fuel pipes and, brake pipes, assembly, D >> - MJ 2016	3Y5201059A 1 Set fuel pipes and, brake pipes, assembly, D >> - MJ 2016 underfloor,	$705.39	1
1	3Y5201059A	1 Set fuel pipes and, brake pipes, assembly, D >> - MJ 2016	3Y5201059A 1 Set fuel pipes and, brake pipes, assembly, D >> - MJ 2016 underfloor, SWB, PR-0E1	$705.39	1
1	3Y4201059	1 Set fuel pipes and, brake pipes, assembly, D - MJ 2017>>	3Y4201059 1 Set fuel pipes and, brake pipes, assembly, D - MJ 2017>> underfloor, EWB, PR-0E2	$705.39	1
2	N90768301	Spring band clamp IN STOCK	N90768301 Spring band clamp IN STOCK	$1.21	1
3	3D0201449K	securing clip, D >> - MJ 2016	3D0201449K securing clip, D >> - MJ 2016	$4.99	1
4	3Y0201438	vacuum hose, reservoir	3Y0201438 vacuum hose, reservoir	$17.82	1
5	3Y0614742C	brake pipe	3Y0614742C brake pipe right, SWB, PR-0E1	$189.17	1
6	3Y0614741C	brake pipe	3Y0614741C brake pipe left, SWB, PR-0E1	$189.17	1
7	8K0611797G	Brake line bracket	8K0611797G Brake line bracket	$2.01	2
8	8Z0611797F	clip, D >> - MJ 2016	8Z0611797F clip, D >> - MJ 2016	$13.36	7
8	8Z0611797F	clip, D >> - MJ 2016	8Z0611797F clip, D >> - MJ 2016 PR-0E1,	$13.36	7
8	8Z0611797F	clip, D >> - MJ 2016	8Z0611797F clip, D >> - MJ 2016 PR-0E2,	$13.36	8

Brake Line, Fuel Line

Bentley Mulsanne (2010+)
