Name: fuel tank with attached parts, strainer, Sealing flange with fuel, level sensor, F 3Y-B-015 863>>, F ZH-B-015 863>>
Rating: 4.9 (1 reviews)

fuel tank with attached parts, strainer, Sealing flange with fuel, level sensor, F 3Y-B-015 863>>, F ZH-B-015 863>> of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - fuel tank with attached parts, strainer, Sealing flange with fuel, level sensor, F 3Y-B-015 863>>,...

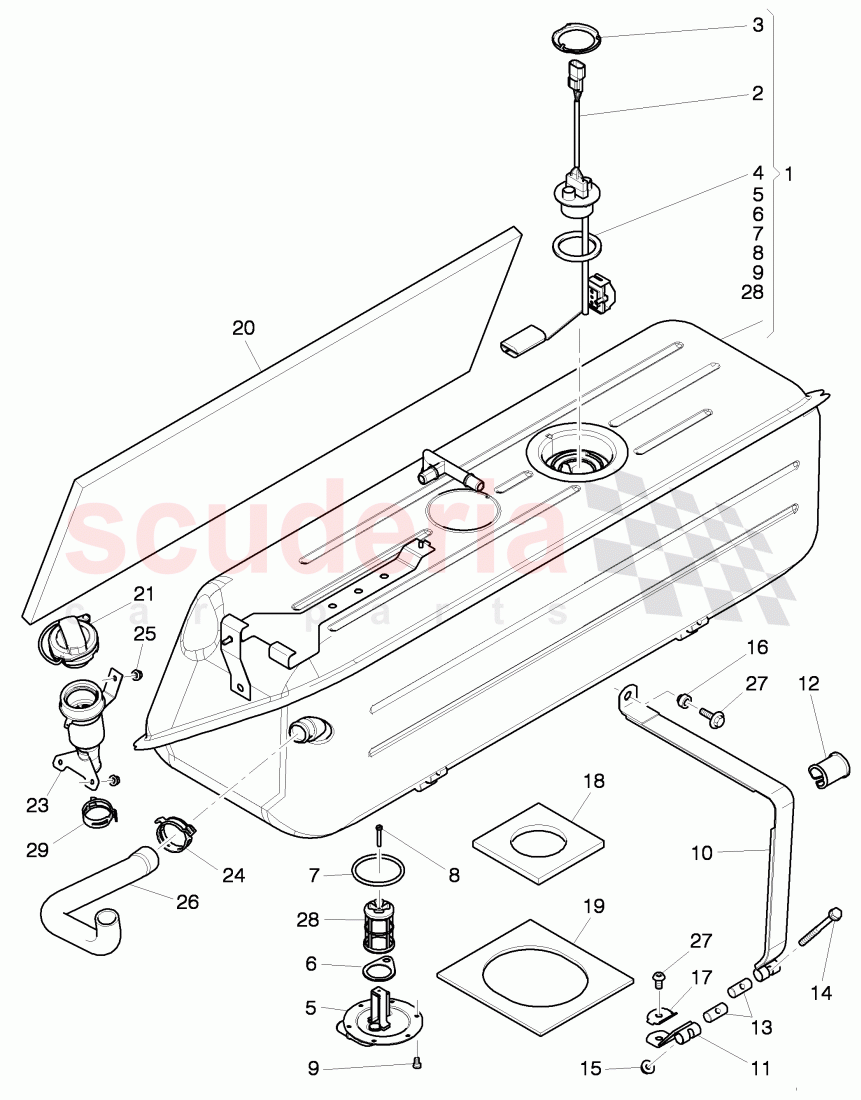

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0201021L	fuel tank, D - 18.01.2016>>	$5,427.58	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0201065	Transmitter unit for fuel, gauge	$558.70	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201099	crown bracing	$14.80	To Order

Photo	Part No	Description	Price (each)	Stock
	UE70476	RING SEALING SENDER UNIT	$26.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0201194C	flange, fuel tank, D - 13.10.2014>>	$587.30	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201119	gasket	$63.32	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003513	seal ring	$22.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003501	screw, cheese hd.	$49.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N0102258	screw, hex. hd.	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0201313	retaining strap, fuel tank	$97.30	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201653A	retaining strap, fuel tank	$137.42	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201656	insulating piece, retaining strap, fuel tank	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201341	pipe	$22.11	To Order

Photo	Part No	Description	Price (each)	Stock
	N10414502	hexagon head bolt (combi)	$2.56	To Order

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0201693	rubber isolator	$6.95	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201176	support bracket safety belt fuel tank	$24.60	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201196	seal strip, (self-adhesive)	$31.77	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0201446	seal strip, (self-adhesive)	$85.60	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0201538A	damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>	$113.34	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0201550N	cap with retaining strap for, fuel tank, D - 18.04.2016>>	$94.32	To Order
	3Y0201550P	cap with retaining strap for, fuel tank, D - 18.04.2016>>	$986.82	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y5201133	fuel filler neck	$983.41	To Order

Photo	Part No	Description	Price (each)	Stock
	7L145917	hose clip	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	$2.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5201609B	hose fuel filler neck	$300.90	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106905	hexagon head bolt (combi)	$0.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0201511	fuel filter with flange	$71.10	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687101	spring band clamp	$3.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3Y0201021L	fuel tank, D - 18.01.2016>>	3Y0201021L fuel tank, D - 18.01.2016>>	$5,427.58	1
2	3Y0201065	Transmitter unit for fuel, gauge	3Y0201065 Transmitter unit for fuel, gauge	$558.70	1
3	3Z0201099	crown bracing	3Z0201099 crown bracing	$14.80	1
4	UE70476	RING SEALING SENDER UNIT IN STOCK	UE70476 RING SEALING SENDER UNIT IN STOCK	$26.65	1
5	3Y0201194C	flange, fuel tank, D - 13.10.2014>>	3Y0201194C flange, fuel tank, D - 13.10.2014>> supply/return,	$587.30	1
6	3Z0201119	gasket	3Z0201119 gasket	$63.32	1
7	WHT003513	seal ring	WHT003513 seal ring 62,	$22.81	1
8	WHT003501	screw, cheese hd.	WHT003501 screw, cheese hd. M3X20,	$49.84	1
9	N0102258	screw, hex. hd.	N0102258 screw, hex. hd. M5X8,	$2.75	6
10	3Y0201313	retaining strap, fuel tank	3Y0201313 retaining strap, fuel tank upper,	$97.30	2
11	3Z0201653A	retaining strap, fuel tank	3Z0201653A retaining strap, fuel tank lower,	$137.42	2
12	3Z0201656	insulating piece, retaining strap, fuel tank	3Z0201656 insulating piece, retaining strap, fuel tank	$6.26	2
13	3Z0201341	pipe	3Z0201341 pipe	$22.11	4
14	N10414502	hexagon head bolt (combi)	N10414502 hexagon head bolt (combi) M6X75,	$2.56	2
15	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	$0.34	2
16	3Y0201693	rubber isolator	3Y0201693 rubber isolator	$6.95	2
17	3Z0201176	support bracket safety belt fuel tank	3Z0201176 support bracket safety belt fuel tank lower,	$24.60	2
18	3Z0201196	seal strip, (self-adhesive)	3Z0201196 seal strip, (self-adhesive)	$31.77	1
19	3Z0201446	seal strip, (self-adhesive)	3Z0201446 seal strip, (self-adhesive)	$85.60	1
20	3Y0201538A	damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>	3Y0201538A damping washer, (self-adhesive), fuel tank, D - 04.04.2011>>	$113.34	1
21	3Y0201550N	cap with retaining strap for, fuel tank, D - 18.04.2016>>	3Y0201550N cap with retaining strap for, fuel tank, D - 18.04.2016>> Standard, PR-2W3	$94.32	1
21	3Y0201550P	cap with retaining strap for, fuel tank, D - 18.04.2016>>	3Y0201550P cap with retaining strap for, fuel tank, D - 18.04.2016>> MULLINER, PR-2W0	$986.82	1
23	3Y5201133	fuel filler neck	3Y5201133 fuel filler neck	$983.41	1
24	7L145917	hose clip	7L145917 hose clip 36,	$1.90	1
25	N90215805	shouldered hex. nut, Discont./New add.+FULU calc. IN STOCK	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6, IN STOCK	$2.05	3
26	3Y5201609B	hose fuel filler neck	3Y5201609B hose fuel filler neck	$300.90	1
27	N10106905	hexagon head bolt (combi) IN STOCK	N10106905 hexagon head bolt (combi) M8X30, IN STOCK	$0.94	2
28	3Z0201511	fuel filter with flange	3Z0201511 fuel filter with flange	$71.10	1
29	N90687101	spring band clamp	N90687101 spring band clamp 32X12,	$3.57	1

Fuel Tank With Attached Parts, Strainer, Sealing Flange With Fuel, Level Sensor, F 3Y-B-015 863>>,...

Bentley Mulsanne (2010+)

Bentley Mulsanne (2010+) - fuel tank with attached parts, strainer, Sealing flange with fuel, level sensor, F 3Y-B-015 863>>,...
