Bentley Mulsanne (2010+) - Engine mounting, D >> - MJ 2016

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3Y0199205C engine carrier with rubber, mounting, D - 27.10.2014>> $2,666.60 To Order
Photo Part No Description Price (each) Stock
WHT003242 bolt, D >> - 30.04.2012 $6.13 To Order
Photo Part No Description Price (each) Stock
3Y0199143 mounting for sub frame $260.84 To Order
Photo Part No Description Price (each) Stock
3Y0199384A engine mounting $695.62 To Order
Photo Part No Description Price (each) Stock
3Z0199455 heat shield $187.53 To Order
Photo Part No Description Price (each) Stock
N10435507 shouldered hex. nut,, self-locking, D - 11.12.2006>> $1.36 To Order
N10435507 shouldered hex. nut,, self-locking, D - 11.12.2006>> $1.36 To Order
Photo Part No Description Price (each) Stock
WHT003246 stud $26.96 To Order
Photo Part No Description Price (each) Stock
3Y0199335 stop plate, D - 25.11.2013>> $52.49 To Order
Photo Part No Description Price (each) Stock
3Y0199336 stop plate, D - 25.11.2013>> $52.49 To Order
Photo Part No Description Price (each) Stock
WHT003243 countersunk bolt $5.61 To Order
Photo Part No Description Price (each) Stock
7V199584 engine mounting bracket $192.01 To Order
Photo Part No Description Price (each) Stock
7V199583 engine mounting bracket $221.01 To Order
Photo Part No Description Price (each) Stock
WHT002862 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 $19.42 To Order
N01472310 bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $2.22 To Order
Photo Part No Description Price (each) Stock
WHT002863 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 $25.28 To Order
N10204807 hexagon head bolt (combi) for use with: $2.22 To Order
Photo Part No Description Price (each) Stock
WHT002864 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 $15.63 To Order
N10728502 Hex collared bolt alternatively, you can use: $2.82 To Order
Photo Part No Description Price (each) Stock
WHT003245 bolt $7.15 To Order
Photo Part No Description Price (each) Stock
WHT003244 washer $0.90 To Order
Photo Part No Description Price (each) Stock
3Z0199458 heat shield $75.43 To Order
Photo Part No Description Price (each) Stock
N10286110 Hexagon collar nut self-locking $1.36 IN STOCK
Photo Part No Description Price (each) Stock
WHT002851 Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $1.29 To Order
WHT002851 Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $1.29 To Order
View All

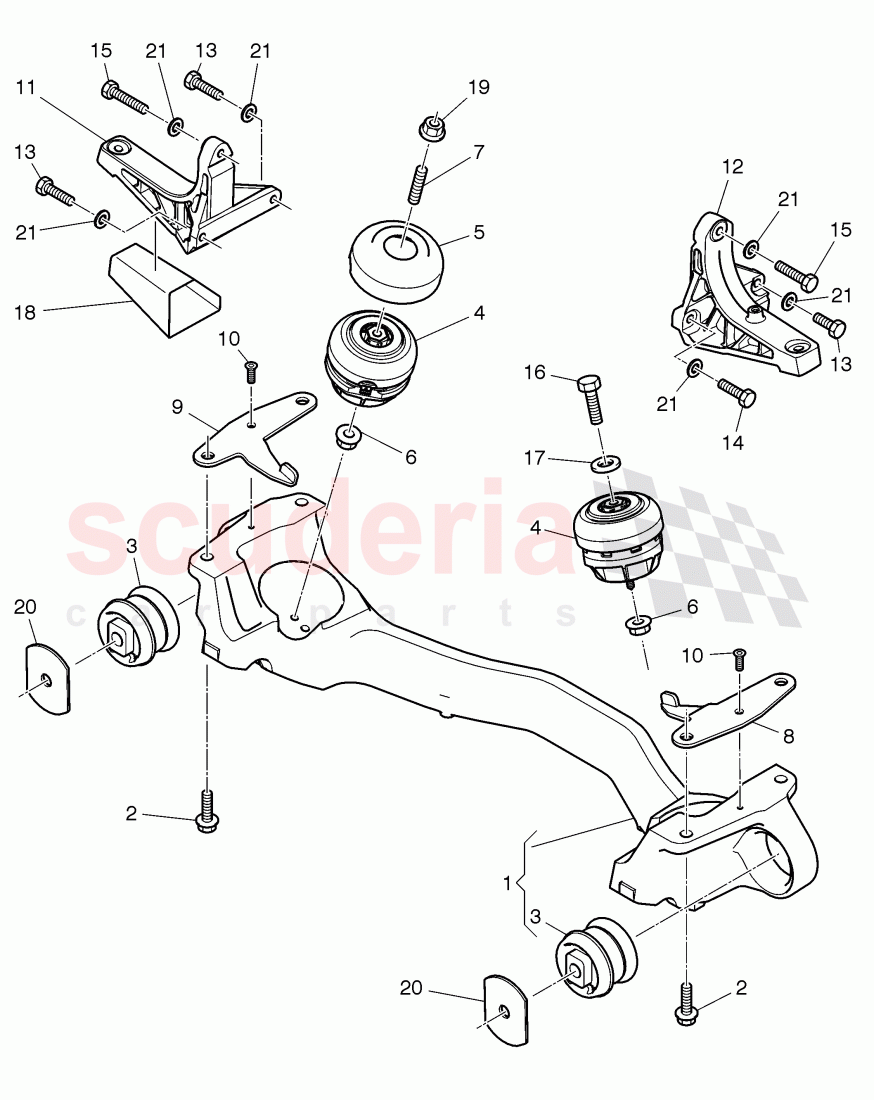

Engine mounting, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3Y0199205C
engine carrier with rubber, mounting, D - 27.10.2014>> 		$2,666.60 1
2 WHT003242
bolt, D >> - 30.04.2012
M12X1,75X40, 		$6.13 4
3 3Y0199143
mounting for sub frame 		$260.84 2
4 3Y0199384A
engine mounting 		$695.62 2
5 3Z0199455
heat shield 		$187.53 1
6 N10435507
shouldered hex. nut,, self-locking, D - 11.12.2006>>
M8X1,25, 		$1.36 2
6 N10435507
shouldered hex. nut,, self-locking, D - 11.12.2006>> 		$1.36 2
7 WHT003246
stud
M10X55, 		$26.96 1
8 3Y0199335
stop plate, D - 25.11.2013>>
left, 		$52.49 1
9 3Y0199336
stop plate, D - 25.11.2013>>
right, 		$52.49 1
10 WHT003243
countersunk bolt
M5X20, 		$5.61 2
11 7V199584
engine mounting bracket
right, 		$192.01 1
12 7V199583
engine mounting bracket
left, 		$221.01 1
13 WHT002862
bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854
3/8UNFX1.250", 		$19.42 3
13 N01472310
bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>
M10X30, 		$2.22 3
14 WHT002863
bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854
3/8UNFX1.375", 		$25.28 1
14 N10204807
hexagon head bolt (combi) for use with:
M10X35, 		$2.22 1
15 WHT002864
bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854
3/8UNFX1.750", 		$15.63 2
15 N10728502
Hex collared bolt alternatively, you can use:
M10X42, 		$2.82 2
16 WHT003245
bolt
M10X40, 		$7.15 1
17 WHT003244
washer
M10, 		$0.90 1
18 3Z0199458
heat shield 		$75.43 1
19 N10286110
Hexagon collar nut self-locking
M10,
IN STOCK 		$1.36 1
21 WHT002851
Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>
19X9,9X2, 		$1.29 6
21 WHT002851
Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>
19 X 9.9 X 2MM, N 014 723 10, 		$1.29 3
