Oil Pan

Bentley Mulsanne (2010+)

Find Your Part

Bentley Mulsanne (2010+) - oil pan

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7V103601E Engine oil sump, assembly, D - 10.06.2013>> $2,153.81 To Order
Photo Part No Description Price (each) Stock
WHT002844 bolt, F >> 3Y-C-016 977, F >> ZH-C-016 977 $39.47 To Order
N10434904 bolt, F 3Y-C-016 978>>, F ZH-C-016 978>> $2.24 IN STOCK
Photo Part No Description Price (each) Stock
WHT002770 bolt $71.77 To Order
Photo Part No Description Price (each) Stock
7V115629B tube for oil dipstick $179.46 To Order
Photo Part No Description Price (each) Stock
7V115611 oil dipstick $106.40 To Order
Photo Part No Description Price (each) Stock
WHT002929 seal ring $7.53 IN STOCK
Photo Part No Description Price (each) Stock
34115427B O-ring $7.76 To Order
Photo Part No Description Price (each) Stock
7V103428A oil pipe, return pipe, (For turbocharger) $179.46 To Order
Photo Part No Description Price (each) Stock
7V103427A oil pipe, return pipe, (For turbocharger) $179.46 To Order
Photo Part No Description Price (each) Stock
WHT002755 bolt $7.37 To Order
Photo Part No Description Price (each) Stock
WHT002921 seal ring $11.20 IN STOCK
Photo Part No Description Price (each) Stock
28103059A oil drain plug $11.88 IN STOCK
Photo Part No Description Price (each) Stock
WHT002909 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069 $2.87 IN STOCK
Photo Part No Description Price (each) Stock
1J0907660F oil level sensor, D - 21.10.2013>> $133.31 To Order
Photo Part No Description Price (each) Stock
N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> $2.35 To Order
Photo Part No Description Price (each) Stock
WHT002766 bolt, also use: $8.29 To Order
Photo Part No Description Price (each) Stock
WHT002849 Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 $18.58 IN STOCK
Photo Part No Description Price (each) Stock
38103196 seal ring $8.21 IN STOCK
View All

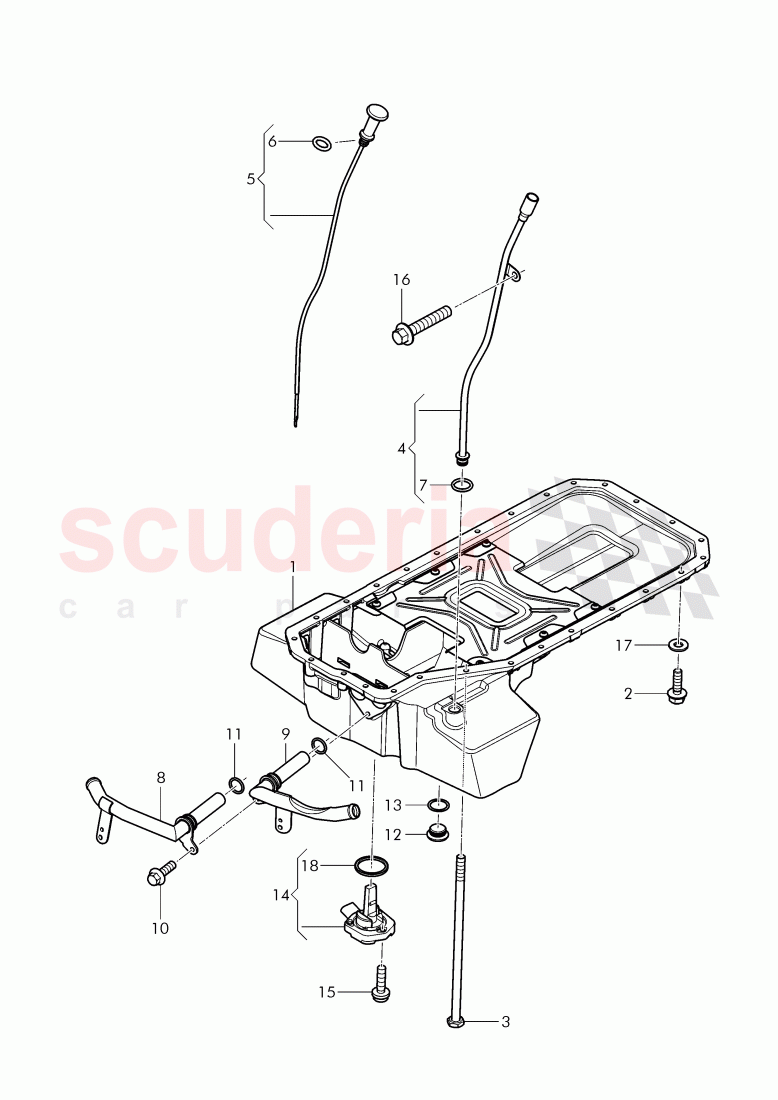

oil pan of Bentley Bentley Mulsanne (2010+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 7V103601E
Engine oil sump, assembly, D - 10.06.2013>> 		$2,153.81 1
2 WHT002844
bolt, F >> 3Y-C-016 977, F >> ZH-C-016 977
1/4UNFX0.875", 		$39.47 23
2 N10434904
bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>
M6X20,
IN STOCK 		$2.24 23
3 WHT002770
bolt
1/4UNFX5.75", 		$71.77 4
4 7V115629B
tube for oil dipstick 		$179.46 1
5 7V115611
oil dipstick 		$106.40 1
6 WHT002929
seal ring
0.362",
IN STOCK 		$7.53 1
7 34115427B
O-ring
12X2, 		$7.76 1
8 7V103428A
oil pipe, return pipe, (For turbocharger)
cylinders 1-4, 		$179.46 1
9 7V103427A
oil pipe, return pipe, (For turbocharger)
cylinders 5-8, 		$179.46 1
10 WHT002755
bolt
M6X20, 		$7.37 1
11 WHT002921
seal ring
20,
IN STOCK 		$11.20 2
12 28103059A
oil drain plug
M24X1.5,
IN STOCK 		$11.88 1
13 WHT002909
sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069
IN STOCK 		$2.87 1
14 1J0907660F
oil level sensor, D - 21.10.2013>> 		$133.31 1
15 N90500604
socket head bolt with inner, hex round head, D - 06.11.2006>>
M6X22, 		$2.35 3
16 WHT002766
bolt, also use:
M8X45, 		$8.29 1
17 WHT002849
Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849
7X14X1,5,
IN STOCK 		$18.58 23
18 38103196
seal ring
IN STOCK 		$8.21 1
