Rear Bumper Assembly

Aston Martin Virage

Find Your Part

Aston Martin Virage - Rear Bumper Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3317D781CC Bumper Cover, Rear ROW Enquire To Order
8D3317D781DC Bumper Cover, Rear FED Enquire To Order
Photo Part No Description Price (each) Stock
8D3317A881AD Bracket, RH, Rear Bumper Cover ROW Enquire To Order
8D3317A882AC BRKT RR BMPR CVR LH $526.79 To Order
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $9.07 IN STOCK
Photo Part No Description Price (each) Stock
4G4317K835AA Rivet Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.11 IN STOCK
Photo Part No Description Price (each) Stock
1X4317K826AB Retainer Enquire To Order
Photo Part No Description Price (each) Stock
704383 Clip, Edge $1.38 To Order
Photo Part No Description Price (each) Stock
707135 SCREW 4.2 X 13 SELF TAPPING $0.09 IN STOCK
Photo Part No Description Price (each) Stock
701656 RETAINER $8.41 IN STOCK
Photo Part No Description Price (each) Stock
4G43023A50BBPK External Fender Clip (Pack of 5) $31.64 IN STOCK
Photo Part No Description Price (each) Stock
701580PK Rivet Dome Head (Pack of 20) $10.01 IN STOCK
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.93 IN STOCK
Photo Part No Description Price (each) Stock
8D3317B938AB BRKT BMPR DIFF TO RWARCH $28.14 To Order
Photo Part No Description Price (each) Stock
4G4317B681AH BUMPER MOUNTING BRACKET - CENTRE $128.92 To Order
Photo Part No Description Price (each) Stock
4G4317B930AA Bracket, Bumper Mounting, Outer $9.37 To Order
Photo Part No Description Price (each) Stock
4G4317B681BA Dual lock, Rear Bumper Bracket $487.07 To Order
Photo Part No Description Price (each) Stock
CG4317E956AA Heatsheild, Rear Diffuser Enquire To Order
CG4317E955AF DIFFUSER REAR $1,558.91 To Order
Photo Part No Description Price (each) Stock
CG4301950AA Mesh, Rear Centre $75.46 To Order
Photo Part No Description Price (each) Stock
4G437810814 Fastener Assembly, 6.2x3, 5.8, Push In $0.66 IN STOCK
Photo Part No Description Price (each) Stock
CG4333612AC DIFFUSER PR ASSY $717.51 To Order
Photo Part No Description Price (each) Stock
1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) $6.02 IN STOCK
Photo Part No Description Price (each) Stock
1X4317D843AA Retainer, Bumper Enquire To Order
Photo Part No Description Price (each) Stock
4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) $3.57 IN STOCK
Photo Part No Description Price (each) Stock
8D333710004 Bracket, Park Aid Sensor Inner $3.46 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
CG4301949AA MESH REAR LOWER LH DIFFUSER $197.70 To Order
Photo Part No Description Price (each) Stock
CG4301948AA MESH REAR LOWER RH DIFFUSER $528.69 To Order
Photo Part No Description Price (each) Stock
4G4313A566BA REAR REFLEX REFLECTOR $41.24 IN STOCK
Photo Part No Description Price (each) Stock
4G4313A565BA Rear Reflex Reflector $41.24 IN STOCK
Photo Part No Description Price (each) Stock
4G4383000BB Nut - Speed M5 $0.41 IN STOCK
Photo Part No Description Price (each) Stock
4G435K238AB Finisher, Exhaust Enquire To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $20.81 To Order
Photo Part No Description Price (each) Stock
6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) $67.85 IN STOCK
View All

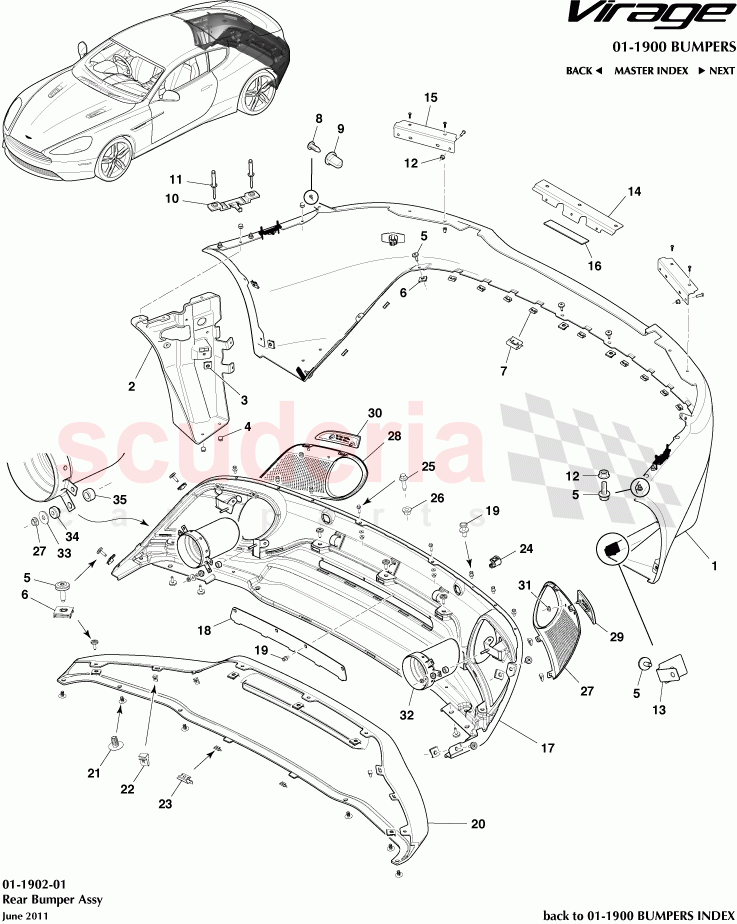

Rear Bumper Assembly of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3317K835CL
Bumper Cover Assy, Rear PDC 		$4,258.13 1
- 8D3317K835DG
Bumper Cover Assy, Rear PDC FED 		- 1 Enquire
1 8D3317D781CC
Bumper Cover, Rear ROW 		- 1 Enquire
1 8D3317D781DC
Bumper Cover, Rear FED 		- 1 Enquire
2 8D3317A881AD
Bracket, RH, Rear Bumper Cover ROW 		- 1 Enquire
2 8D3317A882AC
BRKT RR BMPR CVR LH 		$526.79 1
3 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
IN STOCK 		$9.07 10
4 4G4317K835AA
Rivet 		- 8 Enquire
5 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.11 -
6 1X4317K826AB
Retainer 		- 20 Enquire
7 704383
Clip, Edge 		$1.38 16
8 707135
SCREW 4.2 X 13 SELF TAPPING
IN STOCK 		$0.09 2
9 701656
RETAINER
IN STOCK 		$8.41 2
10 4G43023A50BBPK
External Fender Clip (Pack of 5)
IN STOCK 		$31.64 2
11 701580PK
Rivet Dome Head (Pack of 20)
IN STOCK 		$10.01 4
12 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.93 4
13 8D3317B938AB
BRKT BMPR DIFF TO RWARCH 		$28.14 2
14 4G4317B681AH
BUMPER MOUNTING BRACKET - CENTRE 		$128.92 1
15 4G4317B930AA
Bracket, Bumper Mounting, Outer 		$9.37 2
16 4G4317B681BA
Dual lock, Rear Bumper Bracket 		$487.07 1
17 CG4317E956AA
Heatsheild, Rear Diffuser 		- 1 Enquire
17 CG4317E955AF
DIFFUSER REAR 		$1,558.91 1
18 CG4301950AA
Mesh, Rear Centre 		$75.46 1
19 4G437810814
Fastener Assembly, 6.2x3, 5.8, Push In
IN STOCK 		$0.66 4
20 CG4333612AC
DIFFUSER PR ASSY 		$717.51 1
21 1R12642790AAPK
Scrivet 8mm DIA PNL 3-10mm (Pack of 5)
IN STOCK 		$6.02 6
22 1X4317D843AA
Retainer, Bumper 		- 6 Enquire
23 4G4317F773ABPK
Retainer Grille to Front Bumper (Pack of 10)
IN STOCK 		$3.57 2
24 8D333710004
Bracket, Park Aid Sensor Inner 		$3.46 2
25 703026
Screw, M5 x 16, Hex Flange Head
IN STOCK 		$0.19 2
26 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 2
27 CG4301949AA
MESH REAR LOWER LH DIFFUSER 		$197.70 1
28 CG4301948AA
MESH REAR LOWER RH DIFFUSER 		$528.69 1
29 4G4313A566BA
REAR REFLEX REFLECTOR
IN STOCK 		$41.24 1
30 4G4313A565BA
Rear Reflex Reflector
IN STOCK 		$41.24 1
31 4G4383000BB
Nut - Speed M5
IN STOCK 		$0.41 4
32 4G435K238AB
Finisher, Exhaust 		- 2 Enquire
33 697517PK
WASHER-M6 LGE OD BLK PACK OF 20 		$20.81 4
34 6G335K239BAPK
SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)
35
IN STOCK 		$67.85 4
