Aston Martin Virage - Underbody

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G431610879S Panel assy, floor, RH $497.20 To Order
Photo Part No Description Price (each) Stock
FD3311141AC PANEL FLOOR LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4313058AB TUNNEL REAR SIDE RH Enquire To Order
Photo Part No Description Price (each) Stock
9G4313059AB TUNNEL REAR SIDE LH $147.79 To Order
Photo Part No Description Price (each) Stock
8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH $66.16 To Order
Photo Part No Description Price (each) Stock
8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH $58.20 To Order
Photo Part No Description Price (each) Stock
8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH $55.79 To Order
Photo Part No Description Price (each) Stock
4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 $462.47 To Order
Photo Part No Description Price (each) Stock
4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 $462.47 To Order
Photo Part No Description Price (each) Stock
8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 $87.56 To Order
Photo Part No Description Price (each) Stock
8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 $21.23 To Order
Photo Part No Description Price (each) Stock
8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 $32.13 To Order
Photo Part No Description Price (each) Stock
CG4310120AA MEMBER FLOOR SIDE FRONT $227.38 To Order
Photo Part No Description Price (each) Stock
AG33F001K28AA Bracket, tunnel upper inner Enquire To Order
Photo Part No Description Price (each) Stock
AG3310094AA Member, Reinforcement Front Side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310095AA Member, Reinforcement Front Side, LH $65.14 To Order
Photo Part No Description Price (each) Stock
AG33100A94AA Member, lower reinforce front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG33100A95AA Member, lower reinforce front side, LH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310276AA Member, front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310277AA Member, front side, LH Enquire To Order
Photo Part No Description Price (each) Stock
P0BG33113C18AA Panel, tunnel top front Enquire To Order
Photo Part No Description Price (each) Stock
8G4311160AD Panel, tunnel top Enquire To Order
Photo Part No Description Price (each) Stock
AG33F02599AB Member, body front cross Enquire To Order
Photo Part No Description Price (each) Stock
8G4358111K36GA Tunnel, reinforce rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
P08G4358111K37GA Tunnel, reinforce rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
BG43L1898AA Sill assy, outer, RH, VOLANTE Enquire To Order
BG43C1898AA Sill assy, outer, RH, COUPE Enquire To Order
Photo Part No Description Price (each) Stock
BG43L1899AA ASSEMBLY SILL OUTER LH $1,562.17 To Order
BG43C1899AA Assembly Sill Out LH $817.56 To Order
Photo Part No Description Price (each) Stock
AG3310772AA Extrusion, tunnel, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310773AA Extrusion, tunnel, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.71 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.11 To Order
Photo Part No Description Price (each) Stock
6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm $0.11 To Order
Photo Part No Description Price (each) Stock
6G3333800AA Rivnut, 7/16UNF hex flange $1.46 To Order
Photo Part No Description Price (each) Stock
4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic $1.30 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.11 To Order
View All

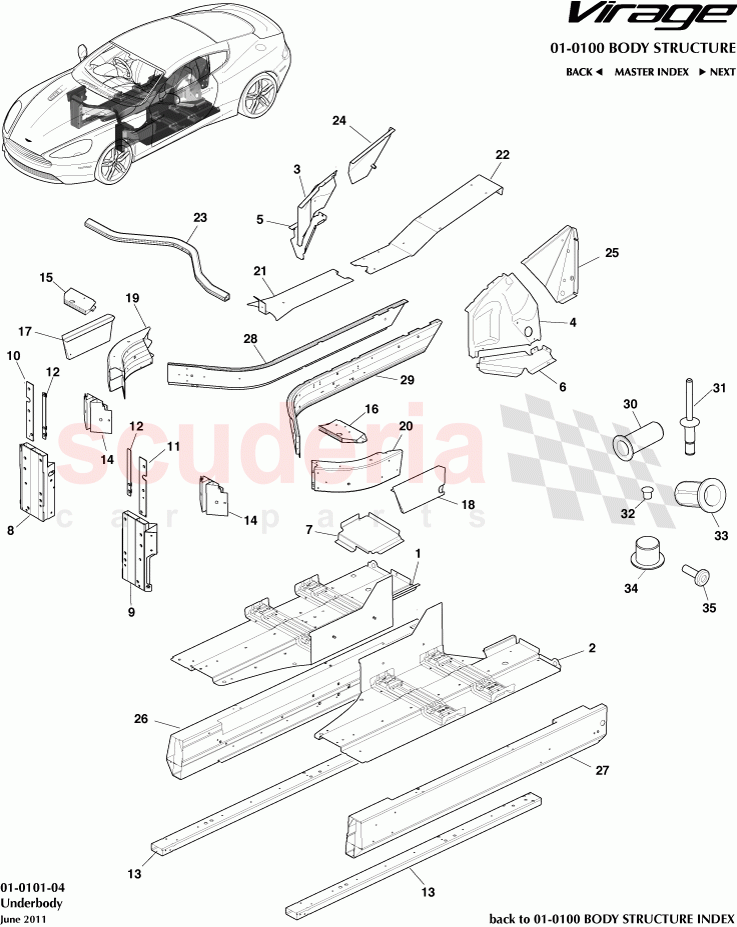

Underbody of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G431610879S
Panel assy, floor, RH
VIN stamp required 		$497.20 1
2 FD3311141AC
PANEL FLOOR LH 		- 1 Enquire
3 8G4313058AB
TUNNEL REAR SIDE RH 		- 1 Enquire
4 9G4313059AB
TUNNEL REAR SIDE LH 		$147.79 1
5 8G4367340AA
PANEL REAR SEAT HEEL BOARD LOWER RH 		$66.16 1
6 8G4367341GA
PANEL REAR SEAT HEEL BOARD LOWER LH 		$58.20 1
7 8G4367342AA
SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH 		$55.79 1
8 4G432010876
FRONT SUBFRAME UPRIGHT ASSY RH-DB9 		$462.47 1
9 4G432010877
FRONT SUBFRAME UPRIGHT ASSY-LH DB9 		$462.47 1
10 8G43434K10AA
NUTPLATE FRONT END MOUNTING OUTER RH M12 		$87.56 1
11 8G43434K11AA
NUTPLATE FRONT END MOUNTING OUTER LH M12 		$21.23 1
12 8G43390725AA
NUT PLATE FRONT END MOUNTING INR M12 		$32.13 2
13 CG4310120AA
MEMBER FLOOR SIDE FRONT 		$227.38 2
14 AG33F001K28AA
Bracket, tunnel upper inner 		- 2 Enquire
15 AG3310094AA
Member, Reinforcement Front Side, RH 		- 1 Enquire
16 AG3310095AA
Member, Reinforcement Front Side, LH 		$65.14 1
17 AG33100A94AA
Member, lower reinforce front side, RH 		- 1 Enquire
18 AG33100A95AA
Member, lower reinforce front side, LH 		- 1 Enquire
19 AG3310276AA
Member, front side, RH 		- 1 Enquire
20 AG3310277AA
Member, front side, LH 		- 1 Enquire
21 P0BG33113C18AA
Panel, tunnel top front 		- 1 Enquire
22 8G4311160AD
Panel, tunnel top 		- 1 Enquire
23 AG33F02599AB
Member, body front cross 		- 1 Enquire
24 8G4358111K36GA
Tunnel, reinforce rear, RH 		- 1 Enquire
25 P08G4358111K37GA
Tunnel, reinforce rear, LH 		- 1 Enquire
26 BG43L1898AA
Sill assy, outer, RH, VOLANTE
VOLANTE 		- 1 Enquire
26 BG43C1898AA
Sill assy, outer, RH, COUPE
COUPE 		- 1 Enquire
27 BG43L1899AA
ASSEMBLY SILL OUTER LH
VOLANTE 		$1,562.17 1
27 BG43C1899AA
Assembly Sill Out LH
COUPE 		$817.56 1
28 AG3310772AA
Extrusion, tunnel, RH 		- 1 Enquire
29 AG3310773AA
Extrusion, tunnel, LH 		- 1 Enquire
30 6G3346768AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 		$1.71 4
31 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.11 -
32 6G3368885AB
SELF PIERCING RIVET 5.0 x 6.0mm 		$0.11 -
33 6G3333800AA
Rivnut, 7/16UNF hex flange 		$1.46 4
34 4G43N800631AA
Rubber Plug, 11mm, Black Thermoplastic 		$1.30 2
35 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		$0.11 6
