Aston Martin V8 Vantage (upto 2016) - Air Con Lines and Fittings (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG3319A705BA A/C TUBE-TXV TO COMP $110.98 To Order
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
702291 Clip, 11-18 x 6.5 x 7 $1.43 To Order
Photo Part No Description Price (each) Stock
699699 'P' CLIP - 16 $2.06 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
AG3319A705AA TUBE-A/C EVAP OUT $134.47 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
HG3319972AA AIR CONDITIONING HOSE PIPE $517.22 IN STOCK
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $1.98 IN STOCK
Photo Part No Description Price (each) Stock
HG3319D719AA TUBE AC DEHY INLET $141.80 IN STOCK
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.63 IN STOCK
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.28 To Order
Photo Part No Description Price (each) Stock
4G4319E891AD Air Conditioning Drier $266.53 IN STOCK
Photo Part No Description Price (each) Stock
AG3319835BA TUB ASY A/C DEHY TO $175.25 To Order
AG3319835BA TUB ASY A/C DEHY TO $175.25 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.94 IN STOCK
Photo Part No Description Price (each) Stock
6G336C778BA Isolator, Oil Cooler Pipe Mounting $20.67 IN STOCK
4G43717B19AB Air con refrigerant $4,758.05 To Order
View All

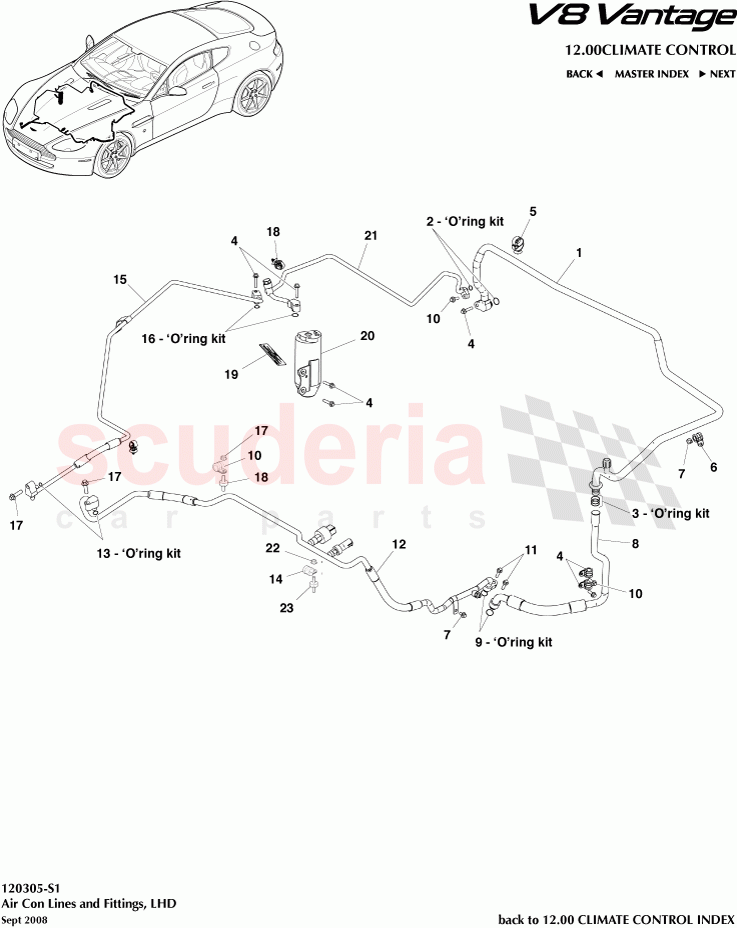

Air Con Lines and Fittings (LHD) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AG3319A705BA
A/C TUBE-TXV TO COMP 		$110.98 1
2 6G438910446PK
O RING-V8 EVAPORATOR PACK OF 2 		$8.66 1
3 4G438910912
O RING
IN STOCK 		$6.11 1
4 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 5
5 702291
Clip, 11-18 x 6.5 x 7 		$1.43 1
6 699699
'P' CLIP - 16 		$2.06 3
7 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 2
8 AG3319A705AA
TUBE-A/C EVAP OUT
IN STOCK 		$134.47 1
9 4G438910909PK
O-Ring Compressor (Pack of 2)
IN STOCK 		$5.39 1
10 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 3
11 703025
Screw, M6 x 25, Hex Flange Head
IN STOCK 		$0.19 2
12 HG3319972AA
AIR CONDITIONING HOSE PIPE
IN STOCK 		$517.22 1
13 4G438910910PK
O Rings-DB9 & V8 Condenser (Pack of 2)
IN STOCK 		$5.39 1
14 699634
P-Clip,13 x 15 x M6
IN STOCK 		$1.98 2
15 HG3319D719AA
TUBE AC DEHY INLET
IN STOCK 		$141.80 1
16 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
IN STOCK 		$5.30 1
17 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
IN STOCK 		$0.63 2
18 701180
Clip, 14 x 4, Push In 		$1.28 5
20 4G4319E891AD
Air Conditioning Drier
IN STOCK 		$266.53 1
21 AG3319835BA
TUB ASY A/C DEHY TO
08MY From (V) D07649 		$175.25 1
21 AG3319835BA
TUB ASY A/C DEHY TO
07MY 		$175.25 1
22 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.94 2
23 6G336C778BA
Isolator, Oil Cooler Pipe Mounting
IN STOCK 		$20.67 2
23 4G43717B19AB
Air con refrigerant 		$4,758.05 -
