Find Your Part

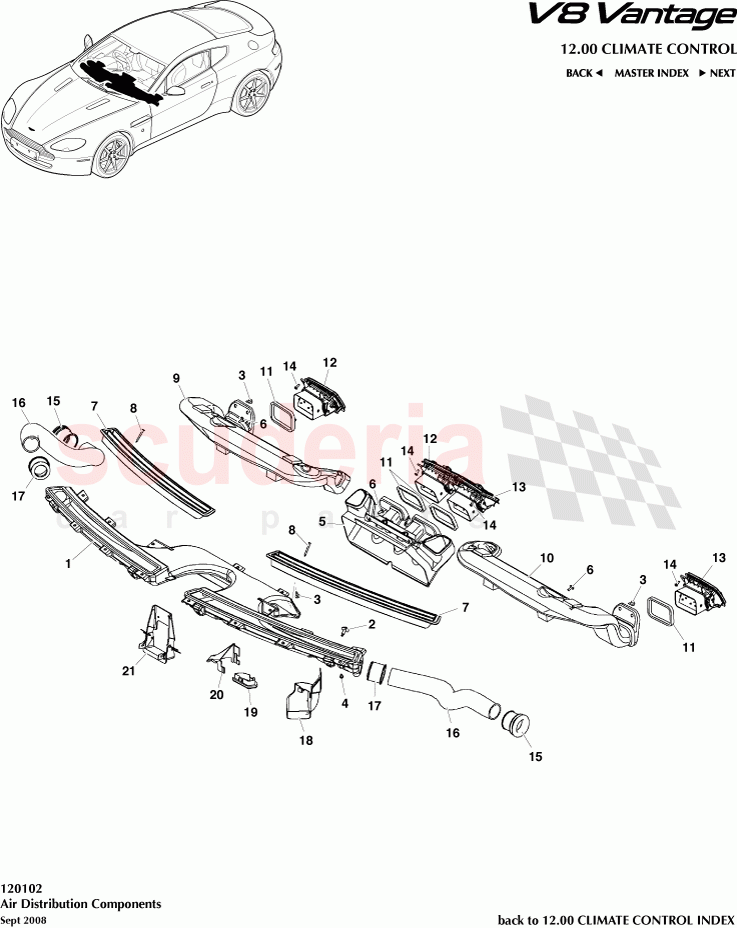

# Part Qty Price (each) BUY/ENQUIRE
1 6G33-04432-AD - Duct Assembly, Windshield Deflector, LHD
1 $87.40
1 6G33-04432-BD - Duct Assembly, Windshield Deflector, RHD
1 $87.40
2 703156 - SCREW/WASHER M6x18 CHROME FREE
08MY From (V) D07649
4 $0.47
3 701157-PK - SCREW & WASHER 4.2x16 DRILLED HD TAP PACK OF 10
08MY From (V) D07649
6 $1.64
4 703068 - 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP
08MY From (V) D07649
12 $0.10
5 8G43-18D404-AC - Duct Assembly, Heater Air Distribution, LHD
08MY From (V) D07649
1 $49.76
5 8G43-18D404-BC - Duct Assembly, Heater Air Distribution, RHD
08MY From (V) D07649
1 $57.81
5 4G43-18D404-AD - DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE LHD
07MY
1 $343.58
5 4G43-18D404-BD - DUCT ASSY - HEATER AIR DISTRIBUTOR CENTRE RHD
07MY
1 $343.58
6 702943 - Rivet, 3.2 x 12.5, Blind Al Dome Head
08MY From (V) D07649
4 $0.06
7 4G43-18C491-AJ - GRILLE - WINDOW DEFROST
2 $45.28
8 6G33-79231-AB - M3.5 X 38 SCR
4 Enquire
9 8G43-19C804-AD - DCT ASY AC I/PNL CTR
08MY From (V) D07649
1 $43.85
9 6G33-19C735-AB - DUCT - AIRCON INSTRUMENT PANEL REGISTER RH
07MY
1 $24.67
10 8G43-19C805-AD - DCT ASY AC I/PNL CTR
08MY From (V) D07649
1 $43.85
10 6G33-19C850-AB - DUCT - AIRCON INSTRUMENT PANEL REGISTER LH
07MY
1 $34.22
11 4G43-18D404-CA - FOAM SEAL - AIR DISTRIBUTION DUCTS
4 $1.54
12 8D33-046B30-BB - Register Assembly, RH, Iridium Silver
Silver
2 $89.85
12 4G43-046B30-BB - Register Assembly, Air Con, RH
Black
2 $90.69
13 8D33-046B31-BB - Register Assembly, LH, Iridium Silver
Silver
2 $89.85
13 4G43-046B31-BB - Register Assembly, Air Con, LH
Black
2 $87.97
14 701447 - Screw, M4 x 12, Pan Head, Torx Screw
08MY From (V) D07649
12 $0.10
15 4G43-C046B80-AC - SE I/PNL DEF OPG GRL
2 $5.71
16 4G43-19E658-AC - Hose, A/C Window Demister
2 $13.67
17 4G43-014K00-BC - AIRCON FOOTWELL DUCT LH - RHD ASSY
07MY
1 $84.28
17 4G43-19E680-AD - Connector, A/C Demister Hose
2 $5.71
18 9D33-014K97-AA - Duct Assembly, Aircon Footwell, LH, LHD
9.5MY
1 $4.71
18 8G43-014K97-BB - Duct Assembly, Aircon Footwell, LH, RHD
08MY From (V) D07649
1 $24.21
20 9D33-014K96-AA - Duct Assembly, Aircon Footwell, RH, RHD
08MY From (V) D07649
1 $4.71
19 4G43-014K00-DB - AIRCON FOOTWELL DUCT RH - RHD ASSY
07MY
1 $114.39
19 7G43-014K00-AA - Plug Assembly, Foot Duct Outlet
1 $8.11
20 8G43-014K96-AB - Duct Assembly, Aircon Footwell, RH, LHD
08MY From (V) D07649
1 $24.21
21 7G43-370807-AB - ASSEMBLY TPM BRACKET
08MY From (V) D07649
1 $49.24
21 9G43-370807-AA - Bracket Assembly, Tyre Pressure Monitoring
07MY
1 $7.18
