Fuel Filler Door Latches And Mechanism

Aston Martin V12 Vantage (upto 2016)

Find Your Part

Aston Martin V12 Vantage (upto 2016) - Fuel Filler Door Latches and Mechanism

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33C405A02BA DR FU/FL OPG $40.35 To Order
Photo Part No Description Price (each) Stock
EG33C405B96AA ASY FU/FL DR LATCH $412.86 To Order
Photo Part No Description Price (each) Stock
4G433710067 Actuator Assy, Fuel Filler $315.89 To Order
Photo Part No Description Price (each) Stock
6G3340180BA Cable, Fuel Filler Flap Release $42.77 To Order
Photo Part No Description Price (each) Stock
4G43N02091AB Tie, Wrap $0.39 To Order
Photo Part No Description Price (each) Stock
GG339030AA CAP FUEL TANK $263.11 To Order
6G33405B46BB Bracket Assy, Fuel Filler Actuator $33.48 To Order
View All

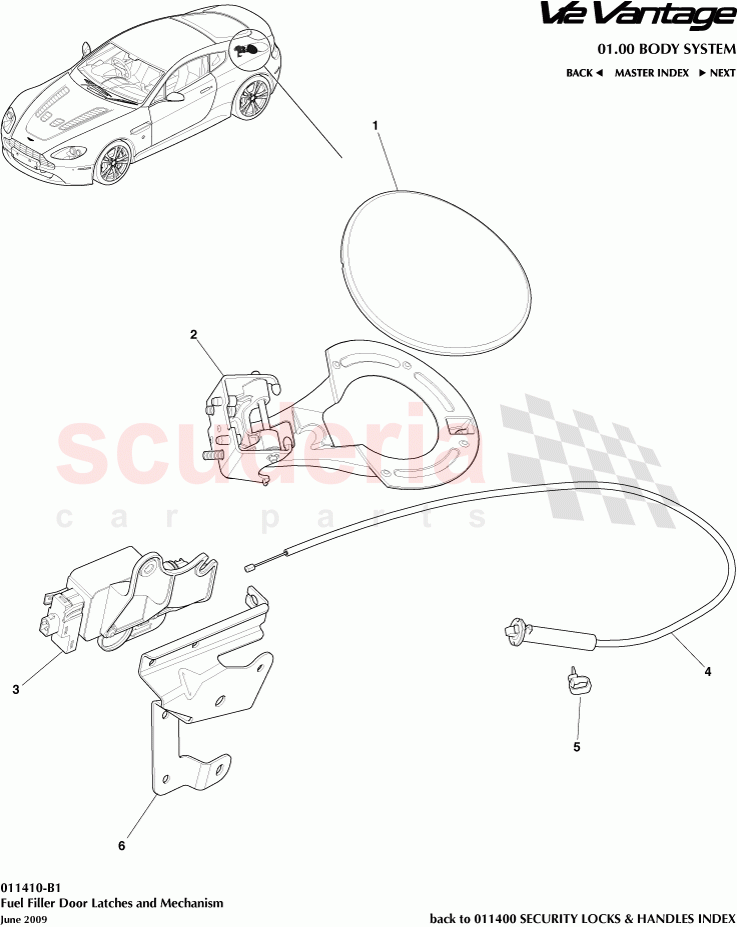

Fuel Filler Door Latches and Mechanism of Aston Martin Aston Martin V12 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G33C405A02BA
DR FU/FL OPG 		$40.35 1
2 EG33C405B96AA
ASY FU/FL DR LATCH 		$412.86 1
3 4G433710067
Actuator Assy, Fuel Filler 		$315.89 1
4 6G3340180BA
Cable, Fuel Filler Flap Release 		$42.77 1
5 4G43N02091AB
Tie, Wrap 		$0.39 1
6 GG339030AA
CAP FUEL TANK
see 100104-S1/S2 item 1 		$263.11 1
6 6G33405B46BB
Bracket Assy, Fuel Filler Actuator 		$33.48 1
