Body Components

Aston Martin V12 Vantage (upto 2016)

Find Your Part

Aston Martin V12 Vantage (upto 2016) - Body Components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BD2371470AC NUTPLATE FRT CRSH RH $22.08 To Order
Photo Part No Description Price (each) Stock
6G336367912AB Nutplate Assy, Crush Can, Lower, RH $11.16 IN STOCK
Photo Part No Description Price (each) Stock
6G336367913AB Nutplate Assy, Crush Can, Lower, LH $11.16 To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder $5.39 IN STOCK
Photo Part No Description Price (each) Stock
AD2371470AA NUTPLATE FRONT CRASH STRUCTURE INNER M8 $6.29 To Order
Photo Part No Description Price (each) Stock
AD23108A75AA Brace, Front Cross $231.00 To Order
Photo Part No Description Price (each) Stock
4G43108A86CA Bracket, Front Cross Brace, RH $118.50 To Order
Photo Part No Description Price (each) Stock
4G43108A87CA Bracket, Front Cross Brace, LH $118.50 To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive $1.25 IN STOCK
Photo Part No Description Price (each) Stock
4G432011136 REINF BDY FRT C/BARS $123.19 To Order
Photo Part No Description Price (each) Stock
4G432011136 REINF BDY FRT C/BARS $123.19 To Order
Photo Part No Description Price (each) Stock
6G3316798BA BRACKET HOOD HINGE SUPPORT RIGHT HAND $183.84 To Order
Photo Part No Description Price (each) Stock
6G3316799BA BRACKET HOOD HINGE SUPPORT LEFT HAND $183.84 To Order
Photo Part No Description Price (each) Stock
6G335340BA Bracket, ECU Mounting, RH $130.51 To Order
Photo Part No Description Price (each) Stock
6G335341BA Bracket, ECU Mounting, LH $115.42 IN STOCK
Photo Part No Description Price (each) Stock
4G43061B70AA CAP DUST COVER $0.65 To Order
Photo Part No Description Price (each) Stock
4G4316740AA PAD - HOOD ON COWL $15.92 To Order
Photo Part No Description Price (each) Stock
AD23111K37AA REINF CENTRE TUNNEL $37.93 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
AD23L17C857AA SHIELD REAR BUMPER OPENING $592.07 To Order
Photo Part No Description Price (each) Stock
6G33611D38BA Bracket Assembly, Front Seat Belt Retainer, RH $148.10 To Order
Photo Part No Description Price (each) Stock
6G33611D39BA Bracket Assembly, Front Seat Belt Retainer, LH $148.10 To Order
Photo Part No Description Price (each) Stock
703142 Bolt, M8 x 38, Hex Flange Head $0.66 To Order
Photo Part No Description Price (each) Stock
6G335D022AD BRACKET REAR SUB FRAME STABILISER $60.17 To Order
Photo Part No Description Price (each) Stock
6G339N172AE ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP $624.28 To Order
Photo Part No Description Price (each) Stock
6G339A032AE Heatshield, fuel tank $118.50 To Order
Photo Part No Description Price (each) Stock
6G33WE600041AB WASHER STAR LOCK $1.18 To Order
Photo Part No Description Price (each) Stock
W710409S300 Rivet Enquire To Order
Photo Part No Description Price (each) Stock
702509 STUD M8x23 + M6x14 HEX FLANGE PILOT $2.36 IN STOCK
Photo Part No Description Price (each) Stock
4G439N070AB INSULATION - FUEL TANK SUPPORT $2.41 To Order
Photo Part No Description Price (each) Stock
6G3318A000AD Member, Rear Shock Absorber Mounting, RH $873.04 To Order
Photo Part No Description Price (each) Stock
6G3318A001AD Member, Rear Shock Absorber Mounting, LH $873.04 To Order
Photo Part No Description Price (each) Stock
703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE $9.85 To Order
Photo Part No Description Price (each) Stock
4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 $14.87 To Order
Photo Part No Description Price (each) Stock
P06G3328442AG Brace, body rear centre panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
P06G3328443AG Brace, body rear centre panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
AG3310N873AA Mounting Panel, Amplifier $50.62 To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $4.78 IN STOCK
Photo Part No Description Price (each) Stock
9G43111C60GF Panel, Dummy Floor Front, LHD $398.33 To Order
4G43111C61AE Panel, Dummy Floor Front, RHD $398.32 To Order
Photo Part No Description Price (each) Stock
3786191 EDGE PROTECTION STRIP (280mm) $1.62 To Order
Photo Part No Description Price (each) Stock
3786250 Edge Protection, Switch Harness, 150mm Enquire To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.11 IN STOCK
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front $43.27 To Order
View All

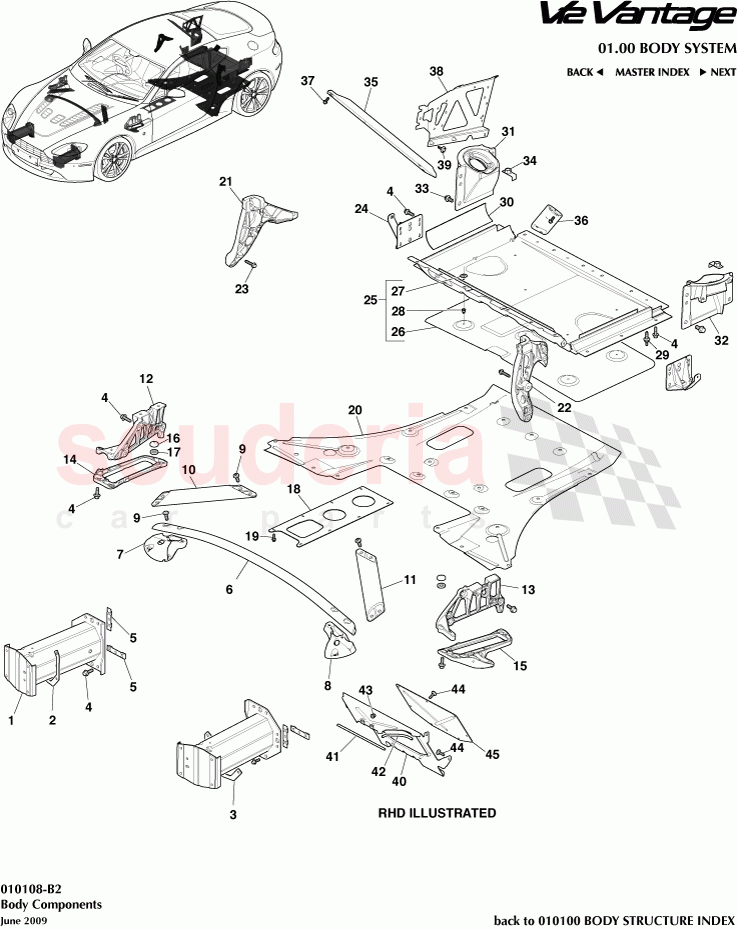

Body Components of Aston Martin Aston Martin V12 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BD2371470AC
NUTPLATE FRT CRSH RH 		$22.08 2
2 6G336367912AB
Nutplate Assy, Crush Can, Lower, RH
IN STOCK 		$11.16 1
3 6G336367913AB
Nutplate Assy, Crush Can, Lower, LH 		$11.16 1
4 703120
Screw M8-1.25-90 Hex Socket Head Shoulder
IN STOCK 		$5.39 46
5 AD2371470AA
NUTPLATE FRONT CRASH STRUCTURE INNER M8 		$6.29 4
6 AD23108A75AA
Brace, Front Cross 		$231.00 1
7 4G43108A86CA
Bracket, Front Cross Brace, RH 		$118.50 1
8 4G43108A87CA
Bracket, Front Cross Brace, LH 		$118.50 1
9 702209
Bolt, M10 x 25, Torque Drive
IN STOCK 		$1.25 12
10 4G432011136
REINF BDY FRT C/BARS
Order in pairs 		$123.19 1
11 4G432011136
REINF BDY FRT C/BARS
Order in pairs 		$123.19 1
12 6G3316798BA
BRACKET HOOD HINGE SUPPORT RIGHT HAND 		$183.84 1
13 6G3316799BA
BRACKET HOOD HINGE SUPPORT LEFT HAND 		$183.84 1
14 6G335340BA
Bracket, ECU Mounting, RH 		$130.51 1
15 6G335341BA
Bracket, ECU Mounting, LH
IN STOCK 		$115.42 1
16 4G43061B70AA
CAP DUST COVER 		$0.65 2
17 4G4316740AA
PAD - HOOD ON COWL 		$15.92 2
18 AD23111K37AA
REINF CENTRE TUNNEL 		$37.93 1
19 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 8
20 AD23L17C857AA
SHIELD REAR BUMPER OPENING 		$592.07 1
21 6G33611D38BA
Bracket Assembly, Front Seat Belt Retainer, RH 		$148.10 1
22 6G33611D39BA
Bracket Assembly, Front Seat Belt Retainer, LH 		$148.10 1
23 703142
Bolt, M8 x 38, Hex Flange Head 		$0.66 8
24 6G335D022AD
BRACKET REAR SUB FRAME STABILISER 		$60.17 2
25 6G339N172AE
ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP 		$624.28 1
26 6G339A032AE
Heatshield, fuel tank 		$118.50 1
27 6G33WE600041AB
WASHER STAR LOCK 		$1.18 5
28 W710409S300
Rivet 		- 5 Enquire
29 702509
STUD M8x23 + M6x14 HEX FLANGE PILOT
IN STOCK 		$2.36 4
30 4G439N070AB
INSULATION - FUEL TANK SUPPORT 		$2.41 4
31 6G3318A000AD
Member, Rear Shock Absorber Mounting, RH 		$873.04 1
32 6G3318A001AD
Member, Rear Shock Absorber Mounting, LH 		$873.04 1
33 703185
M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE 		$9.85 8
34 4G43501B0AC
NUT PLATE REAR SUB FRAME REAR M14 		$14.87 2
35 P06G3328442AG
Brace, body rear centre panel, RH
Order in pairs 		- 1 Enquire
36 P06G3328443AG
Brace, body rear centre panel, LH
Order in pairs 		- 1 Enquire
37 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.25 8
38 AG3310N873AA
Mounting Panel, Amplifier 		$50.62 1
39 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
IN STOCK 		$4.78 6
40 9G43111C60GF
Panel, Dummy Floor Front, LHD
not illustrated 		$398.33 1
40 4G43111C61AE
Panel, Dummy Floor Front, RHD 		$398.32 1
41 3786191
EDGE PROTECTION STRIP (280mm) 		$1.62 1
42 3786250
Edge Protection, Switch Harness, 150mm 		- 1 Enquire
43 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.11 2
44 4G43111B48AB
Panel, Dummy Floor Cover, Front 		$43.27 1
