Aston Martin Vanquish (2012+) - Air Con Lines and Fittings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD3319972AC Tube Assy, A/C Compressor to Condenser $600.59 To Order
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.63 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
CD3319D719AC Tube Assy, Condenser to Receiver Drier $128.47 To Order
Photo Part No Description Price (each) Stock
4G4319E891AD Air Conditioning Drier $266.46 IN STOCK
Photo Part No Description Price (each) Stock
4G436147XAD BRACKET - AIRCON / ELECTRICAL $38.06 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.48 IN STOCK
Photo Part No Description Price (each) Stock
CD3319A705AA Tube Assy, A/C Evaporator Outlet lower $163.52 To Order
Photo Part No Description Price (each) Stock
AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper $322.61 To Order
Photo Part No Description Price (each) Stock
4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) $5.30 IN STOCK
Photo Part No Description Price (each) Stock
4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) $5.39 IN STOCK
Photo Part No Description Price (each) Stock
4G438910909PK O-Ring Compressor (Pack of 2) $5.39 IN STOCK
Photo Part No Description Price (each) Stock
4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3 $13.31 To Order
Photo Part No Description Price (each) Stock
AG4319A705BA Tube Assy, A/C Evaporator Outlet, Upper $179.20 To Order
Photo Part No Description Price (each) Stock
AG4319835CA Tube Assy, Receiver Drier to Evaporator $175.21 To Order
Photo Part No Description Price (each) Stock
AG4319835BA Tube Assy, Receiver Drier to Evaporator $698.49 To Order
Photo Part No Description Price (each) Stock
4G434073AAA CLAMP - LIQ $4.82 To Order
Photo Part No Description Price (each) Stock
701182 Clip, Pipe Swivel $1.87 To Order
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.28 To Order
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $1.98 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
1R128910192 Switch, A/C High Pressure $522.19 To Order
Photo Part No Description Price (each) Stock
AG438911295 SW ASY-A/C PRES CTOF $558.60 To Order
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $61.86 IN STOCK
Photo Part No Description Price (each) Stock
702291 Clip, 11-18 x 6.5 x 7 $1.43 To Order
View All

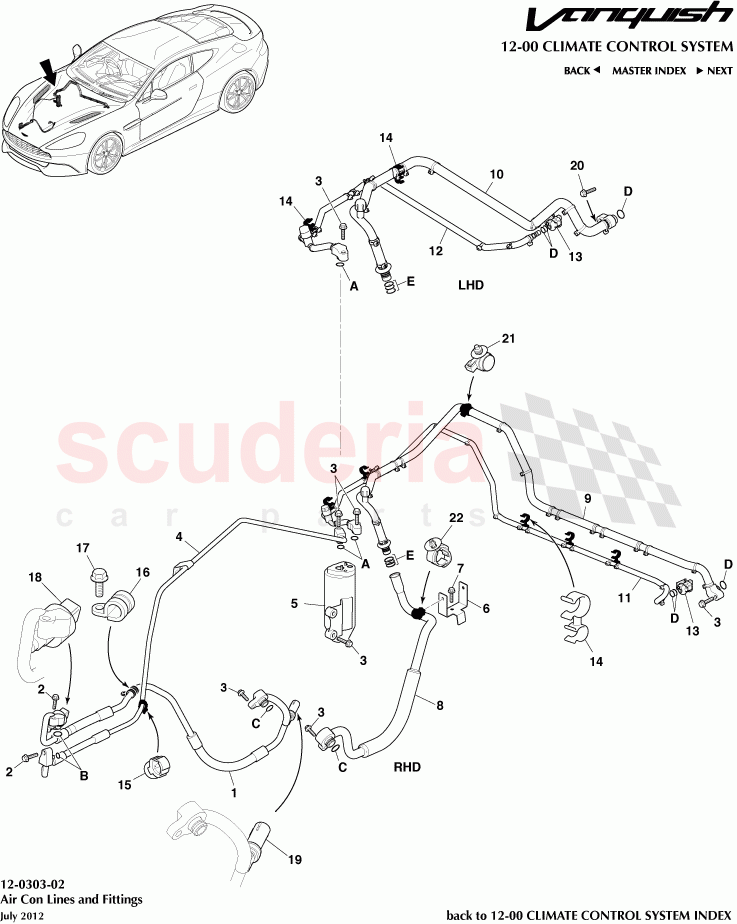

Air Con Lines and Fittings of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
A 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
Pack of 2
IN STOCK 		$5.30 1
B 4G438910910PK
O Rings-DB9 & V8 Condenser (Pack of 2)
Pack of 2
IN STOCK 		$5.39 1
C 4G438910909PK
O-Ring Compressor (Pack of 2)
Pack of 2
IN STOCK 		$5.39 1
D 4G438910911PK
O RINGS-DB9 EVAPORATOR-PACK OF 3
Pack of 3 		$13.31 1
E 4G438910912
O RING
Pack of 3
IN STOCK 		$6.11 1
1 CD3319972AC
Tube Assy, A/C Compressor to Condenser 		$600.59 1
2 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
IN STOCK 		$0.63 2
3 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 7
4 CD3319D719AC
Tube Assy, Condenser to Receiver Drier 		$128.47 1
5 4G4319E891AD
Air Conditioning Drier
IN STOCK 		$266.46 1
6 4G436147XAD
BRACKET - AIRCON / ELECTRICAL
RHD Only 		$38.06 1
7 703151
Screw M6x16 Washer Hex HD Chrome Free
RHD Only
IN STOCK 		$0.48 1
8 CD3319A705AA
Tube Assy, A/C Evaporator Outlet lower 		$163.52 1
9 AG4319A705CA
Tube Assy, A/C Evaporator Outlet, Upper 		$322.61 RHD
10 AG4319A705BA
Tube Assy, A/C Evaporator Outlet, Upper
LHD 		$179.20 1
11 AG4319835CA
Tube Assy, Receiver Drier to Evaporator
RHD 		$175.21 1
12 AG4319835BA
Tube Assy, Receiver Drier to Evaporator
LHD 		$698.49 1
13 4G434073AAA
CLAMP - LIQ 		$4.82 1
14 701182
Clip, Pipe Swivel
RHD Qty 5, LHD Qty 2 		$1.87 A/R
15 701180
Clip, 14 x 4, Push In 		$1.28 1
16 699634
P-Clip,13 x 15 x M6
IN STOCK 		$1.98 1
17 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 1
18 1R128910192
Switch, A/C High Pressure 		$522.19 1
19 AG438911295
SW ASY-A/C PRES CTOF 		$558.60 1
20 703025
Screw, M6 x 25, Hex Flange Head
LHD Only
IN STOCK 		$0.19 1
21 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100
IN STOCK 		$61.86 2
22 702291
Clip, 11-18 x 6.5 x 7
RHD Only 		$1.43 1
