Wiper Linkage

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Wiper Linkage

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG4317504DB LINKAGE ASY W/S WPR $1,567.73 To Order
Photo Part No Description Price (each) Stock
702946 Bolt, M6 x 35, Hex Head $0.71 IN STOCK
Photo Part No Description Price (each) Stock
DG4317510AA Outboard Mount, Wiper Linkage $35.31 To Order
Photo Part No Description Price (each) Stock
702293 Screw, M6 x 12mm, Pan Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
DG4317506AA Adjuster Assembly, Inboard $20.15 To Order
Photo Part No Description Price (each) Stock
DG4317508AA Adjuster $11.05 To Order
Photo Part No Description Price (each) Stock
NSS  Seat Belt Loops Frt/ Rear and Left/Right Enquire To Order
Photo Part No Description Price (each) Stock
DG4317505AB Eyebolt, Wiper Mechanism Enquire To Order
Photo Part No Description Price (each) Stock
DG4317507AA Adjuster Assembly, Outboard $34.05 To Order
Photo Part No Description Price (each) Stock
702994 Nut, M6, Hex Head Thin $0.44 IN STOCK
Photo Part No Description Price (each) Stock
703749 Nut, M6, Hex Flange Head $0.63 IN STOCK
Photo Part No Description Price (each) Stock
DG4317500DA Slave Spindle Bracket, RHD $508.42 To Order
Photo Part No Description Price (each) Stock
702839PK SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) $5.21 IN STOCK
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE $0.66 IN STOCK
Photo Part No Description Price (each) Stock
AG4367350AA WIPER MOTOR TRICO $467.77 To Order
Photo Part No Description Price (each) Stock
703739 Nut, M8, Hex Flange Head $1.11 To Order
Photo Part No Description Price (each) Stock
705133 Screw, Pan Head Torx, M6 x 16 Enquire To Order
Photo Part No Description Price (each) Stock
6G430110042 Retainer, Connector $0.33 IN STOCK
View All

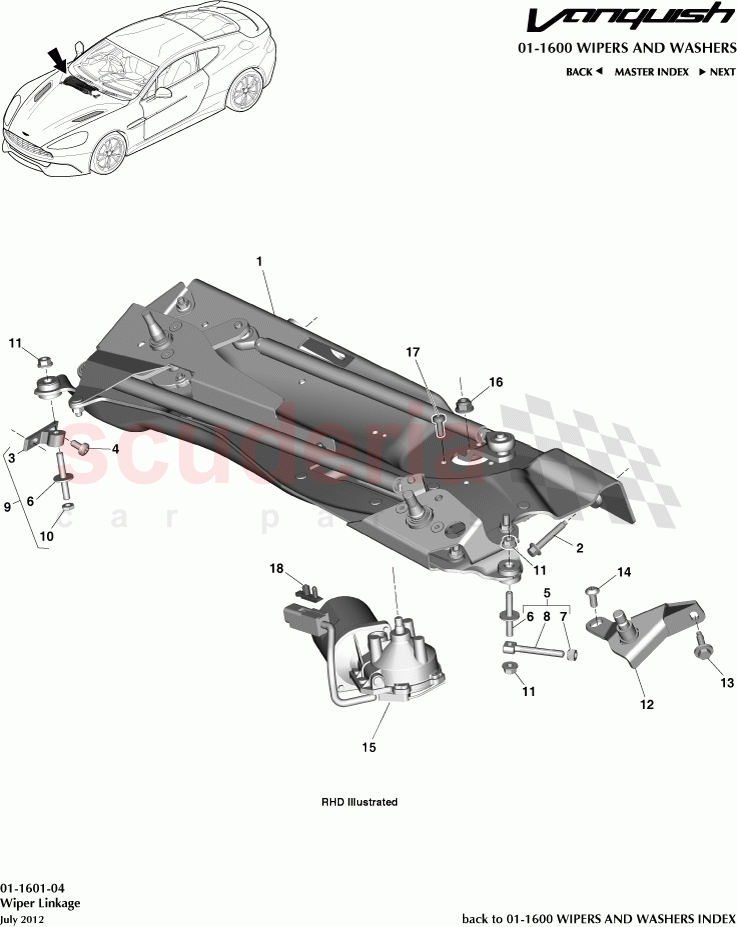

Wiper Linkage of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG4317504CA
Linkage Assembly, Windscreen Wiper, LHD
Includes Wiper Motor 		$1,340.73 1
- DG4317500CA
Slave Spindle Bracket, LHD 		$508.42 1
1 DG4317504DB
LINKAGE ASY W/S WPR
Includes Wiper Motor 		$1,567.73 1
2 702946
Bolt, M6 x 35, Hex Head
IN STOCK 		$0.71 2
3 DG4317510AA
Outboard Mount, Wiper Linkage 		$35.31 1
4 702293
Screw, M6 x 12mm, Pan Head
IN STOCK 		$0.25 2
5 DG4317506AA
Adjuster Assembly, Inboard 		$20.15 1
6 DG4317508AA
Adjuster 		$11.05 2
7 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Use Item 5 		- 1 Enquire
8 DG4317505AB
Eyebolt, Wiper Mechanism 		- 1 Enquire
9 DG4317507AA
Adjuster Assembly, Outboard 		$34.05 1
10 702994
Nut, M6, Hex Head Thin
IN STOCK 		$0.44 1
11 703749
Nut, M6, Hex Flange Head
IN STOCK 		$0.63 3
12 DG4317500DA
Slave Spindle Bracket, RHD 		$508.42 1
13 702839PK
SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10)
Pack of 10
IN STOCK 		$5.21 2
14 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
IN STOCK 		$0.66 1
15 AG4367350AA
WIPER MOTOR TRICO 		$467.77 1
16 703739
Nut, M8, Hex Flange Head 		$1.11 1
17 705133
Screw, Pan Head Torx, M6 x 16 		- 3 Enquire
18 6G430110042
Retainer, Connector
IN STOCK 		$0.33 1
