Name: Exhaust Manifolds, Heatshields and Sensors
Rating: 5.0 (1 reviews)

Exhaust Manifolds, Heatshields and Sensors of Aston Martin Aston Martin V12 Zagato

View All

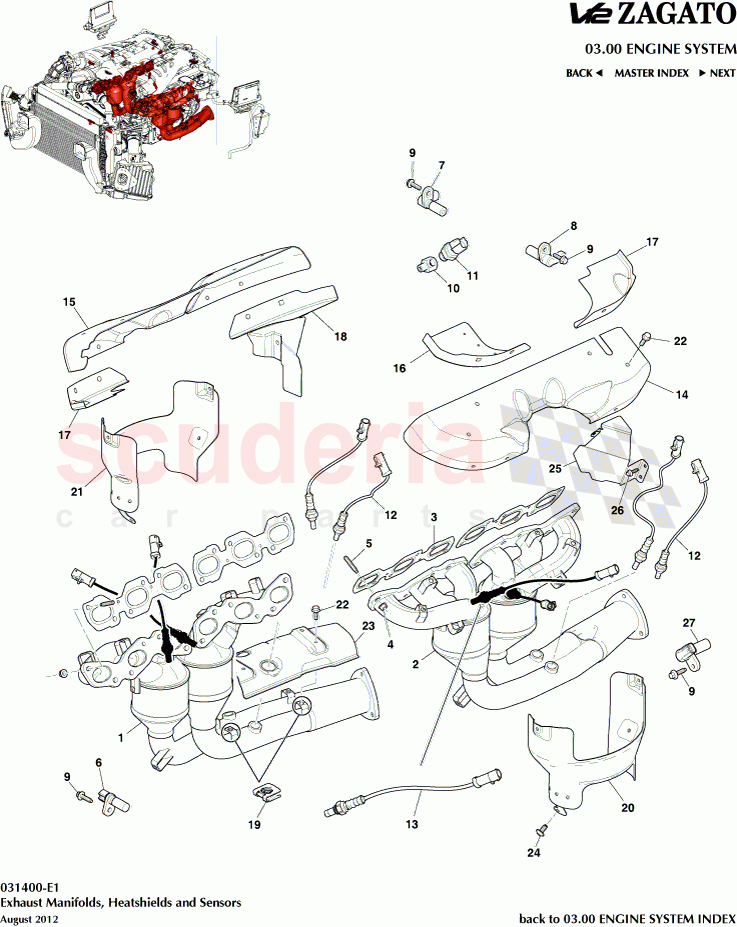

Aston Martin V12 Zagato - Exhaust Manifolds, Heatshields and Sensors

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435G236BB	MANIFOLD EXHAUST RH	$4,798.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8G435G232BB	Manifold Exhaust LH	$4,798.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510003	Gasket Exhaust Manifold	$57.28	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	697775PK	Nut M8 Hex Flange Head (Pack of 10)	$37.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	$9.71	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910475	Sensor, Crankshaft, Front	$40.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433910014	Sensor, Crankshaft, Rear	$624.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785755	Sensor, Crankshaft Timing	$253.48	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	ED230610174	ADAPTOR-O/PRESS SWTC	$289.79	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	$8.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	$246.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	$249.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439A462AC	Heat Shield, Exhaust Manifold, LH	$117.44	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462BC	Heat Shield, Exhaust Manifold, RH	$117.44	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	$102.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$102.77	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	$117.44	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	$2.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG439N454AC	Heat Shield, Catalyst, LH	$149.82	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454BC	Heat Shield, Catalyst, RH	$587.78	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD33C5K286AA	Heat Shield, Exhaust Pipe, RH	$102.87	To Order

Photo	Part No	Description	Price (each)	Stock
	703691	Screw, M6 x 12, Pan Head Internal Torx	$7.26	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336K342BA	Heat Shield, Crank Sensor	$18.42	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433910014	Sensor, Crankshaft, Rear	$624.64	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	8G435G236BB	MANIFOLD EXHAUST RH IN STOCK	8G435G236BB MANIFOLD EXHAUST RH IN STOCK	$4,798.77	1
2	8G435G232BB	Manifold Exhaust LH	8G435G232BB Manifold Exhaust LH	$4,798.77	1
3	4G433510003	Gasket Exhaust Manifold ARRIVING SOON	4G433510003 Gasket Exhaust Manifold ARRIVING SOON	$57.28	4
4	697775PK	Nut M8 Hex Flange Head (Pack of 10) IN STOCK	697775PK Nut M8 Hex Flange Head (Pack of 10) Pack of 10 IN STOCK	$37.87	24
5	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	$9.71	24
6	1R123910475	Sensor, Crankshaft, Front IN STOCK	1R123910475 Sensor, Crankshaft, Front IN STOCK	$40.50	1
7	4G433910014	Sensor, Crankshaft, Rear IN STOCK	4G433910014 Sensor, Crankshaft, Rear IN STOCK	$624.64	1
8	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing	$253.48	1
9	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	$1.20	4
10	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	$289.79	1
11	1R123910532	Switch, Oil Pressure IN STOCK	1R123910532 Switch, Oil Pressure IN STOCK	$8.01	1
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter IN STOCK	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter IN STOCK	$246.30	4
13	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear IN STOCK	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear IN STOCK	$249.32	4
14	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH	$117.44	1
15	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH	$117.44	1
16	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front	$102.77	1
17	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR RH Front & LH Rear	$102.77	2
18	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	8G439A462AD Heat Shield, Exhaust Manifold, RH Rear	$117.44	1
19	699736	Clip, Exhaust Heatshields IN STOCK	699736 Clip, Exhaust Heatshields IN STOCK	$2.73	A/R
20	BG439N454AC	Heat Shield, Catalyst, LH	BG439N454AC Heat Shield, Catalyst, LH	$149.82	1
21	BG439N454BC	Heat Shield, Catalyst, RH	BG439N454BC Heat Shield, Catalyst, RH	$587.78	1
22	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	$0.67	A/R
23	CD33C5K286AA	Heat Shield, Exhaust Pipe, RH	CD33C5K286AA Heat Shield, Exhaust Pipe, RH	$102.87	1
24	703691	Screw, M6 x 12, Pan Head Internal Torx	703691 Screw, M6 x 12, Pan Head Internal Torx	$7.26	8
25	CD336K342BA	Heat Shield, Crank Sensor	CD336K342BA Heat Shield, Crank Sensor	$18.42	1
26	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head IN STOCK	$0.19	2
27	4G433910014	Sensor, Crankshaft, Rear IN STOCK	4G433910014 Sensor, Crankshaft, Rear IN STOCK	$624.64	1

Exhaust Manifolds, Heatshields And Sensors

Aston Martin V12 Zagato

Aston Martin V12 Zagato - Exhaust Manifolds, Heatshields and Sensors
