Engine Cooling (Engine Fit)

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Engine Cooling (Engine Fit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G438A586AC Housing & Connection Assy, Engine Thermostat $1,212.54 To Order
Photo Part No Description Price (each) Stock
4G4E8575AB Thermostat $315.93 IN STOCK
Photo Part No Description Price (each) Stock
3285116 Seal Thermostat $159.41 IN STOCK
Photo Part No Description Price (each) Stock
3285114 O Ring - Seal Housing $2.36 IN STOCK
Photo Part No Description Price (each) Stock
6G433910080 Sensor, Engine Coolant Temperature $434.18 IN STOCK
Photo Part No Description Price (each) Stock
3285112 O Ring - Water Outlet $5.25 IN STOCK
Photo Part No Description Price (each) Stock
3285113 O RING SEAL $0.81 IN STOCK
Photo Part No Description Price (each) Stock
702855 BOLT &WASHER-M6x30 HEX FLG PIL $2.62 To Order
Photo Part No Description Price (each) Stock
7G438A588AA Bracket, Engine Thermostat Connector $87.17 To Order
Photo Part No Description Price (each) Stock
AD238K168AB WATER PUMP ASSEMBLY $1,752.05 To Order
Photo Part No Description Price (each) Stock
4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) $715.39 IN STOCK
Photo Part No Description Price (each) Stock
1R123210531 WATER PUMP PRESS IN SEAL $31.47 IN STOCK
Photo Part No Description Price (each) Stock
AD238A513AB Cover Assy, Water Pump Enquire To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE $1.46 To Order
Photo Part No Description Price (each) Stock
585104 Pulley, Water Pump $592.54 To Order
Photo Part No Description Price (each) Stock
702843 Screw and Washer, M8 x 1.25 x 19, Hex Head $1.13 To Order
Photo Part No Description Price (each) Stock
703694 BOLT & WASHER M8x45 HF PIL 8 $5.38 To Order
Photo Part No Description Price (each) Stock
702842 Bolt, M8 x 1.25 x 41, Hex Flange Head $0.33 To Order
Photo Part No Description Price (each) Stock
NY738507AA WATER PUMP GASKET $37.56 IN STOCK
View All

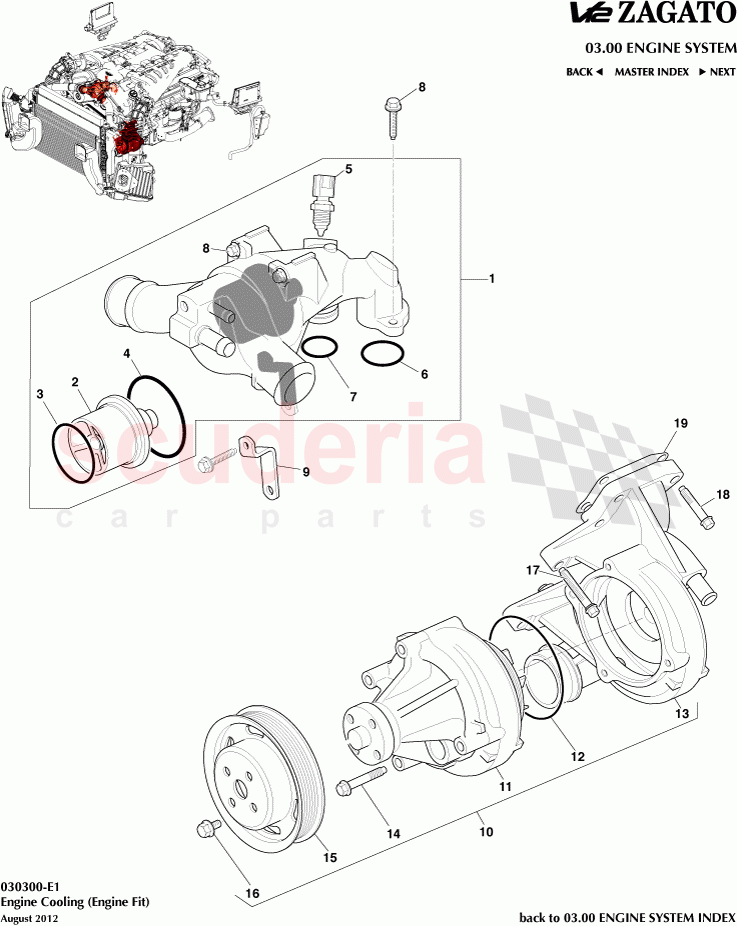

Engine Cooling (Engine Fit) of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G438A586AC
Housing & Connection Assy, Engine Thermostat 		$1,212.54 1
2 4G4E8575AB
Thermostat
IN STOCK 		$315.93 1
3 3285116
Seal Thermostat
IN STOCK 		$159.41 1
4 3285114
O Ring - Seal Housing
IN STOCK 		$2.36 1
5 6G433910080
Sensor, Engine Coolant Temperature
IN STOCK 		$434.18 1
6 3285112
O Ring - Water Outlet
IN STOCK 		$5.25 1
7 3285113
O RING SEAL
IN STOCK 		$0.81 1
8 702855
BOLT &WASHER-M6x30 HEX FLG PIL 		$2.62 6
9 7G438A588AA
Bracket, Engine Thermostat Connector 		$87.17 1
10 AD238K168AB
WATER PUMP ASSEMBLY 		$1,752.05 1
11 4G430510957
WATER PUMP (NOSE CONE ASSEMBLY)
IN STOCK 		$715.39 1
12 1R123210531
WATER PUMP PRESS IN SEAL
IN STOCK 		$31.47 1
13 AD238A513AB
Cover Assy, Water Pump 		- 1 Enquire
14 703194
BOLT M8x45 HEX FLNG CHROME FREE 		$1.46 4
15 585104
Pulley, Water Pump 		$592.54 1
16 702843
Screw and Washer, M8 x 1.25 x 19, Hex Head 		$1.13 4
17 703694
BOLT & WASHER M8x45 HF PIL 8 		$5.38 3
18 702842
Bolt, M8 x 1.25 x 41, Hex Flange Head 		$0.33 3
19 NY738507AA
WATER PUMP GASKET
IN STOCK 		$37.56 1
