Aston Martin V12 Zagato - Front Sport Seat Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD2360008BCW Front Seat Assembly Complete, Trimmed, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD2360050BBW Cushion Assy, Front Seat Trimmed, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD2360136BBW Squab Assy, Front Seat Trimmed, RH Enquire To Order
Photo Part No Description Price (each) Stock
CG4364800AC Squab Frame, Front Seat, RH, Memory $4,356.43 To Order
Photo Part No Description Price (each) Stock
BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting $3,168.23 To Order
Photo Part No Description Price (each) Stock
4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT $0.71 To Order
Photo Part No Description Price (each) Stock
706423 SCREW-M8 x 25 HF PI $1.49 IN STOCK
Photo Part No Description Price (each) Stock
4G43613K22BD Buckle Assembly, Front Seatbelt $268.06 To Order
Photo Part No Description Price (each) Stock
7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH $355.18 To Order
Photo Part No Description Price (each) Stock
7G43N014740AA Screw, M6 x 16, Socket Head $1.11 To Order
Photo Part No Description Price (each) Stock
AD33062A00BB SEAT TILT SWITCH $389.16 To Order
Photo Part No Description Price (each) Stock
7G43605W00ACW Strap, Squab Release, Manual Override $33.34 To Order
Photo Part No Description Price (each) Stock
8G3365532AA Pump, Lumbar Support Air $174.51 To Order
Photo Part No Description Price (each) Stock
8G3365524AA Valve, Lumbar Support Air $212.81 To Order
Photo Part No Description Price (each) Stock
AG43603B13AA Bladder, Lumbar Support Air $134.19 To Order
Photo Part No Description Price (each) Stock
4G437410127 Kit, Squab Motor $142.71 To Order
Photo Part No Description Price (each) Stock
4G437410116 Track Assembly, Front Lightweight Seat $4,047.55 To Order
Photo Part No Description Price (each) Stock
92057 SEAT ECU-DRIVER $958.57 To Order
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $10.69 IN STOCK
Photo Part No Description Price (each) Stock
AG434D9514AA Foam, Squab, RH $400.98 To Order
Photo Part No Description Price (each) Stock
AD2364572BAW Cover Assy, Front Seat Squab, RH $3,629.08 To Order
Photo Part No Description Price (each) Stock
7G4314D696AB Heating Element, Squab $125.06 To Order
Photo Part No Description Price (each) Stock
AD2362900BAW Cover Assy, Front Seat Cushion, RH $2,084.95 To Order
Photo Part No Description Price (each) Stock
8G439515AA FRT ST CUSH FOAM RH $400.92 To Order
Photo Part No Description Price (each) Stock
7G4314D698AC Element, Seat Base Heater $308.71 IN STOCK
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $21.00 To Order
View All

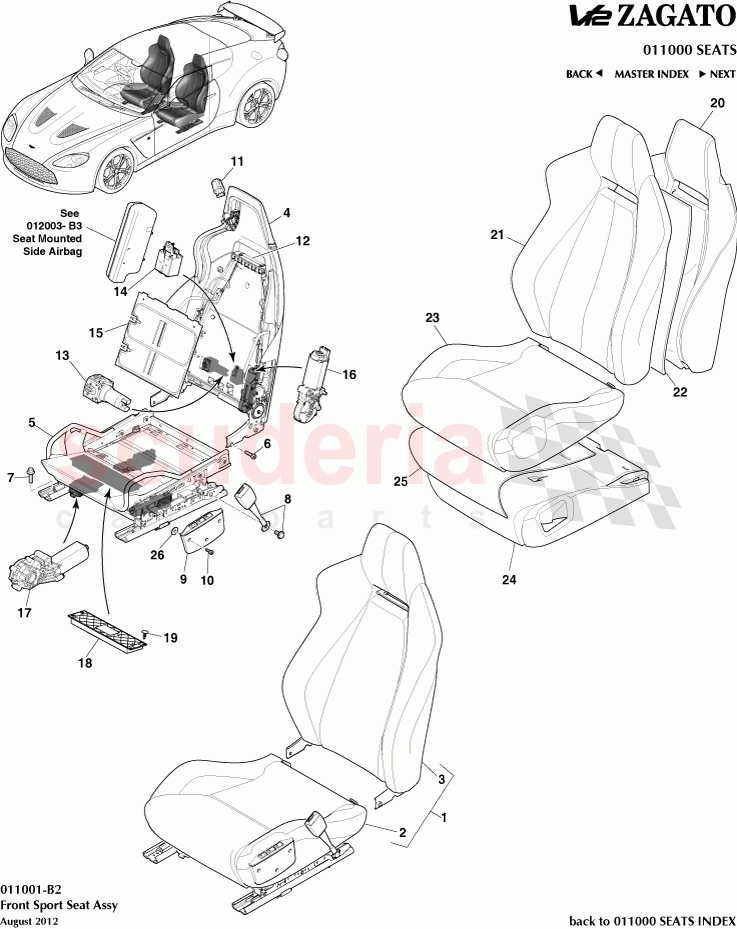

Front Sport Seat Assembly of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD2360009BCW
Front Seat Assembly Complete, Trimmed, LH 		- 1 Enquire
- AD2360051BBW
Cushion Assy, Front Seat Trimmed, LH 		- 1 Enquire
- AD2360137BBW
Squab Assy, Front Seat Trimmed, LH 		- 1 Enquire
- CG4364802AC
Squab Frame, Front Seat, LH, Memory 		$4,356.43 1
- 7G4314E693CA
SWITCH PACK ASSY FRT SEAT LUMBAR LH
Non Heated 		$318.36 1
- 7G4314E693BA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH
Heated 		$394.99 1
- 7G4314E693DA
Switch Pack Assy, Lumbar, RH
Non Heated 		$329.50 1
- 92055
SEAT ECU-PASS 		$958.57 1
- AG434D9513AA
Foam, Squab, LH 		$400.98 1
- AD2364573BAW
Cover Assy, Front Seat Squab, LH 		$3,629.08 1
- AD2362901BAW
Cover Assy, Front Seat Cushion, LH 		$2,084.95 1
- 8G439516AA
FRT ST CUSH FOAM LH 		$400.92 1
1 AD2360008BCW
Front Seat Assembly Complete, Trimmed, RH 		- 1 Enquire
2 AD2360050BBW
Cushion Assy, Front Seat Trimmed, RH 		- 1 Enquire
3 AD2360136BBW
Squab Assy, Front Seat Trimmed, RH 		- 1 Enquire
4 CG4364800AC
Squab Frame, Front Seat, RH, Memory 		$4,356.43 1
5 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
Includes Item 17 		$3,168.23 2
6 4G4361538AB
M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT 		$0.71 8
7 706423
SCREW-M8 x 25 HF PI
IN STOCK 		$1.49 8
8 4G43613K22BD
Buckle Assembly, Front Seatbelt
Includes Fixing 		$268.06 2
9 7G4314E693AA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH
Heated 		$355.18 1
10 7G43N014740AA
Screw, M6 x 16, Socket Head 		$1.11 6
11 AD33062A00BB
SEAT TILT SWITCH 		$389.16 2
12 7G43605W00ACW
Strap, Squab Release, Manual Override 		$33.34 2
13 8G3365532AA
Pump, Lumbar Support Air 		$174.51 2
14 8G3365524AA
Valve, Lumbar Support Air 		$212.81 2
15 AG43603B13AA
Bladder, Lumbar Support Air 		$134.19 2
16 4G437410127
Kit, Squab Motor 		$142.71 2
17 4G437410116
Track Assembly, Front Lightweight Seat 		$4,047.55 6
18 92057
SEAT ECU-DRIVER 		$958.57 1
19 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
8
IN STOCK 		$10.69 1
20 AG434D9514AA
Foam, Squab, RH 		$400.98 1
21 AD2364572BAW
Cover Assy, Front Seat Squab, RH 		$3,629.08 1
22 7G4314D696AB
Heating Element, Squab 		$125.06 2
23 AD2362900BAW
Cover Assy, Front Seat Cushion, RH 		$2,084.95 1
24 8G439515AA
FRT ST CUSH FOAM RH 		$400.92 1
25 7G4314D698AC
Element, Seat Base Heater
IN STOCK 		$308.71 2
26 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20. Front Fixing, LH Seat Only 		$21.00 1
