Name: Package Tray Assembly
Rating: 4.6 (1 reviews)

View All

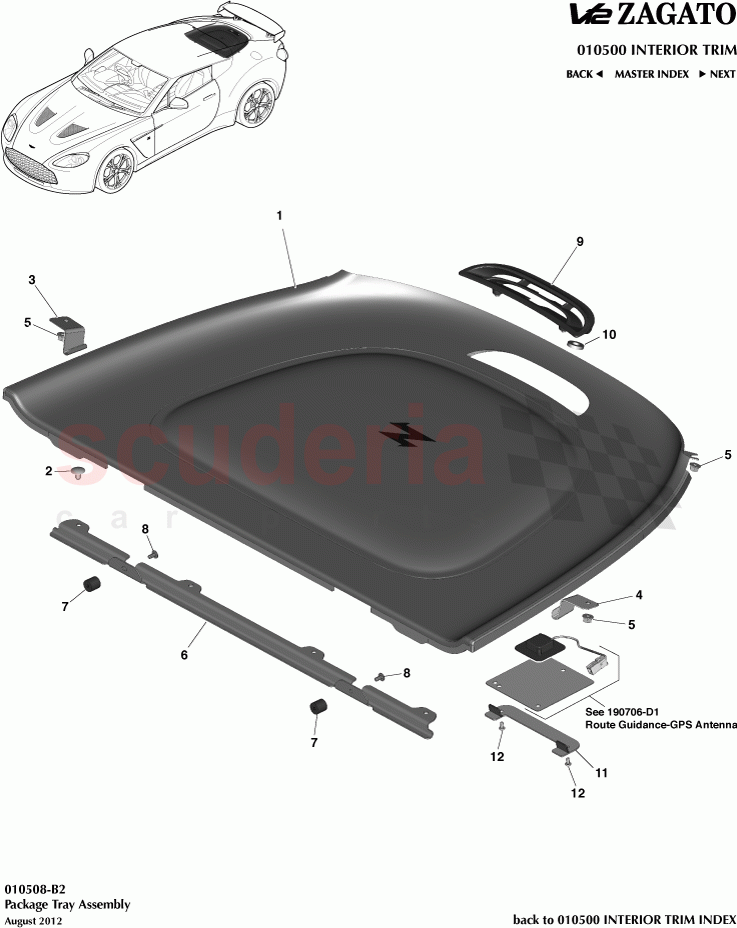

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CY8346668ACW	Panel Assy, Package Tray	$2,485.39	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83N20A62AB	Bracket, Package Tray, RH	$22.41	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83N20A63AB	Bracket, Package Tray, LH	$22.41	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CY8346916AB	Bracket, Package Tray	$83.54	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8341692AB	Spacer, Package Tray, Front	$32.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8313B477AAW	Grille, Vent, Package Tray	$739.09	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8341692BA	Spacer, Package Tray, Rear	$32.43	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8310E921AA	Bracket, Grille, Package Tray	$43.63	To Order

Photo	Part No	Description	Price (each)	Stock
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	$0.44	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	CY8313B477BAW	Grille, Vent, Package Tray	CY8313B477BAW Grille, Vent, Package Tray Coloured Finish	$921.48	1
1	CY8346668ACW	Panel Assy, Package Tray	CY8346668ACW Panel Assy, Package Tray Includes Item 2	$2,485.39	1
3	CY83N20A62AB	Bracket, Package Tray, RH	CY83N20A62AB Bracket, Package Tray, RH	$22.41	1
4	CY83N20A63AB	Bracket, Package Tray, LH	CY83N20A63AB Bracket, Package Tray, LH	$22.41	1
5	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	$0.52	5
6	CY8346916AB	Bracket, Package Tray	CY8346916AB Bracket, Package Tray	$83.54	1
7	CY8341692AB	Spacer, Package Tray, Front	CY8341692AB Spacer, Package Tray, Front	$32.78	2
8	6G3346058AA	Screw, M5 x 10 Pan Head Flange Torx	6G3346058AA Screw, M5 x 10 Pan Head Flange Torx	$1.70	2
9	CY8313B477AAW	Grille, Vent, Package Tray	CY8313B477AAW Grille, Vent, Package Tray Black Finish	$739.09	1
10	CY8341692BA	Spacer, Package Tray, Rear	CY8341692BA Spacer, Package Tray, Rear	$32.43	1
11	CY8310E921AA	Bracket, Grille, Package Tray	CY8310E921AA Bracket, Grille, Package Tray	$43.63	1
12	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	$0.44	2

Package Tray Assembly

Aston Martin V12 Zagato
