Aston Martin V12 Zagato - Air Con Lines and Fittings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD2319972AA TUBE ASSY - AIRCON COMPRESSOR TO CONDENSOR $481.79 To Order
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.63 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
AD2319D719AA Tube Assy, Condenser to Receiver Drier $178.92 IN STOCK
Photo Part No Description Price (each) Stock
4G4319E891AD Air Conditioning Drier $266.49 IN STOCK
Photo Part No Description Price (each) Stock
703903 Bolt, M6 x 30, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
AD236147XAB Bracket, Aircon Electrical $30.64 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
Photo Part No Description Price (each) Stock
702291 Clip, 11-18 x 6.5 x 7 $1.43 To Order
Photo Part No Description Price (each) Stock
4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) $5.30 IN STOCK
Photo Part No Description Price (each) Stock
4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) $5.39 IN STOCK
Photo Part No Description Price (each) Stock
4G438910912 O RING $6.11 IN STOCK
Photo Part No Description Price (each) Stock
AG4319A705AA Tube Assy, Evaporator Outlet $306.61 To Order
Photo Part No Description Price (each) Stock
AD2319A705CA Tube Assy, A/C Evaporator Outlet, Upper $244.00 To Order
Photo Part No Description Price (each) Stock
AG4319A705BA Tube Assy, A/C Evaporator Outlet, Upper $179.22 To Order
Photo Part No Description Price (each) Stock
AD2319835BA Tube, Aircon Dehydrator to Evaporator $276.54 To Order
Photo Part No Description Price (each) Stock
AD2319835AA Tube, Aircon Dehydrator to Evaporator $260.27 To Order
Photo Part No Description Price (each) Stock
4G434073AAA CLAMP - LIQ $4.82 To Order
Photo Part No Description Price (each) Stock
701182 Clip, Pipe Swivel $1.87 To Order
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $61.87 IN STOCK
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.28 To Order
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $1.98 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
1R128910192 Switch, A/C High Pressure $522.25 To Order
Photo Part No Description Price (each) Stock
AG438911295 SW ASY-A/C PRES CTOF $558.66 To Order
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.19 IN STOCK
View All

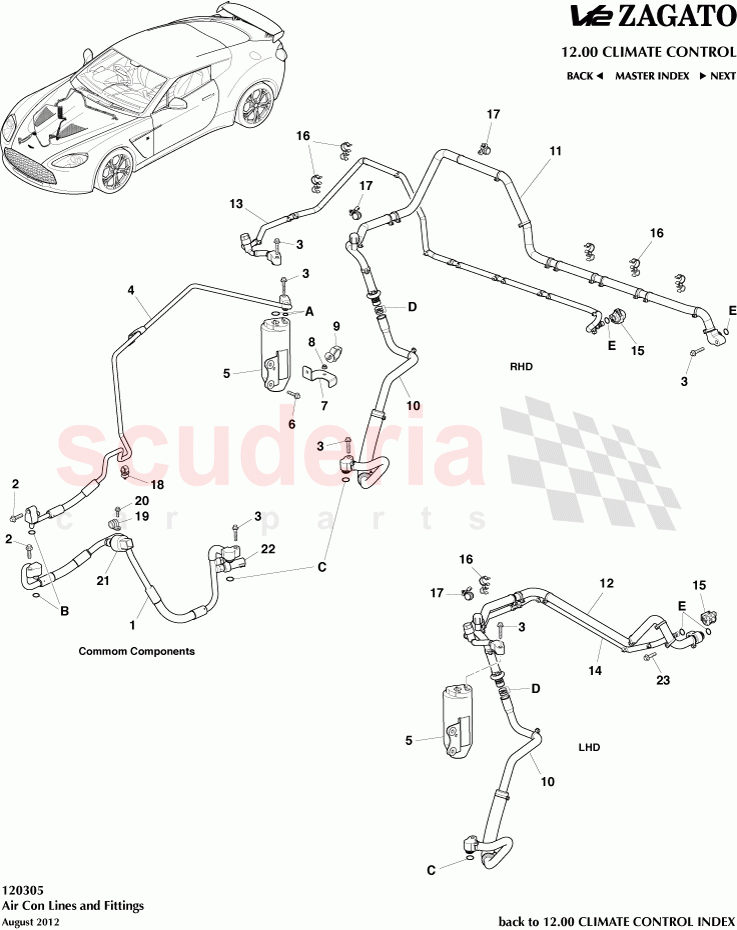

Air Con Lines and Fittings of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
A 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
Pack of 2
IN STOCK 		$5.30 1
B 4G438910910PK
O Rings-DB9 & V8 Condenser (Pack of 2)
Pack of 2
IN STOCK 		$5.39 1
D 4G438910912
O RING
Pack of 3
IN STOCK 		$6.11 1
E 4G438910911PK
O RINGS-DB9 EVAPORATOR-PACK OF 3
Pack of 3 		$13.31 1
1 AD2319972AA
TUBE ASSY - AIRCON COMPRESSOR TO CONDENSOR 		$481.79 1
2 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
IN STOCK 		$0.63 2
3 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 5
4 AD2319D719AA
Tube Assy, Condenser to Receiver Drier
IN STOCK 		$178.92 1
5 4G4319E891AD
Air Conditioning Drier
IN STOCK 		$266.49 1
6 703903
Bolt, M6 x 30, Hex Flange Head 		- 2 Enquire
7 AD236147XAB
Bracket, Aircon Electrical 		$30.64 1
8 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.10 1
9 702291
Clip, 11-18 x 6.5 x 7 		$1.43 1
10 AG4319A705AA
Tube Assy, Evaporator Outlet 		$306.61 1
11 AD2319A705CA
Tube Assy, A/C Evaporator Outlet, Upper
RHD 		$244.00 1
12 AG4319A705BA
Tube Assy, A/C Evaporator Outlet, Upper
LHD 		$179.22 1
13 AD2319835BA
Tube, Aircon Dehydrator to Evaporator
RHD 		$276.54 1
14 AD2319835AA
Tube, Aircon Dehydrator to Evaporator
LHD 		$260.27 1
15 4G434073AAA
CLAMP - LIQ 		$4.82 1
16 701182
Clip, Pipe Swivel
RHD Qty 5, LHD Qty 2 		$1.87 A/R
17 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100
IN STOCK 		$61.87 2
18 701180
Clip, 14 x 4, Push In 		$1.28 1
19 699634
P-Clip,13 x 15 x M6
IN STOCK 		$1.98 1
20 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 1
21 1R128910192
Switch, A/C High Pressure 		$522.25 1
22 AG438911295
SW ASY-A/C PRES CTOF 		$558.66 1
23 703025
Screw, M6 x 25, Hex Flange Head
LHD Only
IN STOCK 		$0.19 1
