Aston Martin V12 Zagato - Air Distribution Components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3304432AD Duct Assembly, Windshield Deflector, LHD $132.89 To Order
Photo Part No Description Price (each) Stock
703156 Screw/Washer M6x18 Chrome Free $0.73 IN STOCK
Photo Part No Description Price (each) Stock
703068 4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP $0.11 To Order
Photo Part No Description Price (each) Stock
4G4318C491AJ Grille - Window Defrost $569.63 IN STOCK
Photo Part No Description Price (each) Stock
6G3379231AC Screw, M3.5 x 38, Flat Hd Csk $0.44 To Order
Photo Part No Description Price (each) Stock
4G43C046B80AC SE I/PNL DEF OPG GRL $8.70 To Order
Photo Part No Description Price (each) Stock
4G4319E658AC Hose, A/C Window Demister $52.56 To Order
Photo Part No Description Price (each) Stock
4G4319E680AD Connector, A/C Demister Hose $8.70 To Order
Photo Part No Description Price (each) Stock
4G43046B30BB Register Assembly, Air Con, RH $136.50 To Order
Photo Part No Description Price (each) Stock
4G43046B31BB Register Assembly, Air Con, LH $133.74 To Order
Photo Part No Description Price (each) Stock
701447 Screw, M4 x 12, Pan Head, Torx Screw $0.30 IN STOCK
Photo Part No Description Price (each) Stock
4G4318D404CA FOAM SEAL - AIR DISTRIBUTION DUCTS $2.31 To Order
Photo Part No Description Price (each) Stock
8G4319C804AE Duct Assembly, A/C Instrument Panel Centre to RH $52.65 To Order
Photo Part No Description Price (each) Stock
8G4319C805AE Duct Assembly, A/C Instrument Panel Centre to LH $77.80 To Order
Photo Part No Description Price (each) Stock
8G4318D404AC Duct Assembly, Heater Air Distribution, LHD $75.64 To Order
Photo Part No Description Price (each) Stock
4G4317A873AA RIVET 4.8 x 12 BLND LRG AL $1.72 To Order
Photo Part No Description Price (each) Stock
9G43370807AA Bracket Assembly, Tyre Pressure Monitoring $10.81 To Order
Photo Part No Description Price (each) Stock
8G43014K96AB Duct Assembly, Aircon Footwell, RH, LHD $36.82 To Order
Photo Part No Description Price (each) Stock
7G43014K00AA Plug Assembly, Foot Duct Outlet $12.32 To Order
Photo Part No Description Price (each) Stock
9D33014K97AA Duct Assembly, Aircon Footwell, LH, LHD $7.16 To Order
Photo Part No Description Price (each) Stock
8D3360302BB Clip, Fir Tree, Flat Head $0.77 To Order
Photo Part No Description Price (each) Stock
8G43120002AA S-Clip $0.52 To Order
View All

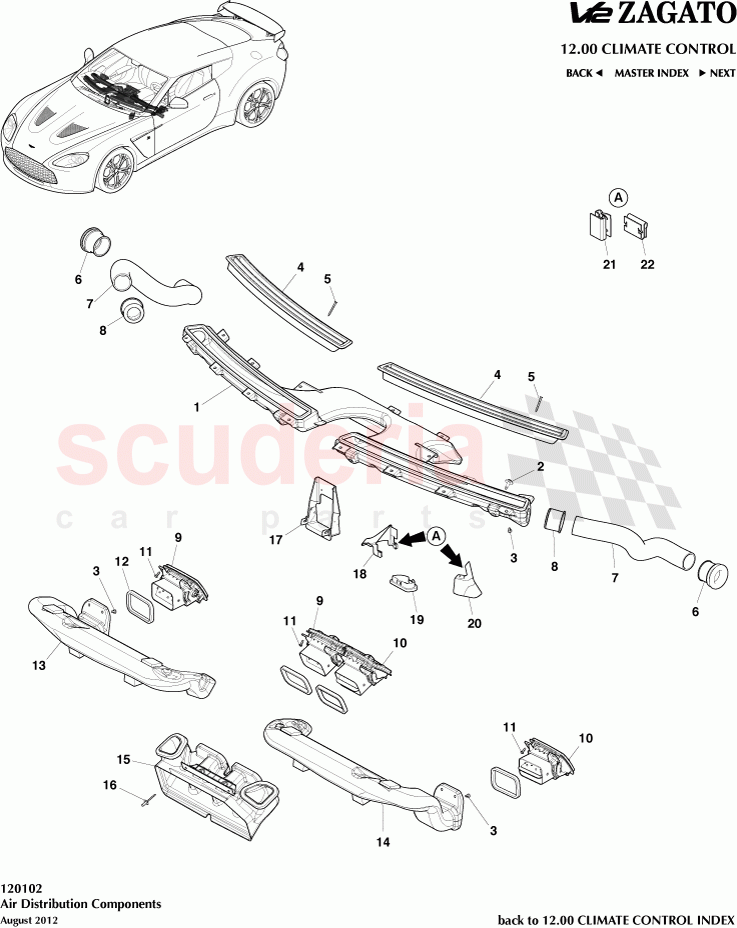

Air Distribution Components of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G3304432BD
Duct Assembly, Windshield Deflector, RHD 		$132.89 1
- 8G4318D404BC
Duct Assembly, Heater Air Distribution, RHD 		$87.88 1
- 9D33014K96AA
Duct Assembly, Aircon Footwell, RH, RHD
Includes Clips 		$7.16 1
- 8G43014K97BB
Duct Assembly, Aircon Footwell, LH, RHD
Includes Clips 		$36.82 1
1 6G3304432AD
Duct Assembly, Windshield Deflector, LHD 		$132.89 1
2 703156
Screw/Washer M6x18 Chrome Free
IN STOCK 		$0.73 4
3 703068
4.2x9 SCREW LARGE FLANGE TORX HEAD SELF TAPP 		$0.11 20
4 4G4318C491AJ
Grille - Window Defrost
IN STOCK 		$569.63 2
5 6G3379231AC
Screw, M3.5 x 38, Flat Hd Csk 		$0.44 4
6 4G43C046B80AC
SE I/PNL DEF OPG GRL 		$8.70 2
7 4G4319E658AC
Hose, A/C Window Demister 		$52.56 2
8 4G4319E680AD
Connector, A/C Demister Hose 		$8.70 2
9 4G43046B30BB
Register Assembly, Air Con, RH 		$136.50 2
10 4G43046B31BB
Register Assembly, Air Con, LH 		$133.74 2
11 701447
Screw, M4 x 12, Pan Head, Torx Screw
IN STOCK 		$0.30 12
12 4G4318D404CA
FOAM SEAL - AIR DISTRIBUTION DUCTS 		$2.31 4
13 8G4319C804AE
Duct Assembly, A/C Instrument Panel Centre to RH 		$52.65 1
14 8G4319C805AE
Duct Assembly, A/C Instrument Panel Centre to LH 		$77.80 1
15 8G4318D404AC
Duct Assembly, Heater Air Distribution, LHD 		$75.64 1
16 4G4317A873AA
RIVET 4.8 x 12 BLND LRG AL 		$1.72 2
17 9G43370807AA
Bracket Assembly, Tyre Pressure Monitoring 		$10.81 1
18 8G43014K96AB
Duct Assembly, Aircon Footwell, RH, LHD
Includes Clips 		$36.82 1
19 7G43014K00AA
Plug Assembly, Foot Duct Outlet
Includes Clips 		$12.32 2
20 9D33014K97AA
Duct Assembly, Aircon Footwell, LH, LHD
Includes Clips 		$7.16 1
21 8D3360302BB
Clip, Fir Tree, Flat Head 		$0.77 2
22 8G43120002AA
S-Clip 		$0.52 2
