Aston Martin Rapide - Transaxle Cooling Pipes (Auto)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G437F120AA HOSE - AIR/OIL ASSY COOLER OUTLET $136.65 To Order
Photo Part No Description Price (each) Stock
9G437F120BA HOSE - AIR/OIL ASSY COOLER INLET $192.77 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
9G437R041AA SEAL HOSE TRANS OIL COOLER $17.91 To Order
Photo Part No Description Price (each) Stock
9G438777CA CLAMP HOSE OETIKER 025.5-1008R $6.06 IN STOCK
Photo Part No Description Price (each) Stock
9G437W093AA PIPE ASSEMBLY ENGINE BAY INLET $137.44 To Order
Photo Part No Description Price (each) Stock
9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET $206.62 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.93 IN STOCK
Photo Part No Description Price (each) Stock
9G438777CA CLAMP HOSE OETIKER 025.5-1008R $6.06 IN STOCK
Photo Part No Description Price (each) Stock
AD23321363AA Oil Pipe Assy Enquire To Order
Photo Part No Description Price (each) Stock
9G437D353AA Tube & Bracket Assembly, Transmission Oil Enquire To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
4G436L635AA Thermostat, Transmission Oil Control $1,002.93 To Order
Photo Part No Description Price (each) Stock
4G436A626AA Bracket, Oil pipe $101.24 To Order
Photo Part No Description Price (each) Stock
703189 BOLT M8x16 HEX FLG CHROME FREE $0.33 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
4G4335568BA Pipe, Transmission Oil Inlet Enquire To Order
Photo Part No Description Price (each) Stock
4G4335568AA Pipe, Transmission Oil Outlet Enquire To Order
Photo Part No Description Price (each) Stock
9G43445396CA MATRIX OIL COOLER $1,126.58 To Order
Photo Part No Description Price (each) Stock
3285306 Seal, Radiator Upper $15.67 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
View All

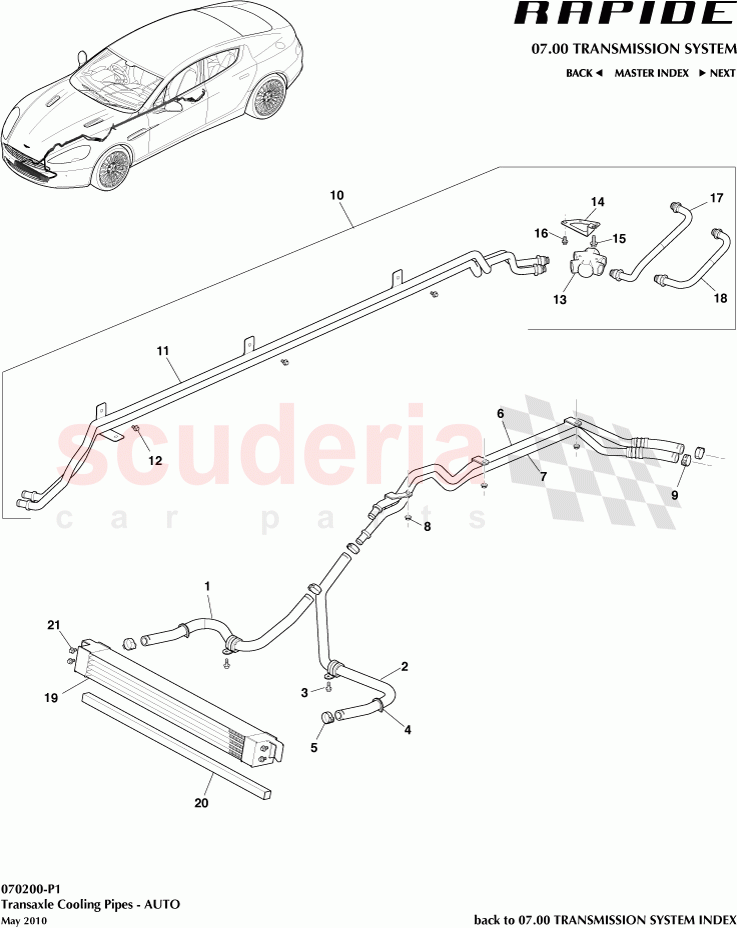

Transaxle Cooling Pipes (Auto) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G437F120AA
HOSE - AIR/OIL ASSY COOLER OUTLET
incl. P clips 		$136.65 1
2 9G437F120BA
HOSE - AIR/OIL ASSY COOLER INLET
incl. P clips 		$192.77 1
3 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 2
4 9G437R041AA
SEAL HOSE TRANS OIL COOLER 		$17.91 2
5 9G438777CA
CLAMP HOSE OETIKER 025.5-1008R
IN STOCK 		$6.06 4
6 9G437W093AA
PIPE ASSEMBLY ENGINE BAY INLET 		$137.44 1
7 9G437W093BA
PIPE ASSEMBLY ENGINE BAY OUTLET 		$206.62 1
8 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.93 3
9 9G438777CA
CLAMP HOSE OETIKER 025.5-1008R
IN STOCK 		$6.06 2
10 AD23321363AA
Oil Pipe Assy 		- 1 Enquire
11 9G437D353AA
Tube & Bracket Assembly, Transmission Oil 		- 1 Enquire
12 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 3
13 4G436L635AA
Thermostat, Transmission Oil Control 		$1,002.93 1
14 4G436A626AA
Bracket, Oil pipe 		$101.24 1
15 703189
BOLT M8x16 HEX FLG CHROME FREE 		$0.33 1
16 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 1
17 4G4335568BA
Pipe, Transmission Oil Inlet 		- 1 Enquire
18 4G4335568AA
Pipe, Transmission Oil Outlet 		- 1 Enquire
19 9G43445396CA
MATRIX OIL COOLER 		$1,126.58 1
20 3285306
Seal, Radiator Upper 		$15.67 1
21 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 4
