Automatic Transaxle (Differential)

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Automatic Transaxle (Differential)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91816 DIFFERENTIAL-AUTO $8,957.15 To Order
Photo Part No Description Price (each) Stock
4G432710480 OUTPUT SHAFT - LEFT SIDE DIFF $1,426.00 To Order
Photo Part No Description Price (each) Stock
4G432710481 Cover, Output Shaft, Differential $258.61 To Order
Photo Part No Description Price (each) Stock
4G432710482 O Ring, 2.62 x 75.87 $11.27 IN STOCK
Photo Part No Description Price (each) Stock
4G432711055 O Ring, 2.62 x 94.92 $25.70 To Order
Photo Part No Description Price (each) Stock
4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 $69.54 IN STOCK
4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 $68.85 IN STOCK
Photo Part No Description Price (each) Stock
CD332710007 Ball bearing, 50 x 80 x 16 $59.16 To Order
Photo Part No Description Price (each) Stock
4G432710485 Screw, M8 x 30 $0.77 To Order
Photo Part No Description Price (each) Stock
4G432710486 WASHER - ELASTIC CURVE $0.13 To Order
Photo Part No Description Price (each) Stock
4G432710494 Union, Oil Cooler $42.01 To Order
Photo Part No Description Price (each) Stock
4G432710487 Gasket, Flat, 16 x 22 $0.77 To Order
Photo Part No Description Price (each) Stock
4G432710488 Adaptor, Breather $87.60 To Order
Photo Part No Description Price (each) Stock
4G432710489 PLUG - BREATHER $18.96 To Order
Photo Part No Description Price (each) Stock
4G432710490 Filter, Oil $186.90 IN STOCK
Photo Part No Description Price (each) Stock
4G432710491PK O RING 2.62 x 20.63 (PACK OF 10) $39.10 IN STOCK
Photo Part No Description Price (each) Stock
4G432710492 Screw, M5 x 12 $2.90 To Order
Photo Part No Description Price (each) Stock
4G432710493 PLUG - OIL LEVEL M22 $13.06 IN STOCK
Photo Part No Description Price (each) Stock
4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) $38.42 IN STOCK
Photo Part No Description Price (each) Stock
4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) $47.88 IN STOCK
Photo Part No Description Price (each) Stock
4G432710495 SPEED SENSOR $495.50 To Order
Photo Part No Description Price (each) Stock
4G432710496 SCREW M6 x 16 $0.66 To Order
Photo Part No Description Price (each) Stock
4G432710497 WASHER - ELASTIC $0.13 To Order
Photo Part No Description Price (each) Stock
4G432710498 COVER - DIFFERENTIAL $744.27 To Order
Photo Part No Description Price (each) Stock
4G432710499 Screw, M8 x 25 $2.03 To Order
Photo Part No Description Price (each) Stock
4G432710500 O Ring, 3.53 x 228.19 $76.04 To Order
Photo Part No Description Price (each) Stock
4G432710501 DOWEL $5.66 To Order
Photo Part No Description Price (each) Stock
4G432710502 O Ring, 2.69 x 9.92 $1.64 To Order
Photo Part No Description Price (each) Stock
704349PK TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12 $267.21 To Order
4G432711158 O Ring, Rear Cover, 3.53 x 123.42 $52.49 To Order
View All

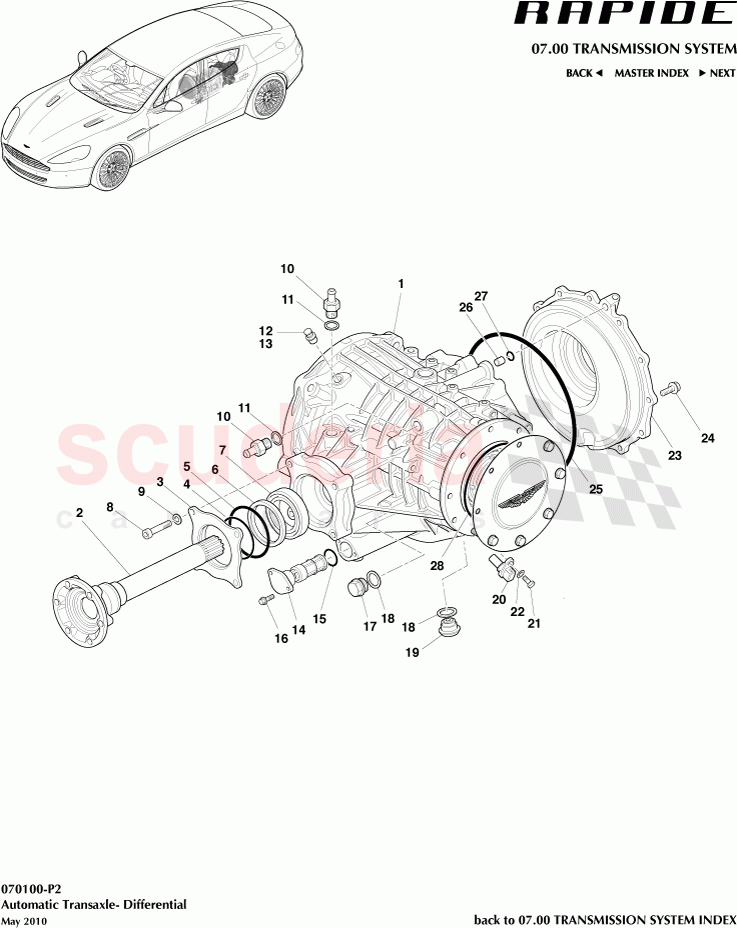

Automatic Transaxle (Differential) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91816
DIFFERENTIAL-AUTO 		$8,957.15 1
2 4G432710480
OUTPUT SHAFT - LEFT SIDE DIFF 		$1,426.00 2
3 4G432710481
Cover, Output Shaft, Differential 		$258.61 1
4 4G432710482
O Ring, 2.62 x 75.87
IN STOCK 		$11.27 1
5 4G432711055
O Ring, 2.62 x 94.92 		$25.70 1
6 4G432710483
Seal, Differential Output Shaft, Left, 55 x 72 x 8
IN STOCK 		$69.54 1
6 4G432710604
Seal, Differential Output Shaft RH, 55 x 70 x 8
IN STOCK 		$68.85 1
7 CD332710007
Ball bearing, 50 x 80 x 16 		$59.16 1
8 4G432710485
Screw, M8 x 30 		$0.77 4
9 4G432710486
WASHER - ELASTIC CURVE 		$0.13 4
10 4G432710494
Union, Oil Cooler 		$42.01 2
11 4G432710487
Gasket, Flat, 16 x 22 		$0.77 2
12 4G432710488
Adaptor, Breather 		$87.60 1
13 4G432710489
PLUG - BREATHER 		$18.96 1
14 4G432710490
Filter, Oil
IN STOCK 		$186.90 1
15 4G432710491PK
O RING 2.62 x 20.63 (PACK OF 10)
IN STOCK 		$39.10 1
16 4G432710492
Screw, M5 x 12 		$2.90 2
17 4G432710493
PLUG - OIL LEVEL M22
IN STOCK 		$13.06 1
18 4G432710245PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10)
IN STOCK 		$38.42 2
19 4G432710244
DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)
IN STOCK 		$47.88 1
20 4G432710495
SPEED SENSOR 		$495.50 1
21 4G432710496
SCREW M6 x 16 		$0.66 1
22 4G432710497
WASHER - ELASTIC 		$0.13 1
23 4G432710498
COVER - DIFFERENTIAL 		$744.27 1
24 4G432710499
Screw, M8 x 25 		$2.03 12
25 4G432710500
O Ring, 3.53 x 228.19 		$76.04 1
26 4G432710501
DOWEL 		$5.66 1
27 4G432710502
O Ring, 2.69 x 9.92 		$1.64 1
28 704349PK
TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12
-Shell Spirax 		$267.21 -
28 4G432711158
O Ring, Rear Cover, 3.53 x 123.42 		$52.49 1
