Upperbody

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Upperbody

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
GOAD43F670309AA ROOF BOW CLOSER $117.60 To Order
Photo Part No Description Price (each) Stock
GOAD43F70700AA PNL ROOF BOW $263.74 To Order
Photo Part No Description Price (each) Stock
GOAD43F513A09AB REINF RF SD RL LH $528.12 To Order
Photo Part No Description Price (each) Stock
GOAD43F513A08AB REINF ROOF SIDE RAIL RH $528.12 To Order
Photo Part No Description Price (each) Stock
GOAD43F513A31AE Reinforcement, Inner Roof Side LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43F513A30AD Reinforcement, Inner Roof Side RH Enquire To Order
Photo Part No Description Price (each) Stock
AD43D279K02AA B PILLAER ASSY RH SERVICE $2,960.80 To Order
Photo Part No Description Price (each) Stock
AD43D279K03AA B PILLAR ASSY LH SERVICE $2,040.75 To Order
Photo Part No Description Price (each) Stock
GOAD4324313AB PLR CTR BODY LH $102.26 To Order
Photo Part No Description Price (each) Stock
GOAD4324312BB PLR CTR BDY RH $252.58 To Order
Photo Part No Description Price (each) Stock
GOAD43F2658AA RETENTION RING B/C PILLAR $205.49 To Order
Photo Part No Description Price (each) Stock
GOAD43F70640AA Reinforcement, Header Front $166.38 To Order
Photo Part No Description Price (each) Stock
AD43F50210AA Header, Front Lower Enquire To Order
Photo Part No Description Price (each) Stock
AD43C17727AB BRACKET REAR VIEW MIRROR MOUNTING $151.61 To Order
Photo Part No Description Price (each) Stock
GOAD43F37279AB Header Upper, Rear $268.10 To Order
Photo Part No Description Price (each) Stock
AD43F6392208AC Header Lower, Rear Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43F40365AA Casting, C Pillar to Rear Header LH $141.44 To Order
Photo Part No Description Price (each) Stock
GOAD43F40364AA C PILL RR HDR CSTG RH $113.04 To Order
Photo Part No Description Price (each) Stock
AD43F410A83AC Reinforcement, C Pillar LH $2,347.46 To Order
Photo Part No Description Price (each) Stock
AD43F410A82AC Reinforcement, C Pillar RH $2,347.46 To Order
Photo Part No Description Price (each) Stock
GOAD43F1581AB CLSR Cantrail Rear LH $1,035.26 To Order
Photo Part No Description Price (each) Stock
GOAD43F1582AB CLSR Cantrail Rear RH $1,035.26 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.11 To Order
View All

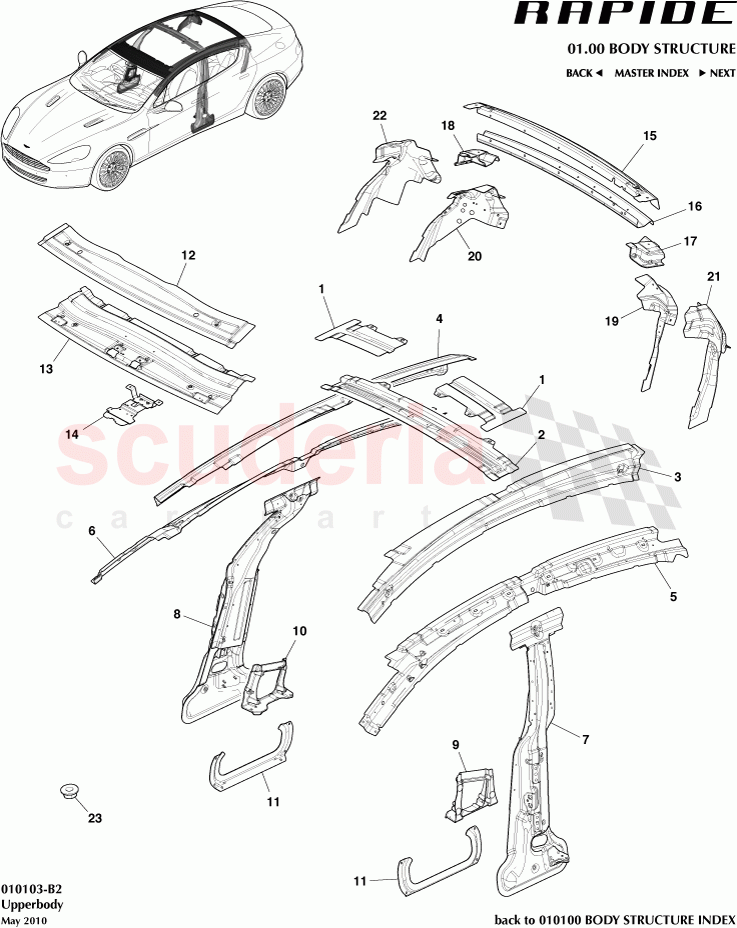

Upperbody of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 GOAD43F670309AA
ROOF BOW CLOSER
Structural Cat. A only 		$117.60 2
2 GOAD43F70700AA
PNL ROOF BOW
Structural Cat. A only 		$263.74 1
3 GOAD43F513A09AB
REINF RF SD RL LH
Structural Cat. A only 		$528.12 1
4 GOAD43F513A08AB
REINF ROOF SIDE RAIL RH
Structural Cat. A only 		$528.12 1
5 GOAD43F513A31AE
Reinforcement, Inner Roof Side LH
Structural Cat. A only 		- 1 Enquire
6 GOAD43F513A30AD
Reinforcement, Inner Roof Side RH
Structural Cat. A only 		- 1 Enquire
7 AD43D279K02AA
B PILLAER ASSY RH SERVICE
Service Assy, Structural Cat. A only 		$2,960.80 1
8 AD43D279K03AA
B PILLAR ASSY LH SERVICE
Service Assy, Structural Cat. A only 		$2,040.75 1
9 GOAD4324313AB
PLR CTR BODY LH
Structural Cat. A only 		$102.26 1
10 GOAD4324312BB
PLR CTR BDY RH
Structural Cat. A only 		$252.58 1
11 GOAD43F2658AA
RETENTION RING B/C PILLAR
Structural Cat. A only 		$205.49 2
12 GOAD43F70640AA
Reinforcement, Header Front
Structural Cat. A only 		$166.38 1
13 AD43F50210AA
Header, Front Lower
Structural Cat. A only 		- 1 Enquire
14 AD43C17727AB
BRACKET REAR VIEW MIRROR MOUNTING
Structural Cat. A only 		$151.61 1
15 GOAD43F37279AB
Header Upper, Rear
Structural Cat. A only 		$268.10 1
16 AD43F6392208AC
Header Lower, Rear
Structural Cat. A only 		- 1 Enquire
17 GOAD43F40365AA
Casting, C Pillar to Rear Header LH
Structural Cat. A only 		$141.44 1
18 GOAD43F40364AA
C PILL RR HDR CSTG RH
Structural Cat. A only 		$113.04 1
19 AD43F410A83AC
Reinforcement, C Pillar LH
Structural Cat. A only 		$2,347.46 1
20 AD43F410A82AC
Reinforcement, C Pillar RH
Structural Cat. A only 		$2,347.46 1
21 GOAD43F1581AB
CLSR Cantrail Rear LH
Structural Cat. A only 		$1,035.26 1
22 GOAD43F1582AB
CLSR Cantrail Rear RH
Structural Cat. A only 		$1,035.26 1
23 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 4
23 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.11 -
