Underbody

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Underbody

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43F13059AC Side Panel, Tunnel rear LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F13058AD Side Panel, Tunnel rear RH Enquire To Order
Photo Part No Description Price (each) Stock
AD4366625AA Plate, stud M8 Bracket inner rear LH $32.87 To Order
Photo Part No Description Price (each) Stock
AD4366624AA Plate, stud M8 Bracket inner rear RH $32.87 To Order
Photo Part No Description Price (each) Stock
AD43F10775AA Extrusion, tunnel LH Enquire To Order
Photo Part No Description Price (each) Stock
AD43F10774AA Extrusion, tunnel RH Enquire To Order
Photo Part No Description Price (each) Stock
AD4310277AA Member, Front Side LH $168.13 To Order
Photo Part No Description Price (each) Stock
AD4310276AB MBR FRT SD RH $128.95 To Order
Photo Part No Description Price (each) Stock
P06G33F001K28AB Bracket, tunnel upper inner Enquire To Order
Photo Part No Description Price (each) Stock
AD43111E47AA BRACE TUNNEL UPPER OUTER ASSY LH SERVICE $258.32 To Order
Photo Part No Description Price (each) Stock
AD43111E46AA BRACE TUNNEL UPPER OUTER ASSY LH SERVICE $370.21 To Order
Photo Part No Description Price (each) Stock
GOAD43100A95AB Member, lower reinforc front side LH $120.00 To Order
Photo Part No Description Price (each) Stock
GOAD43100A94AB Member, lower reinforc front side RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43F10095AB Member, reinforce front side LH $104.99 To Order
Photo Part No Description Price (each) Stock
GOAD43F10094AB Member, reinforce front side RH $104.99 To Order
Photo Part No Description Price (each) Stock
AD43113C18AA Panel, tunnel top front Enquire To Order
Photo Part No Description Price (each) Stock
G0AG33F02599AB Member, Body Front Cross Enquire To Order
Photo Part No Description Price (each) Stock
AD43F10120AA MBR FLOOR SIDE FRONT $644.91 To Order
Photo Part No Description Price (each) Stock
AD43F101D11AA MEMBER FLOOR SIDE LOWER ASSY LH SERVICE $3,587.44 To Order
Photo Part No Description Price (each) Stock
AD43F101D10AA MEMBER FLOOR SIDE LOWER ASSY RH SERVICE $2,009.66 To Order
Photo Part No Description Price (each) Stock
AD43F10021AA FLOOR ASSY LH SERVICE $4,975.68 To Order
Photo Part No Description Price (each) Stock
AD43F10020AA/S FLOOR ASSY RH-RAPIDE SERVICE-STAMPED TO CHASSIS No. Enquire To Order
Photo Part No Description Price (each) Stock
GOAD43F54671AA SEAT MOUNT REINFORCE ANGLE $171.21 To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.34 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.12 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.11 To Order
View All

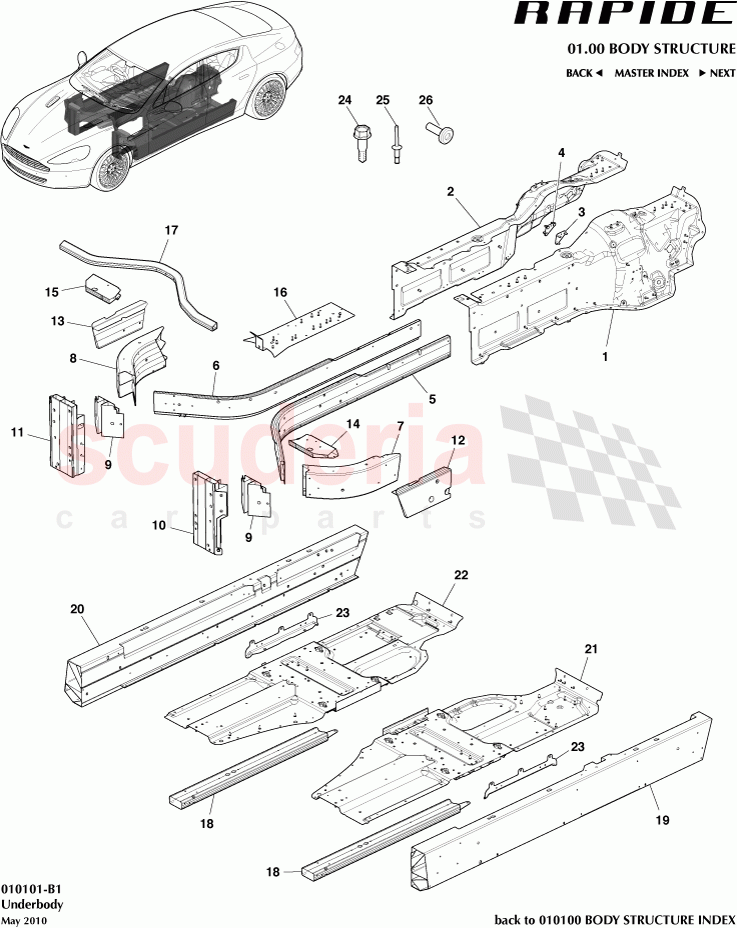

Underbody of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43F13059AC
Side Panel, Tunnel rear LH
Structural Cat. A only 		- 1 Enquire
2 AD43F13058AD
Side Panel, Tunnel rear RH
Structural Cat. A only 		- 1 Enquire
3 AD4366625AA
Plate, stud M8 Bracket inner rear LH
Structural Cat. A only 		$32.87 1
4 AD4366624AA
Plate, stud M8 Bracket inner rear RH
Structural Cat. A only 		$32.87 1
5 AD43F10775AA
Extrusion, tunnel LH
Structural Cat. A only 		- 1 Enquire
6 AD43F10774AA
Extrusion, tunnel RH
Structural Cat. A only 		- 1 Enquire
7 AD4310277AA
Member, Front Side LH
Structural Cat. A only 		$168.13 1
8 AD4310276AB
MBR FRT SD RH
Structural Cat. A only 		$128.95 1
9 P06G33F001K28AB
Bracket, tunnel upper inner
Structural Cat. A only 		- 2 Enquire
10 AD43111E47AA
BRACE TUNNEL UPPER OUTER ASSY LH SERVICE
Service assy, Structural Cat. A only 		$258.32 1
11 AD43111E46AA
BRACE TUNNEL UPPER OUTER ASSY LH SERVICE
Service assy, Structural Cat. A only 		$370.21 1
12 GOAD43100A95AB
Member, lower reinforc front side LH
Structural Cat. A only 		$120.00 1
13 GOAD43100A94AB
Member, lower reinforc front side RH
Structural Cat. A only 		- 1 Enquire
14 GOAD43F10095AB
Member, reinforce front side LH
Structural Cat. A only 		$104.99 1
15 GOAD43F10094AB
Member, reinforce front side RH
Structural Cat. A only 		$104.99 1
16 AD43113C18AA
Panel, tunnel top front
Structural Cat. A only 		- 1 Enquire
17 G0AG33F02599AB
Member, Body Front Cross
Structural Cat. A only 		- 1 Enquire
18 AD43F10120AA
MBR FLOOR SIDE FRONT
Structural Cat. A only 		$644.91 2
19 AD43F101D11AA
MEMBER FLOOR SIDE LOWER ASSY LH SERVICE
Service assy, Structural Cat. A only 		$3,587.44 1
20 AD43F101D10AA
MEMBER FLOOR SIDE LOWER ASSY RH SERVICE
Service assy, Structural Cat. A only 		$2,009.66 1
21 AD43F10021AA
FLOOR ASSY LH SERVICE
Service assy, Structural Cat. A only 		$4,975.68 1
22 AD43F10020AA/S
FLOOR ASSY RH-RAPIDE SERVICE-STAMPED TO CHASSIS No.
Service assy, Structural Cat. A only 		- 1 Enquire
23 GOAD43F54671AA
SEAT MOUNT REINFORCE ANGLE
Structural Cat. A only 		$171.21 2
24 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.34 8
25 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.12 -
26 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		$0.11 2
