Coolant Hoses & Reservoir Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Coolant Hoses & Reservoir Assembly

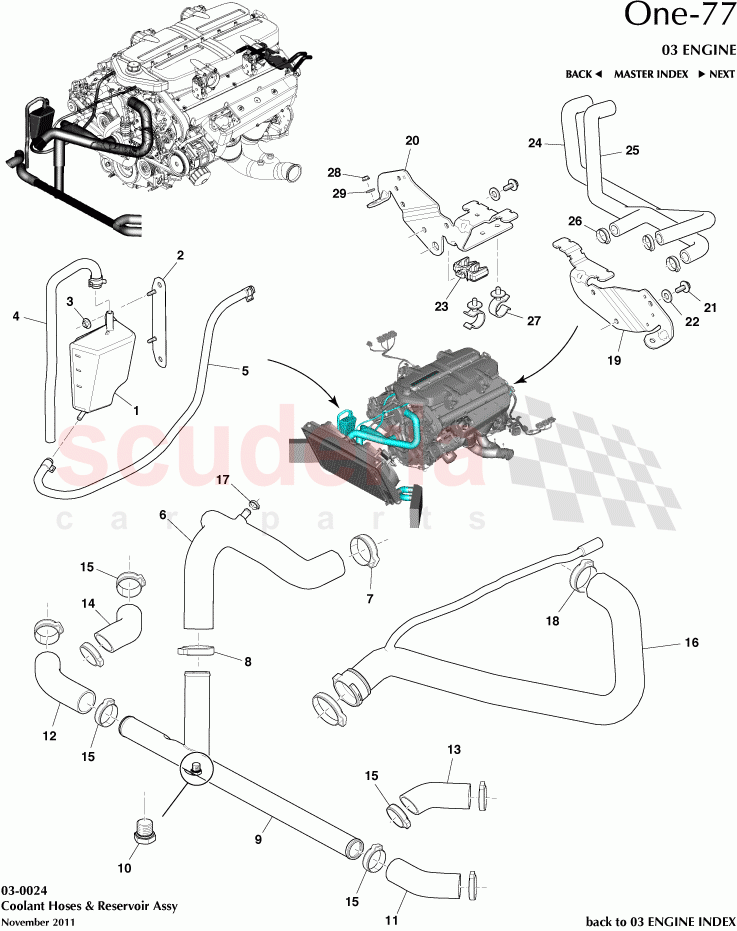

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33TBD2BA Reservoir, Coolant Expansion $56.45 To Order
Photo Part No Description Price (each) Stock
12023038938AB Bracket, Coolant Expansion Reservoir $296.75 To Order
Photo Part No Description Price (each) Stock
703612 Nut & Washer, M6, HVAC to XCB $0.44 IN STOCK
Photo Part No Description Price (each) Stock
4G438N029AA Hose assy, Radiator Overflow Ext Enquire To Order
Photo Part No Description Price (each) Stock
12023038756AE Hose assy, Radiator Supply Tank Enquire To Order
Photo Part No Description Price (each) Stock
12023038044AG Hose, Bottom, Water Pump to Radiator $378.16 To Order
Photo Part No Description Price (each) Stock
12023037092AA Clamp, Oetiker 56mm $5.81 To Order
Photo Part No Description Price (each) Stock
12023037104AA Clamp, Oetiker 57.5mm $5.96 To Order
Photo Part No Description Price (each) Stock
12023038080AL Pipe, Crossover, Side Radiator to Water Pump $1,105.42 To Order
Photo Part No Description Price (each) Stock
12023038716AA Plug, Port Enquire To Order
Photo Part No Description Price (each) Stock
12023038076AD Pipe, Side Radiator Connecting LH Enquire To Order
Photo Part No Description Price (each) Stock
12023038077AA Pipe, Side Radiator Connecting RH Enquire To Order
Photo Part No Description Price (each) Stock
12023038078AE Pipe, Side Radiator to Main Pipe LH $99.48 To Order
Photo Part No Description Price (each) Stock
12023038079AE Pipe, Side Radiator to Main Pipe RH $50.04 To Order
Photo Part No Description Price (each) Stock
12023037100AA Clamp, Oetiker 50mm $5.26 To Order
Photo Part No Description Price (each) Stock
12023038958AC TOP HOSE ASSEMBLY $890.90 To Order
Photo Part No Description Price (each) Stock
12023037082AA Clamp, Oetiker 21mm $3.70 To Order
Photo Part No Description Price (each) Stock
12023037092AA Clamp, Oetiker 56mm $5.81 To Order
Photo Part No Description Price (each) Stock
AY936147XCA Bracket, Harness Carrier LH LHD Enquire To Order
Photo Part No Description Price (each) Stock
AY936147XDA Bracket, Harness Carrier RH LHD Enquire To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.47 IN STOCK
Photo Part No Description Price (each) Stock
PR6125 Washer Enquire To Order
Photo Part No Description Price (each) Stock
4G439F911AA Clip, 2 way Raymond Enquire To Order
Photo Part No Description Price (each) Stock
AY9318D359AA Hose assy, Heater Outlet LHD $290.66 To Order
Photo Part No Description Price (each) Stock
AY9318D334AA Hose assy, Heater Inlet LHD $421.80 To Order
Photo Part No Description Price (each) Stock
699545 HOSE CLAMP OETIKER REF: 025.6 - 706R $2.86 To Order
Photo Part No Description Price (each) Stock
701570 Clip, Swivel 20-24.5mm $0.74 To Order
Photo Part No Description Price (each) Stock
PP1340 Nut Enquire To Order
Photo Part No Description Price (each) Stock
PP8003 Washer Enquire To Order
View All
Coolant Hoses & Reservoir Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AY936147XBB
Bracket, Harness Carrier LH RHD 		$142.55 1
- AY936147XAB
Bracket, Harness Carrier RH RHD 		$160.01 1
1 6G33TBD2BA
Reservoir, Coolant Expansion 		$56.45 1
2 12023038938AB
Bracket, Coolant Expansion Reservoir 		$296.75 1
3 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.44 2
4 4G438N029AA
Hose assy, Radiator Overflow Ext 		- 1 Enquire
5 12023038756AE
Hose assy, Radiator Supply Tank 		- 1 Enquire
6 12023038044AG
Hose, Bottom, Water Pump to Radiator 		$378.16 1
7 12023037092AA
Clamp, Oetiker 56mm
Top Hose assy 		$5.81 1
8 12023037104AA
Clamp, Oetiker 57.5mm
Bottom Hose to Crossover Pipe 		$5.96 1
9 12023038080AL
Pipe, Crossover, Side Radiator to Water Pump 		$1,105.42 1
10 12023038716AA
Plug, Port 		- 1 Enquire
11 12023038076AD
Pipe, Side Radiator Connecting LH 		- 1 Enquire
12 12023038077AA
Pipe, Side Radiator Connecting RH 		- 1 Enquire
13 12023038078AE
Pipe, Side Radiator to Main Pipe LH 		$99.48 1
14 12023038079AE
Pipe, Side Radiator to Main Pipe RH 		$50.04 1
15 12023037100AA
Clamp, Oetiker 50mm
4 per Side Radiator 		$5.26 8
16 12023038958AC
TOP HOSE ASSEMBLY 		$890.90 1
17 12023037082AA
Clamp, Oetiker 21mm
Bottom Hose Bleed 		$3.70 1
18 12023037092AA
Clamp, Oetiker 56mm
Top Hose to Engine 		$5.81 1
19 AY936147XCA
Bracket, Harness Carrier LH LHD 		- 1 Enquire
20 AY936147XDA
Bracket, Harness Carrier RH LHD 		- 1 Enquire
21 703151
Screw M6x16 Washer Hex HD Chrome Free
2 per Bracket
IN STOCK 		$0.47 4
22 PR6125
Washer
2 per Bracket 		- 4 Enquire
23 4G439F911AA
Clip, 2 way Raymond 		- 1 Enquire
24 AY9318D359AA
Hose assy, Heater Outlet LHD 		$290.66 1
25 AY9318D334AA
Hose assy, Heater Inlet LHD 		$421.80 1
26 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R
Heater Inlet/ Outlet Hose 		$2.86 3
27 701570
Clip, Swivel 20-24.5mm 		$0.74 2
28 PP1340
Nut
1 per Bracket 		- 2 Enquire
29 PP8003
Washer 		- 2 Enquire
