Name: Engine Sealing
Rating: 4.8 (1 reviews)

Engine Sealing of Aston Martin Aston Martin One-77

View All

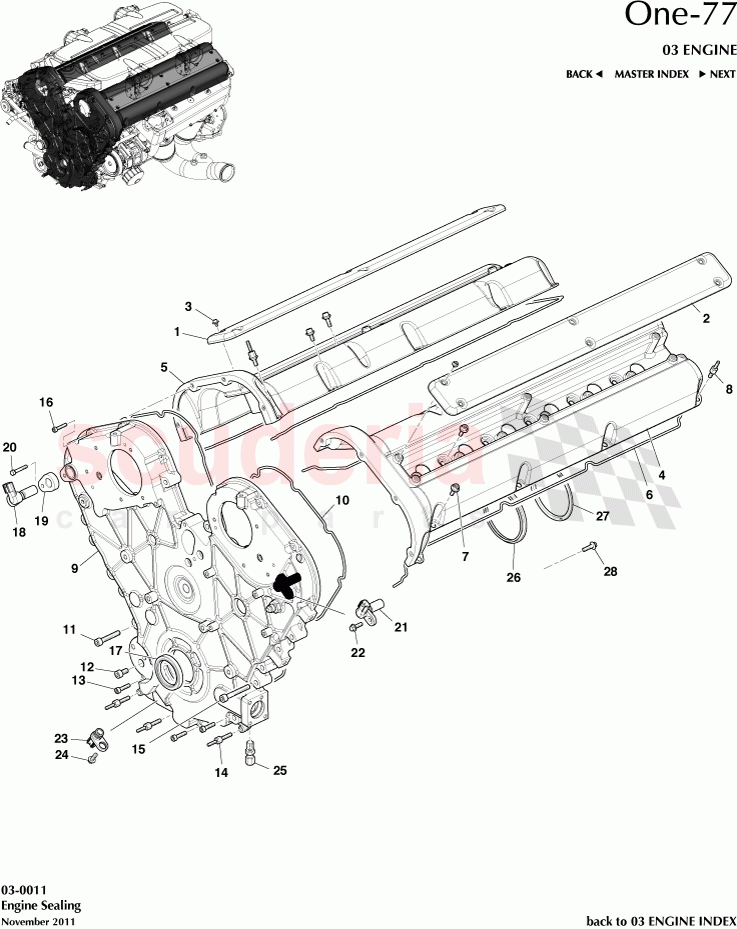

Aston Martin One-77 - Engine Sealing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY936P068AA	COIL COVER - LH	$1,729.31	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930710054	Cover, Coil RH	$1,430.30	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93806705KA	SCREW M4-0.7 x 8	$84.81	To Order

Photo	Part No	Description	Price (each)	Stock
	AY936A505AA	CAM COVER LH	$10,115.06	To Order

Photo	Part No	Description	Price (each)	Stock
	AY936582AA	CAM COVER RH	$10,115.06	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93422999BA	ORING CORD 3mm DIA V	$119.02	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930710039	Screws, M6x16, Cam Covers	$40.55	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930710040	Bolt, Stud M6x16/ M5	$345.68	To Order

Photo	Part No	Description	Price (each)	Stock
	AY936D080AA	FRT CVR BTCH 3	$15,750.58	To Order

Photo	Part No	Description	Price (each)	Stock
	705373	Screw M8x45, Front Cover	$4.65	To Order

Photo	Part No	Description	Price (each)	Stock
	705374	Screw M8x16, Front Cover	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	AY93857799JA	SCREW M6-1 X 25 SCH	$4.32	To Order

Photo	Part No	Description	Price (each)	Stock
	AY931827676AA	STUD BOLT-M5/M6	$885.17	To Order

Photo	Part No	Description	Price (each)	Stock
	AY938910025	Screw, Lower Bracket, Air Con Pump	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	705377	Screw M5x25, Front Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

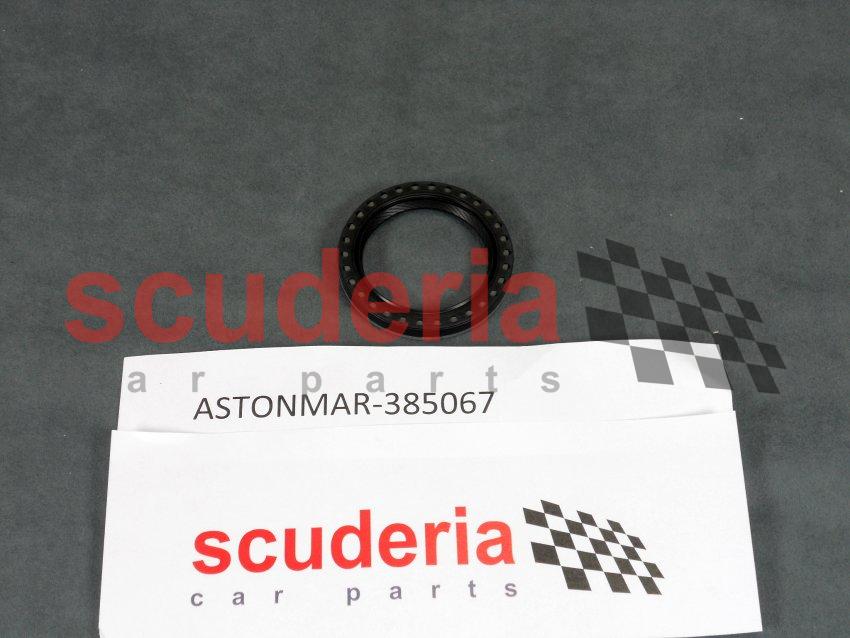

	385067	Oil Seal - Crankshaft Front	$29.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AY930310058	Sensor, Cam RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930710060	Spacer, Cam Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY930710057	Sensor, Cam LH	$431.79	To Order

Photo	Part No	Description	Price (each)	Stock
	AY933910059	Sensor, Crank	$109.08	To Order

Photo	Part No	Description	Price (each)	Stock
	6G433910080	Sensor, Engine Coolant Temperature	$429.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185001	Plug, Cup Expansion	$6.99	To Order

Photo	Part No	Description	Price (each)	Stock

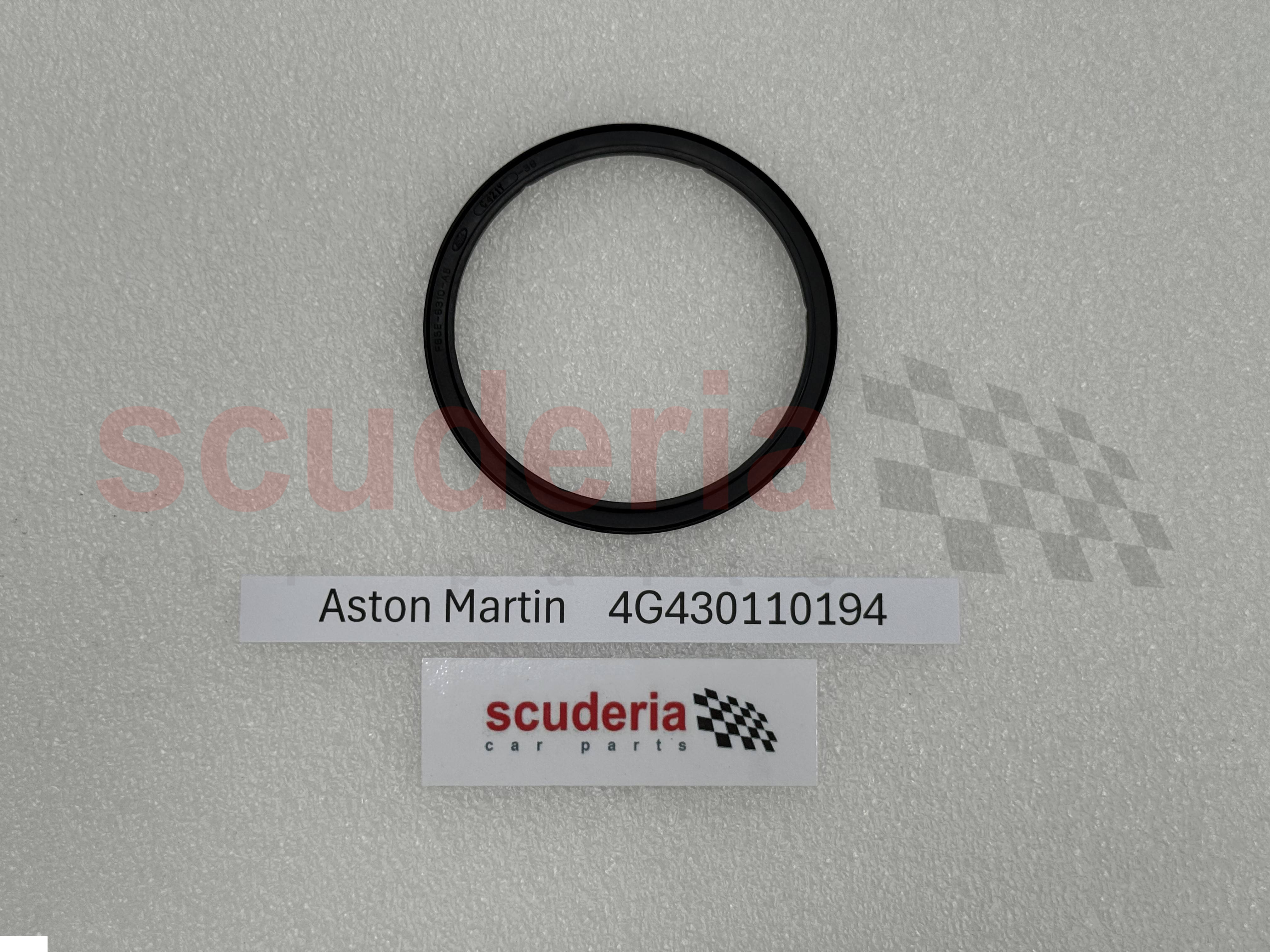

	4G430110194	Slinger, Rear Seal	$28.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	706648	SCREW-M6 x 22 HEX FL	$11.49	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY938527CA	ORING 21mm x 2 SEC	AY938527CA ORING 21mm x 2 SEC	$11.57	1
-	AY930510029	O Ring, Coolant Passage Way	AY930510029 O Ring, Coolant Passage Way	$5.92	1
1	AY936P068AA	COIL COVER - LH	AY936P068AA COIL COVER - LH	$1,729.31	1
2	AY930710054	Cover, Coil RH	AY930710054 Cover, Coil RH	$1,430.30	1
3	AY93806705KA	SCREW M4-0.7 x 8	AY93806705KA SCREW M4-0.7 x 8	$84.81	12
4	AY936A505AA	CAM COVER LH	AY936A505AA CAM COVER LH	$10,115.06	1
5	AY936582AA	CAM COVER RH	AY936582AA CAM COVER RH	$10,115.06	1
6	AY93422999BA	ORING CORD 3mm DIA V	AY93422999BA ORING CORD 3mm DIA V	$119.02	2
7	AY930710039	Screws, M6x16, Cam Covers	AY930710039 Screws, M6x16, Cam Covers	$40.55	26
8	AY930710040	Bolt, Stud M6x16/ M5	AY930710040 Bolt, Stud M6x16/ M5	$345.68	3
9	AY936D080AA	FRT CVR BTCH 3	AY936D080AA FRT CVR BTCH 3	$15,750.58	1
11	705373	Screw M8x45, Front Cover	705373 Screw M8x45, Front Cover	$4.65	13
12	705374	Screw M8x16, Front Cover	705374 Screw M8x16, Front Cover	$3.33	1
13	AY93857799JA	SCREW M6-1 X 25 SCH	AY93857799JA SCREW M6-1 X 25 SCH	$4.32	3
14	AY931827676AA	STUD BOLT-M5/M6	AY931827676AA STUD BOLT-M5/M6	$885.17	3
15	AY938910025	Screw, Lower Bracket, Air Con Pump	AY938910025 Screw, Lower Bracket, Air Con Pump	$2.92	1
16	705377	Screw M5x25, Front Cover	705377 Screw M5x25, Front Cover	-	8	Enquire
17	385067	Oil Seal - Crankshaft Front IN STOCK	385067 Oil Seal - Crankshaft Front IN STOCK	$29.42	1
18	AY930310058	Sensor, Cam RH	AY930310058 Sensor, Cam RH	-	1	Enquire
19	AY930710060	Spacer, Cam Sensor	AY930710060 Spacer, Cam Sensor	-	1	Enquire
21	AY930710057	Sensor, Cam LH	AY930710057 Sensor, Cam LH	$431.79	1
23	AY933910059	Sensor, Crank	AY933910059 Sensor, Crank	$109.08	1
25	6G433910080	Sensor, Engine Coolant Temperature IN STOCK	6G433910080 Sensor, Engine Coolant Temperature IN STOCK	$429.47	1
26	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion	$6.99	1
27	4G430110194	Slinger, Rear Seal IN STOCK	4G430110194 Slinger, Rear Seal IN STOCK	$28.63	1
28	706648	SCREW-M6 x 22 HEX FL	706648 SCREW-M6 x 22 HEX FL	$11.49	6
