Aston Martin One-77 - Air Con Lines & Fittings at HVAC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023038560AB Bracket, canister ,A/C Receiver Drier $436.37 To Order
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
12023038130AD Hose Assy, Drier to Condenser $1,563.33 To Order
Photo Part No Description Price (each) Stock
12023038134AE Hose Assy, Drier to HVAC $2,939.16 To Order
Photo Part No Description Price (each) Stock
694891TBC P Clip, 10mm Enquire To Order
Photo Part No Description Price (each) Stock
12023038132AF Hose Assy, Compressor to Condenser $1,854.42 To Order
Photo Part No Description Price (each) Stock
12023038338AD PIPE SUPPORT $2,353.72 To Order
Photo Part No Description Price (each) Stock
12023038746AB Hose Assy, Comp to Cond, Engine Fit $658.30 To Order
Photo Part No Description Price (each) Stock
12023038744AB Hose Assy, Comp to HVAC, Engine Fit $773.87 To Order
Photo Part No Description Price (each) Stock
12023038136AE Hose Assy, Comp to HVAC $978.30 To Order
View All

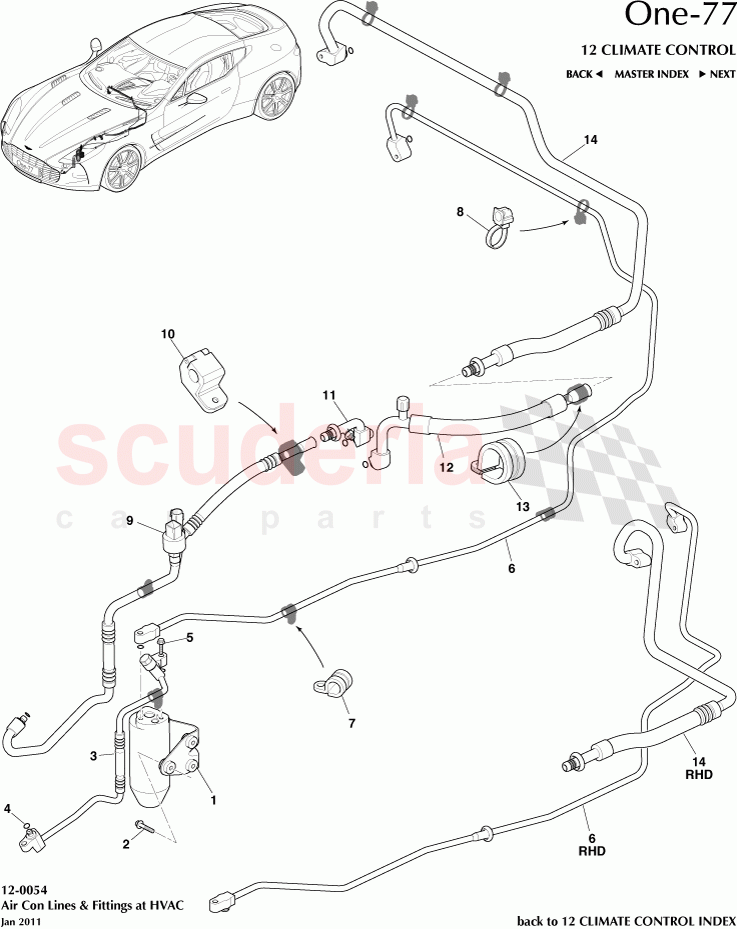

Air Con Lines & Fittings at HVAC of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 12023038135AB
Hose Assy, Drier to HVAC. RHD 		$2,432.61 1
- 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
IN STOCK 		$5.30 1
- 12023038137AA
Hose Assy, Comp to HVAC, RHD 		- 1 Enquire
1 12023038560AB
Bracket, canister ,A/C Receiver Drier 		$436.37 1
2 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 3
3 12023038130AD
Hose Assy, Drier to Condenser 		$1,563.33 1
6 12023038134AE
Hose Assy, Drier to HVAC 		$2,939.16 1
7 694891TBC
P Clip, 10mm 		- 3 Enquire
9 12023038132AF
Hose Assy, Compressor to Condenser 		$1,854.42 1
10 12023038338AD
PIPE SUPPORT 		$2,353.72 1
11 12023038746AB
Hose Assy, Comp to Cond, Engine Fit 		$658.30 1
12 12023038744AB
Hose Assy, Comp to HVAC, Engine Fit 		$773.87 1
14 12023038136AE
Hose Assy, Comp to HVAC 		$978.30 1
