Aston Martin One-77 - HVAC Air Intake Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023038064AD Duct, HVAC, LHD $7,285.45 To Order
Photo Part No Description Price (each) Stock
12023038274AA Grill, HVAC Intake, LHD $1,529.97 To Order
Photo Part No Description Price (each) Stock
12023038536AD Tube, HVAC Drain, LHD $408.00 To Order
Photo Part No Description Price (each) Stock
NSS  Seat Belt Loops Frt/ Rear and Left/Right Enquire To Order
Photo Part No Description Price (each) Stock
4G4318A660BA DUCT - HEATER AIR INLET $85.74 To Order
Photo Part No Description Price (each) Stock
703085 Screw M6x12 PC TI8 $0.76 IN STOCK
View All

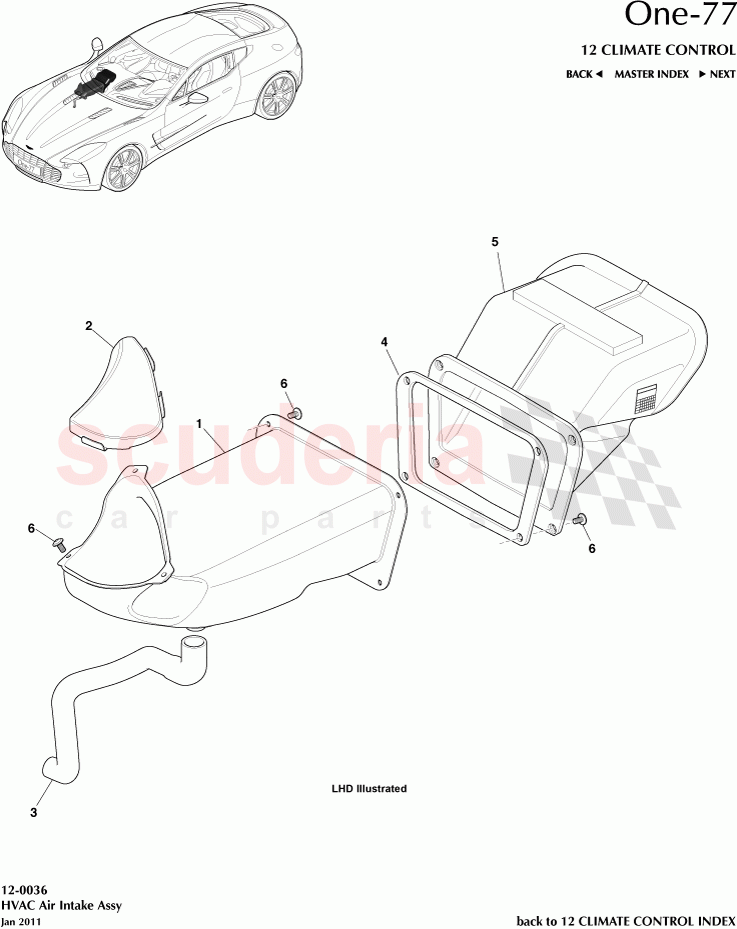

HVAC Air Intake Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 12023038065AA
Duct, HVAC, RHD 		$7,285.45 1
- 12023038275AA
Grill, HVAC Intake, RHD 		$743.13 1
- 12023038537AA
Tube, HVAC Drain, RHD 		- 1 Enquire
1 12023038064AD
Duct, HVAC, LHD 		$7,285.45 1
2 12023038274AA
Grill, HVAC Intake, LHD 		$1,529.97 1
3 12023038536AD
Tube, HVAC Drain, LHD 		$408.00 1
4 NSS
 Seat Belt Loops Frt/ Rear and Left/Right 		- 1 Enquire
5 4G4318A660BA
DUCT - HEATER AIR INLET 		$85.74 1
6 703085
Screw M6x12 PC TI8
IN STOCK 		$0.76 11
