Air Charging

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Air Charging

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G439600CD Air Filter Box LH $349.37 IN STOCK
Photo Part No Description Price (each) Stock
4G430410AA Screw - 5.2x32 Self Tap $2.15 IN STOCK
Photo Part No Description Price (each) Stock
4G439C664AB Gasket - Air Cleaner Housing $17.77 IN STOCK
Photo Part No Description Price (each) Stock
4G439601ABPK Air Filter (Pack of 2) $161.09 IN STOCK
Photo Part No Description Price (each) Stock
4G439B609AC BRACKET - AIR CLEANER OUTER $148.69 IN STOCK
Photo Part No Description Price (each) Stock
703161 Nut Hex M8 Flanged $0.85 IN STOCK
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
4G435144AA Spacer, Engine Airbox Isolator $13.31 IN STOCK
Photo Part No Description Price (each) Stock
4G439697CA Grommet, Engine Airbox $12.31 IN STOCK
Photo Part No Description Price (each) Stock
CD339B609FA Bracket, Air Cleaner Outer $26.19 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.40 IN STOCK
Photo Part No Description Price (each) Stock
4G439A675CD Duct - Air Intake LH $148.66 To Order
Photo Part No Description Price (each) Stock
4G436C704AA O Ring - Engine Duct $20.55 IN STOCK
Photo Part No Description Price (each) Stock
4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) $7.88 IN STOCK
Photo Part No Description Price (each) Stock
4G439N967AA Grommet - ENG A/CLNR Tub EXT $98.94 IN STOCK
Photo Part No Description Price (each) Stock
4G4312B612AB Body - Engine Electronic Mas Air Flow Sensor $25.16 IN STOCK
Photo Part No Description Price (each) Stock
4G439N832BB HOSE CLAMP DUCT TO AIRBOX $12.67 ARRIVING SOON
Photo Part No Description Price (each) Stock
CD339C623AB Duct Assy, Air Cleaner to Engine LH $395.78 To Order
Photo Part No Description Price (each) Stock
4G4318K261AA EDGE PROTECTION STRIP $5.60 To Order
Photo Part No Description Price (each) Stock
4G430810933 Mass Air Flow Meter $132.47 IN STOCK
Photo Part No Description Price (each) Stock
4G430410BB Screw, M35 x 12 Self Tap $6.22 IN STOCK
Photo Part No Description Price (each) Stock
4G436C704BA O-Ring Engine Duct Interior $22.85 IN STOCK
View All

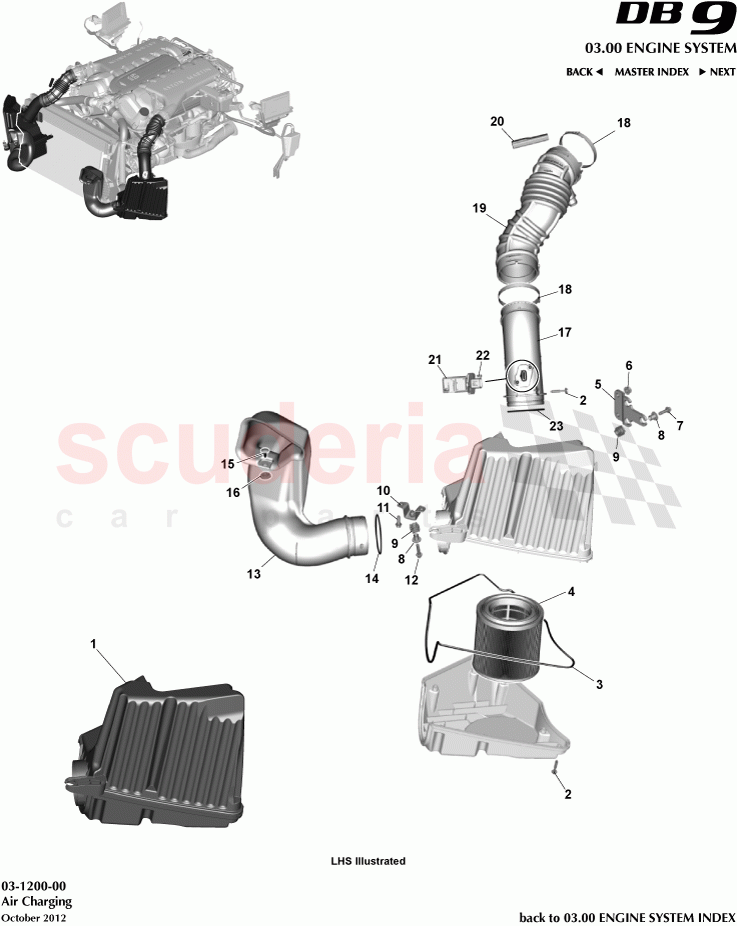

Air Charging of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G439600BD
Airbox RH
IN STOCK 		$349.37 1
- 4G439A675BD
Duct- Air Intake RHS
Includes Item 14 & 16
IN STOCK 		$148.66 1
- CD339C623BB
Duct Assy, Air Cleaner to Engine RH
Includes Item 18 		$395.82 1
1 4G439600CD
Air Filter Box LH
IN STOCK 		$349.37 1
2 4G430410AA
Screw - 5.2x32 Self Tap
IN STOCK 		$2.15 20
3 4G439C664AB
Gasket - Air Cleaner Housing
IN STOCK 		$17.77 2
4 4G439601ABPK
Air Filter (Pack of 2)
Pack of 2
IN STOCK 		$161.09 2
5 4G439B609AC
BRACKET - AIR CLEANER OUTER
IN STOCK 		$148.69 2
6 703161
Nut Hex M8 Flanged
IN STOCK 		$0.85 8
7 703025
Screw, M6 x 25, Hex Flange Head
IN STOCK 		$0.19 4
8 4G435144AA
Spacer, Engine Airbox Isolator
IN STOCK 		$13.31 8
9 4G439697CA
Grommet, Engine Airbox
IN STOCK 		$12.31 8
10 CD339B609FA
Bracket, Air Cleaner Outer
IN STOCK 		$26.19 2
11 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 4
12 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.40 4
13 4G439A675CD
Duct - Air Intake LH
Includes Item 14 & 16 		$148.66 1
14 4G436C704AA
O Ring - Engine Duct
IN STOCK 		$20.55 2
15 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)
Pack of 20
IN STOCK 		$7.88 2
16 4G439N967AA
Grommet - ENG A/CLNR Tub EXT
IN STOCK 		$98.94 2
17 4G4312B612AB
Body - Engine Electronic Mas Air Flow Sensor
Includes Item 23
IN STOCK 		$25.16 2
18 4G439N832BB
HOSE CLAMP DUCT TO AIRBOX
ARRIVING SOON 		$12.67 4
19 CD339C623AB
Duct Assy, Air Cleaner to Engine LH
Includes Item 18 		$395.78 1
20 4G4318K261AA
EDGE PROTECTION STRIP 		$5.60 2
21 4G430810933
Mass Air Flow Meter
IN STOCK 		$132.47 2
22 4G430410BB
Screw, M35 x 12 Self Tap
IN STOCK 		$6.22 4
23 4G436C704BA
O-Ring Engine Duct Interior
IN STOCK 		$22.85 2
