Accessory Drive

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Accessory Drive

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3310300AA Alternator, 200A $1,333.44 IN STOCK
Photo Part No Description Price (each) Stock
CD3310239AB BRKT ASY-ALT MTG Enquire To Order
Photo Part No Description Price (each) Stock
CD3314W163AC Bracket, Alternator Harness Support $40.27 To Order
Photo Part No Description Price (each) Stock
700140 Bolt and Washer, M10 x 97.5 $37.37 To Order
Photo Part No Description Price (each) Stock
704079 Bolt, M10 x 150, Hex Flg Hd $7.84 To Order
Photo Part No Description Price (each) Stock
703692 Bolt, flg, M10x45, Alt bkt to cl hd $20.67 To Order
Photo Part No Description Price (each) Stock
697759 Dowel, hollow, 14.0 X 17.5 Enquire To Order
Photo Part No Description Price (each) Stock
AD4319D629AA COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT $976.51 To Order
Photo Part No Description Price (each) Stock
702557 BOLT M8 X 100 HF 8 $23.59 To Order
Photo Part No Description Price (each) Stock
DG433A696AA Pump and Pulley, PAS $3,294.33 To Order
Photo Part No Description Price (each) Stock
AD4336189AC Support Bracket, PAS Pump Enquire To Order
Photo Part No Description Price (each) Stock
707752 SCREW-M8 x 1.25 x 35 $1.09 To Order
Photo Part No Description Price (each) Stock
702859 PIN $8.77 To Order
Photo Part No Description Price (each) Stock
1R120510488 Pulley, Engine Idler $99.74 ARRIVING SOON
Photo Part No Description Price (each) Stock
707627 SCREW M8 X 25MM HEX HEAD $7.76 IN STOCK
Photo Part No Description Price (each) Stock
1R120510530 Idler Pulley Grooved $141.09 To Order
Photo Part No Description Price (each) Stock
585368 Tensioner Drive Belt $249.73 IN STOCK
Photo Part No Description Price (each) Stock
ED238620AA Feed Drive Belt $82.40 IN STOCK
Photo Part No Description Price (each) Stock
703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE $0.49 To Order
Photo Part No Description Price (each) Stock
ED23592072AA Spacer Assembly $85.89 To Order
View All

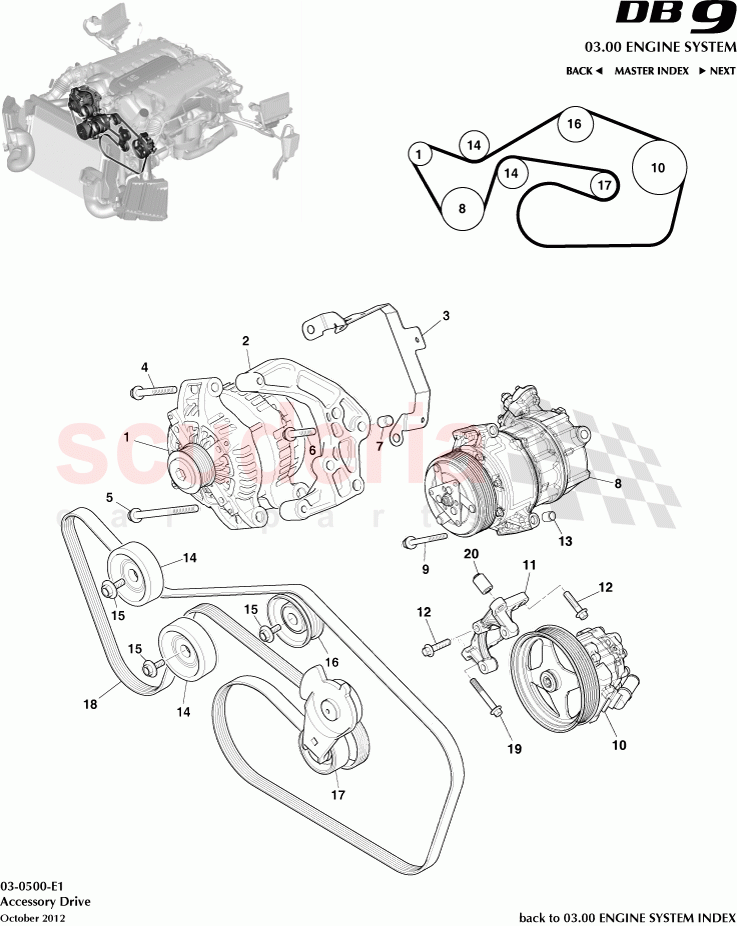

Accessory Drive of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3310300AA
Alternator, 200A
IN STOCK 		$1,333.44 1
2 CD3310239AB
BRKT ASY-ALT MTG 		- 1 Enquire
3 CD3314W163AC
Bracket, Alternator Harness Support 		$40.27 1
4 700140
Bolt and Washer, M10 x 97.5 		$37.37 2
5 704079
Bolt, M10 x 150, Hex Flg Hd 		$7.84 1
6 703692
Bolt, flg, M10x45, Alt bkt to cl hd 		$20.67 3
7 697759
Dowel, hollow, 14.0 X 17.5 		- 2 Enquire
8 AD4319D629AA
COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT 		$976.51 1
9 702557
BOLT M8 X 100 HF 8 		$23.59 3
10 DG433A696AA
Pump and Pulley, PAS 		$3,294.33 1
11 AD4336189AC
Support Bracket, PAS Pump 		- 1 Enquire
12 707752
SCREW-M8 x 1.25 x 35 		$1.09 5
13 702859
PIN 		$8.77 2
14 1R120510488
Pulley, Engine Idler
ARRIVING SOON 		$99.74 2
15 707627
SCREW M8 X 25MM HEX HEAD
IN STOCK 		$7.76 3
16 1R120510530
Idler Pulley Grooved 		$141.09 1
17 585368
Tensioner Drive Belt
IN STOCK 		$249.73 1
18 ED238620AA
Feed Drive Belt
IN STOCK 		$82.40 1
19 703193
BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE 		$0.49 2
20 ED23592072AA
Spacer Assembly 		$85.89 2
