Clutch Hydraulics

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Clutch Hydraulics

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
33125415AA CLUTCH MASTER CYLINDER - GT $903.09 To Order
33125421AA C.S.C. BLEED ADAPTOR WASHER - GT $1.58 To Order
33125420AA FEED ADAPTOR - GT $19.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
697133 SCREW M8 x 20 HEX HEAD GRD 8.8 $0.80 To Order
Photo Part No Description Price (each) Stock
697131 WASHER 5/16 SPRING $0.74 To Order
Photo Part No Description Price (each) Stock
2981266 PIN-5/16inDIA SHANKx 1/2in LONG $2.73 To Order
Photo Part No Description Price (each) Stock
6G3327328AA Clip, Safety, Nom Shaft, 5/16 $0.66 To Order
Photo Part No Description Price (each) Stock
3380240 CLUTCH GASKET $1.88 To Order
Photo Part No Description Price (each) Stock
3380486 BOLT-BANJO 3/8in UNF $13.87 To Order
Photo Part No Description Price (each) Stock
3381138 WASHER-COPPER 10.2 ID x 14. 0 OD 1.5mm THICK $0.90 To Order
Photo Part No Description Price (each) Stock
697347 SCREW 3/8 UNF x 3/8 HEX HEAD $0.38 To Order
Photo Part No Description Price (each) Stock
3384731 WASHER COPPER 0.433 id 3/4 od $2.14 To Order
Photo Part No Description Price (each) Stock
3380485 BANJO ADAPT-STRAIGHT 3/8in UNF $46.70 To Order
Photo Part No Description Price (each) Stock
697105 WASHER-COPPER 25/64inIDx 5/8in OD $0.19 To Order
Photo Part No Description Price (each) Stock
33121337AB CLUTCH PIPES MASTER CYLINDER TO T PIECE LHD $7.20 To Order
33121336AC CLUTCH PIPE RHD MASTER CYLINDER TO T PIECE $13.03 To Order
Photo Part No Description Price (each) Stock
33123504AA CLUTCH PIPE RHD T PIECE TO FLEXI HOSE $11.25 To Order
33120059AA CLUTCH PIPE LHD ''T' PIECE TO FLEXI HOSE $8.46 To Order
Photo Part No Description Price (each) Stock
3384322 `T' PIECE-CLUTCH PIPE $164.37 To Order
Photo Part No Description Price (each) Stock
1186531 KIT-PRESSURE SWITCH $370.14 To Order
Photo Part No Description Price (each) Stock
11122078AA SEALING WASHER $6.65 To Order
Photo Part No Description Price (each) Stock
11122077AA Adaptor $18.15 To Order
Photo Part No Description Price (each) Stock
3384731 WASHER COPPER 0.433 id 3/4 od $2.14 To Order
Photo Part No Description Price (each) Stock
697633 NUT-M12 x 1mm $0.13 To Order
Photo Part No Description Price (each) Stock
703130 Washer Shake Proof EXT M12 Chrome Free $0.11 IN STOCK
Photo Part No Description Price (each) Stock
33121341AA BRACKET CLUTCH PIPE $34.97 To Order
Photo Part No Description Price (each) Stock
33125418AA FLEX HOSE ASY CLUTCH - GT $269.83 To Order
33121338AA ASSY FLEX HOSE CLUTCH $127.43 To Order
Photo Part No Description Price (each) Stock
33125421AA C.S.C. BLEED ADAPTOR WASHER - GT $1.58 To Order
1R12382661AC HOSE ASSY CSC BLEED $331.88 To Order
33125417AA C.S.C. BLEEDER ADAPTOR - GT $50.36 To Order
...and 1 more part variants. See table on right for more details.
View All

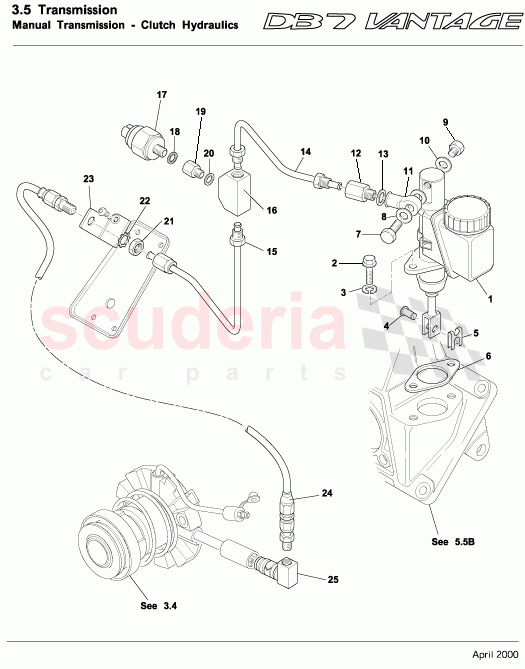

Clutch Hydraulics of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 33125415AA
CLUTCH MASTER CYLINDER - GT
GT 		$903.09 1
1 33125421AA
C.S.C. BLEED ADAPTOR WASHER - GT
GT 		$1.58 1
1 33125420AA
FEED ADAPTOR - GT
GT 		$19.90 1
1 33122010AA
CLUTCH MASTER CYLINDER 		$654.03 1
2 697133
SCREW M8 x 20 HEX HEAD GRD 8.8 		$0.80 2
3 697131
WASHER 5/16 SPRING 		$0.74 2
4 2981266
PIN-5/16inDIA SHANKx 1/2in LONG 		$2.73 1
5 6G3327328AA
Clip, Safety, Nom Shaft, 5/16 		$0.66 1
6 3380240
CLUTCH GASKET 		$1.88 1
7 3380486
BOLT-BANJO 3/8in UNF 		$13.87 1
8 3381138
WASHER-COPPER 10.2 ID x 14. 0 OD 1.5mm THICK 		$0.90 2
9 697347
SCREW 3/8 UNF x 3/8 HEX HEAD 		$0.38 1
10 3384731
WASHER COPPER 0.433 id 3/4 od 		$2.14 1
11 3380485
BANJO ADAPT-STRAIGHT 3/8in UNF 		$46.70 1
13 697105
WASHER-COPPER 25/64inIDx 5/8in OD 		$0.19 1
14 33121337AB
CLUTCH PIPES MASTER CYLINDER TO T PIECE LHD
LHD 		$7.20 1
14 33121336AC
CLUTCH PIPE RHD MASTER CYLINDER TO T PIECE
RHD 		$13.03 1
15 33123504AA
CLUTCH PIPE RHD T PIECE TO FLEXI HOSE
RHD 		$11.25 1
15 33120059AA
CLUTCH PIPE LHD ''T' PIECE TO FLEXI HOSE
LHD 		$8.46 1
16 3384322
`T' PIECE-CLUTCH PIPE 		$164.37 1
17 1186531
KIT-PRESSURE SWITCH 		$370.14 1
18 11122078AA
SEALING WASHER 		$6.65 1
19 11122077AA
Adaptor 		$18.15 1
20 3384731
WASHER COPPER 0.433 id 3/4 od 		$2.14 1
21 697633
NUT-M12 x 1mm 		$0.13 1
22 703130
Washer Shake Proof EXT M12 Chrome Free
IN STOCK 		$0.11 1
23 33121341AA
BRACKET CLUTCH PIPE 		$34.97 1
24 33125418AA
FLEX HOSE ASY CLUTCH - GT
GT 		$269.83 1
24 33121338AA
ASSY FLEX HOSE CLUTCH 		$127.43 1
25 33125421AA
C.S.C. BLEED ADAPTOR WASHER - GT
GT 		$1.58 1
25 1R12382661AC
HOSE ASSY CSC BLEED
GT 		$331.88 1
25 33125417AA
C.S.C. BLEEDER ADAPTOR - GT
GT 		$50.36 1
25 11121567AA
ADAPTOR HYDRAULIC 		$84.84 1
