Aston Martin DB7 Vantage - Automatic Transmission - Gearbox Cooling

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
32124654AA CONNECTOR COOLER PIPE RETURN $68.66 To Order
32120301AF ASSY PIPE-COOLER RETURN-AUTO TRANS $885.99 To Order
Photo Part No Description Price (each) Stock
32124653AA CONNECTOR COOLER PIPE FEED $87.43 To Order
32124670AA ADAPTER CONNECTOR PIPE (1/2 BSP) $8.28 To Order
32120300AG PIPE ASSY COOLER FEED AUTO TRANS $112.43 To Order
Photo Part No Description Price (each) Stock
4286036 O RING $11.42 To Order
Photo Part No Description Price (each) Stock
42120687AC Clamping plate Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.31 IN STOCK
Photo Part No Description Price (each) Stock

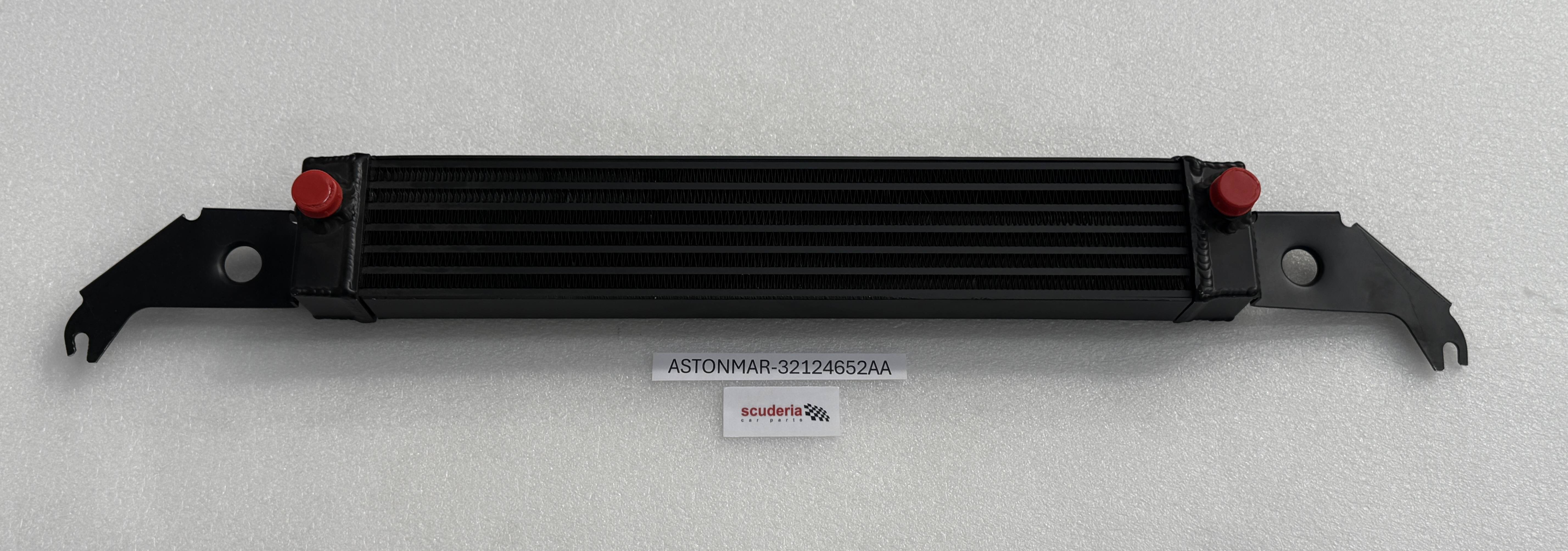

32124652AA AUTO TRANSMISSION COOLER MIDDLE EAST $880.63 IN STOCK
7782546 SEAL-NUMBER PLATE HOUSING-790mm lg $69.95 To Order
699084 SCREW M6 x 18 FLG HD $0.47 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4481589 MOUNTING RUBBER $11.98 To Order
Photo Part No Description Price (each) Stock
4481588 MTG BRKT-OIL COOLER $66.66 To Order
Photo Part No Description Price (each) Stock
697121 NUT/WASHER ASSY-M6 $1.35 To Order
Photo Part No Description Price (each) Stock
32121641AC PIPE ASSY COOLER FEED AUTO TRANS $45.15 To Order
Photo Part No Description Price (each) Stock
32121506AA CLAMP PLATE - TRANS COOLER PIPES $11.95 To Order
Photo Part No Description Price (each) Stock
32121500AB ASSY SUPPORT BRKT - TRANS COOLER PIPES $23.59 To Order
Photo Part No Description Price (each) Stock
697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8 $1.67 To Order
Photo Part No Description Price (each) Stock
700332 Nut, M6, paint clearing Enquire To Order
Photo Part No Description Price (each) Stock
697123 WASHER 1/4 PLAIN FORM A $0.09 To Order
Photo Part No Description Price (each) Stock
699328 `O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING $3.09 IN STOCK
Photo Part No Description Price (each) Stock
37122811AA CLIP $1.92 To Order
Photo Part No Description Price (each) Stock
32122836AC ASSY JUMP HOSE -AUTO TRANS COOLING $295.99 To Order
Photo Part No Description Price (each) Stock
37122811AA CLIP $1.92 To Order
Photo Part No Description Price (each) Stock
32122324AC ASSY THERMOSTAT - AUTO TRANS COOLING $1,442.85 To Order
Photo Part No Description Price (each) Stock
32124726AA RETAINING PLATE OIL COOLER HOSE $15.58 To Order
3781933 STRIP EDGE $2.17 To Order
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
View All
Automatic Transmission - Gearbox Cooling of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 32124654AA
CONNECTOR COOLER PIPE RETURN
Middle East cars 		$68.66 1
1 32120301AF
ASSY PIPE-COOLER RETURN-AUTO TRANS 		$885.99 1
2 32124653AA
CONNECTOR COOLER PIPE FEED
Middle East cars 		$87.43 1
2 32124670AA
ADAPTER CONNECTOR PIPE (1/2 BSP)
Middle East cars 		$8.28 2
2 32120300AG
PIPE ASSY COOLER FEED AUTO TRANS 		$112.43 1
3 4286036
O RING 		$11.42 4
4 42120687AC
Clamping plate 		- 2 Enquire
5 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.31 1
6 32124652AA
AUTO TRANSMISSION COOLER MIDDLE EAST
Middle East cars
IN STOCK 		$880.63 1
6 7782546
SEAL-NUMBER PLATE HOUSING-790mm lg
Middle East cars 		$69.95 1
6 699084
SCREW M6 x 18 FLG HD
Middle East cars 		$0.47 2
6 3381094
Strip, Edge Protection, 65mm
Middle East cars 		$5.53 4
6 32121643AB
OIL COOLER AUTO TRAN BLACK 		$352.10 1
7 4481589
MOUNTING RUBBER 		$11.98 2
8 4481588
MTG BRKT-OIL COOLER 		$66.66 2
9 697121
NUT/WASHER ASSY-M6 		$1.35 4
10 32121641AC
PIPE ASSY COOLER FEED AUTO TRANS 		$45.15 1
11 32121506AA
CLAMP PLATE - TRANS COOLER PIPES 		$11.95 3
12 32121500AB
ASSY SUPPORT BRKT - TRANS COOLER PIPES 		$23.59 3
13 697106
SCREW M8 x 20 HEX FLANGE HD GRD 8.8 		$1.67 3
14 700332
Nut, M6, paint clearing 		- 3 Enquire
15 697123
WASHER 1/4 PLAIN FORM A 		$0.09 3
16 699328
`O RING 10.82ID x 1.78 VITON MANUAL G/BOX COOLING
IN STOCK 		$3.09 6
17 37122811AA
CLIP 		$1.92 2
18 32122836AC
ASSY JUMP HOSE -AUTO TRANS COOLING 		$295.99 1
19 37122811AA
CLIP 		$1.92 1
20 32122324AC
ASSY THERMOSTAT - AUTO TRANS COOLING 		$1,442.85 1
21 32124726AA
RETAINING PLATE OIL COOLER HOSE 		$15.58 1
21 3781933
STRIP EDGE 		$2.17 1
21 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 2
