Find Your Part
# Part Qty on
Diagram
Price
(each)
Buy

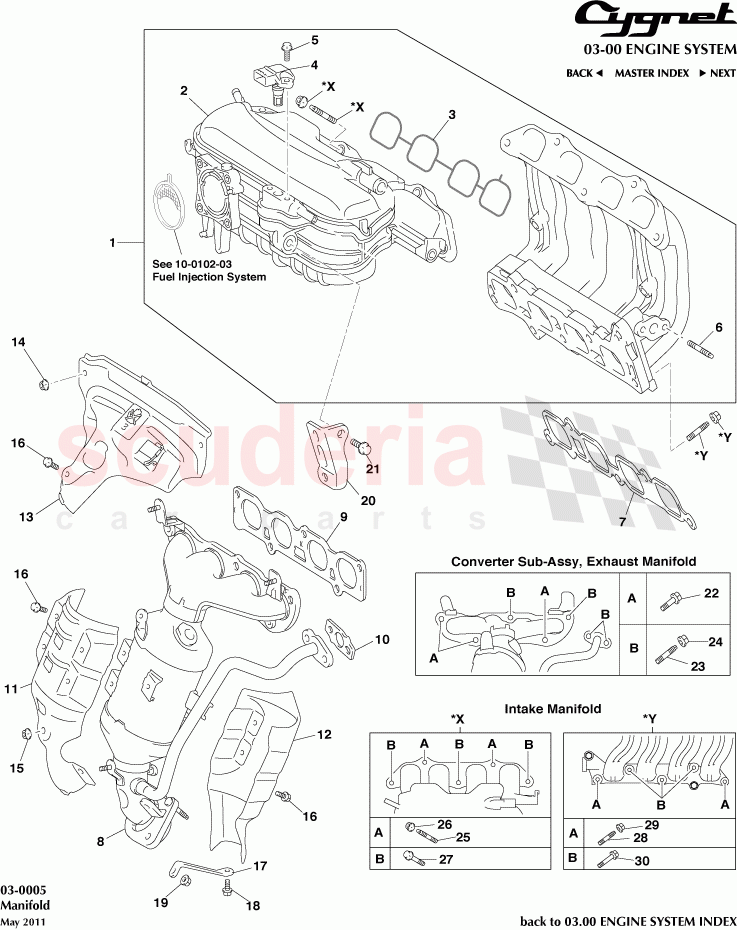

1 17120-47020 - Manifold, Intake
1 Enquire
2 22271-47020 - Gasket, Throttle Body
1 $4.35
3 17177-47020 - Gasket, Intake Manifold to Head, N0.1
1 $12.47
4 89421-52010 - Sensor Assy, Vacuum, E.F.I.
1 Enquire
5 91551-80614 - Bolt, Flange NF05
2 $0.99
6 90126-06029 - Stud, Hexalobul NF07
2 $0.83
7 17178-47010 - Gasket, Intake Manifold to Head, N0.2
1 $5.97
8 25051-47060 - Converter Sub-Assy, Exhaust Manifold
1 $387.42
9 17173-47020 - Gasket, Exhaust Manifold to Head
1 $11.85
10 25628-47010 - Gasket, EGR Inlet
1 $0.66
11 17168-47020 - Insulator, Exhaust manifold Heat, No.2
1 Enquire
12 17169-47011 - Insulator, Exhaust manifold Heat, No.3
1 Enquire
13 17167-47022 - Insulator, Exhaust manifold Heat, No.1
1 Enquire
14 90179-06319 - Nut, with Washer
2 $1.15
15 94151-80641 - Nut, Flange
1 $0.76
16 91673-A0612 - Bolt, Flange
4 $0.76
17 17118-47020 - Stay, Manifold
1 Enquire
18 91673-80825 - Bolt, Flange
1 $1.27
24 94150-80830 - Nut, Flange
4 $1.31
20 17138-47010 - Stay, Intake Manifold
1 Enquire
21 91671-80820 - Bolt, Transmission Control Cable Bracket
2 Enquire
22 91671-80830 - Bolt, Flange
3 $1.01
23 90126-08063 - Bolt, Stud, Exhaust Manifold to Cylinder Head
4 Enquire
28 90126-08060 - Bolt, Stud, Inlet Manifold to Cylinder Head
2 Enquire
26 94151-80841 - Nut, Flange
2 $1.01
27 91671-80835 - Bolt, Flange with Washer
3 $1.31
29 94151-80800 - Nut, Transmission Control Cable
2 Enquire
30 91551-80850 - Bolt, Flange, Injector
3 $1.31
