Find Your Part
# Part Qty on
Diagram
Price
(each)
Buy

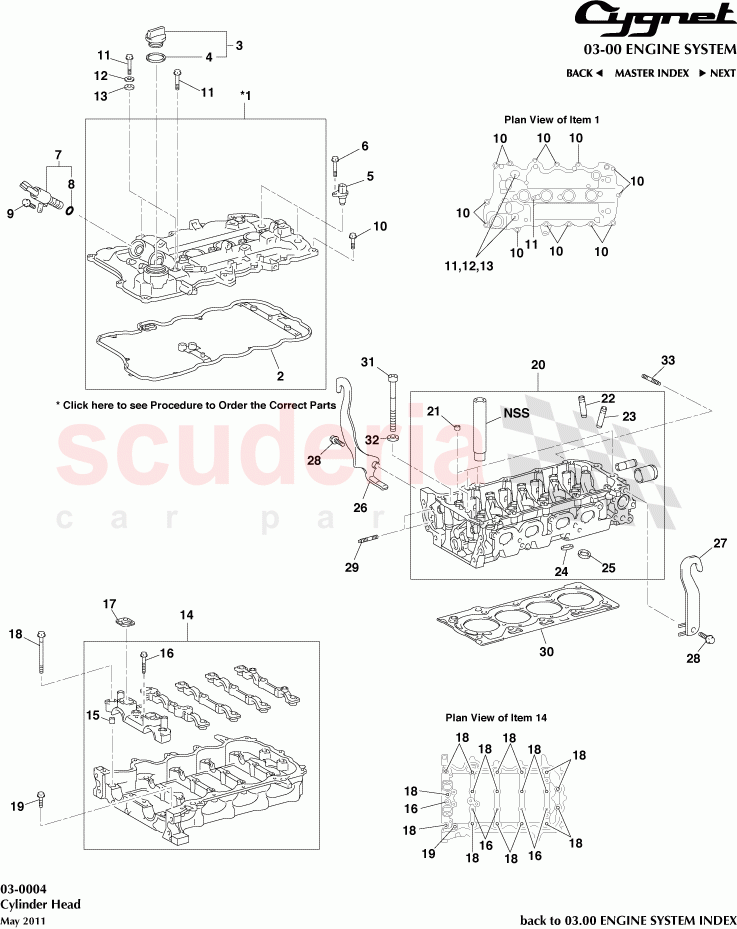

- 11201-47081 - Cover Sub-Assy, Cylinder Head
*From 05/2010
1 Enquire
- 15330-47010 - Valve Assy, Camshaft Timing Oil Control, No.1
1 Enquire
- 90119-07009 - Bolt, Camshaft housing Set, No.1
16 Enquire
- 11123-31041 - Bush, Exhaust Valve Guide, O/S 0.05
O/S 0,05
8 Enquire
- 11131-47010 - Seat, Intake Valve, STD
STD
8 Enquire
- 11136-47010 - Seat, Exhaust Valve, O/S 0,03
O/S 0,03
8 Enquire
1 11201-47080 - Cover Sub-Assy, Cylinder Head
*05/2009 to 05/2010
1 $326.37
2 11213-47020 - Gasket, Cylinder Head Cover
1 $12.62
3 12180-38010 - Cap Sub-Assy, Oil Filler
1 $18.31
4 90430-35001 - Gasket, Oil Filler Cap
1 Enquire
5 90919-05060 - Sensor, Crank Position, No.1
1 Enquire
11 91551-80635 - Bolt, Head to Camshaft Bearing Cap
3 Enquire
7 15330-47020 - Valve Assy, Camshaft Timing Oil Control, No.2
1 Enquire
8 90099-14137 - O Ring, Cam Timing Oil Control Valve
1 per Valve
2 Enquire
9 91671-80614 - Bolt, Flange with Washer
1 per Valve
2 $0.76
10 90109-06384 - Bolt J807
15 $1.02
12 90201-06047 - Washer, Plate
2 $1.02
13 90210-12011 - Washer, Seal, Cylinder Head Cover
2 Enquire
14 11103-47010 - Housing Sub-Assy, Camshaft
1 Enquire
15 90253-13005 - Pin, Ring, Camshaft Bearing Cap Setting
1 Enquire
18 90105-08455 - Bolt, Camshaft housing Set, No.2
16 Enquire
17 11159-47010 - Gasket, Camshaft Bearing Cap Oil Hole
1 Enquire
19 91671-G0835 - Bolt, Flange
1 $1.27
20 11101-49465 - Head Sub-Assy, Cylinder
1 Enquire
21 90253-11004 - Pin, Ring with Head
1 Enquire
23 11122-31041 - Bush, Exhaust Valve Guide, STD
STD
8 Enquire
24 11132-47010 - Seat, Intake Valve, O/S 0,03
O/S 0,03
8 Enquire
25 11135-47010 - Seat, Exhaust Valve, STD
STD
8 Enquire
26 12281-47022 - Hanger, Engine, No.1
1 Enquire
27 12282-47010 - Hanger, Engine, No.2
1 Enquire
28 91552-81040 - Bolt, Flange, V106
2 $1.53
29 90126-06002 - Stud, Hex Lobular
2 $1.02
30 11115-47050 - Gasket, Cylinder Head
1 $44.89
31 90910-02174 - Bolt, Cylinder Head Set
1 Enquire
32 90201-10344 - Washer, Plate, Cylinder head Set
1 Enquire
33 90126-08063 - Bolt, Stud, Exhaust Manifold to Cylinder Head
1 Enquire
