Name: Power steering oil pipe dynamic drive
Rating: 4.5 (1 reviews)

View All

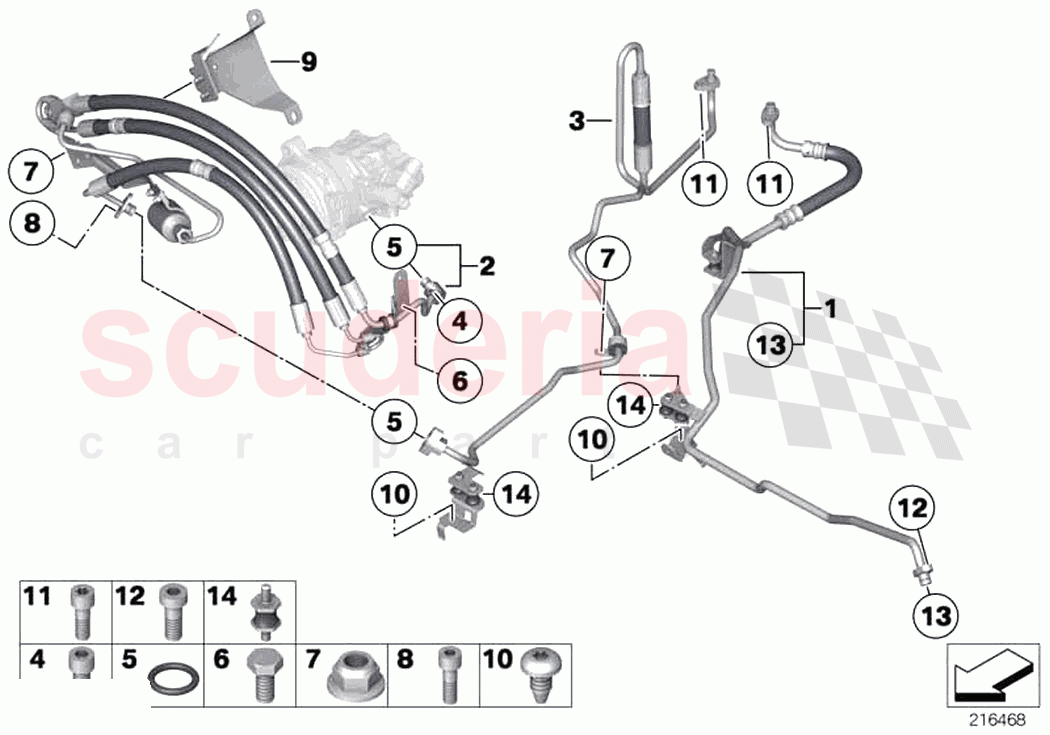

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	32416782518	Return pipe Dynamic Drive	$542.93	To Order

Photo	Part No	Description	Price (each)	Stock
	32416854534	Expansion hose Dynamic Drive 1st part	$1,214.31	To Order

Photo	Part No	Description	Price (each)	Stock
	32416782517	Expansion hose Dynamic Drive 2nd part	$671.42	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906651	Fillister head screw	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	32416788696	O-ring	$9.10	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905524	Hex Bolt	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905949	Hex nut with plate	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	32416782516	Bracket, expansion hose	$91.75	To Order

Photo	Part No	Description	Price (each)	Stock
	31146786689	Torx screw, self-tapping	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905769	ISA screw	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904375	Fillister head screw	$0.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	32416769256	Rubber mounting	$12.27	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	32416782518	Return pipe Dynamic Drive	32416782518 Return pipe Dynamic Drive	$542.93	1
2	32416854534	Expansion hose Dynamic Drive 1st part	32416854534 Expansion hose Dynamic Drive 1st part PART 1	$1,214.31	1
3	32416782517	Expansion hose Dynamic Drive 2nd part	32416782517 Expansion hose Dynamic Drive 2nd part PART 2	$671.42	1
4	7119906651	Fillister head screw	7119906651 Fillister head screw M6X18-10.9-ZNS3	$0.86	2
5	32416788696	O-ring	32416788696 O-ring 11X1,8 HNBR	$9.10	2
6	7119905524	Hex Bolt	7119905524 Hex Bolt M6X12-8.8-ZNNIV	$0.34	2
7	7119905949	Hex nut with plate IN STOCK	7119905949 Hex nut with plate M6-8-ZNNIV SI IN STOCK	$0.76	3
9	32416782516	Bracket, expansion hose	32416782516 Bracket, expansion hose	$91.75	1
10	31146786689	Torx screw, self-tapping	31146786689 Torx screw, self-tapping M6X13-ZNNIVSI	$1.54	3
11	7129905769	ISA screw	7129905769 ISA screw M8X22-ZNNIV SI	$1.26	2
12	7119904375	Fillister head screw IN STOCK	7119904375 Fillister head screw M8X20-8.8-ZNS3 IN STOCK	$0.90	1
14	32416769256	Rubber mounting	32416769256 Rubber mounting H=17	$12.27	5

Power Steering Oil Pipe Dynamic Drive

Rolls Royce Wraith RR5(2017-2023)
