Frnt Axle Support Wishbone Tension Strut

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Frnt axle support wishbone tension strut

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
31106854625 Front axle support $7,170.65 To Order
Photo Part No Description Price (each) Stock
31106770256 Hexagon screw with flange $4.99 To Order
Photo Part No Description Price (each) Stock
31106760222 Hexagon screw with flange $5.29 To Order
Photo Part No Description Price (each) Stock
31126775959 Tension strut with hydr. mount, left $406.52 IN STOCK
31126876307 Tension strut with hydraulic mount, left $1,738.67 IN STOCK
31126775960 Tension strut with hydr. mount, right $406.52 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
31126775145 Hydrobearing $105.74 IN STOCK
Photo Part No Description Price (each) Stock
31106872425 Clip nut, left Enquire To Order
33306760349 Self-locking collar nut $3.84 IN STOCK
31106872426 Clip nut, right Enquire To Order
Photo Part No Description Price (each) Stock
7146875114 Hexagon nut with collar $4.46 IN STOCK
Photo Part No Description Price (each) Stock
31126782181 Wishbone, bottom, with rubber mount left $1,403.92 To Order
31126782182 Wishbone, bottom,with rubber mount right $1,403.92 IN STOCK
Photo Part No Description Price (each) Stock
37116761553 Conical screw $46.17 IN STOCK
Photo Part No Description Price (each) Stock
37116761554 Conical nut $29.83 IN STOCK
Photo Part No Description Price (each) Stock
31356757707 Hex nut with plate $3.63 IN STOCK
Photo Part No Description Price (each) Stock
31126852998 Wishbone, top $1,006.26 IN STOCK
31106853374 Control arm, camber correction, top $1,319.58 To Order
31106855319 Control arm, camber correction, top $1,137.61 To Order
Photo Part No Description Price (each) Stock
7119905418 Hex Bolt with washer M10 x 80 $3.74 IN STOCK
Photo Part No Description Price (each) Stock
31106866023 Clip nut m10-10 $5.11 IN STOCK
Photo Part No Description Price (each) Stock
33306760585 Combination nut m10-10 $4.81 IN STOCK
Photo Part No Description Price (each) Stock
31106854530 Hex Bolt with washer $19.79 To Order
Photo Part No Description Price (each) Stock
31146782193 Heat protection plate left $112.11 To Order
31146788907 Heat protection plate left $113.22 To Order
Photo Part No Description Price (each) Stock
31146782194 Heat Protection Plate Right $112.11 To Order
31146788908 Heat Protection Plate Right $113.22 To Order
Photo Part No Description Price (each) Stock
31146786689 Torx screw, self-tapping $1.55 To Order
View All
Frnt axle support wishbone tension strut of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 7147284477
Blind rivet nut, flat headed
M8 DMAX=20MM; to 09.2011 		$4.81 4
- 33316767586
ASA screw with washer
M14X127-10.9; 09.2011 - 01.2018
IN STOCK 		$10.21 1
- 31106783591
Clip nut, left
M14X1,5-10 ZNS3; 09.2011 - 01.2018
IN STOCK 		$10.24 1
- 31106799668
Hex nut with flange
M16X1,5-10 ZNNI; 09.2011 - 01.2018 		- 1 Enquire
- 31106783592
Clip nut, right
M14X1,5-10 ZNS3; 09.2011 - 01.2018
IN STOCK 		$10.24 1
1 31106854625
Front axle support
to 09.2011 		$7,170.65 1
2 31106770256
Hexagon screw with flange
M12X1,5X65-10.9; to 09.2011 		$4.99 2
3 31106760222
Hexagon screw with flange
M12X1,5X95-ZNS3; to 09.2011 		$5.29 2
5 31126775959
Tension strut with hydr. mount, left
09.2011 - 01.2018
IN STOCK 		$406.52 1
5 31126876307
Tension strut with hydraulic mount, left
to 01.2018
IN STOCK 		$1,738.67 1
5 31126775960
Tension strut with hydr. mount, right
09.2011 - 01.2018
IN STOCK 		$406.52 1

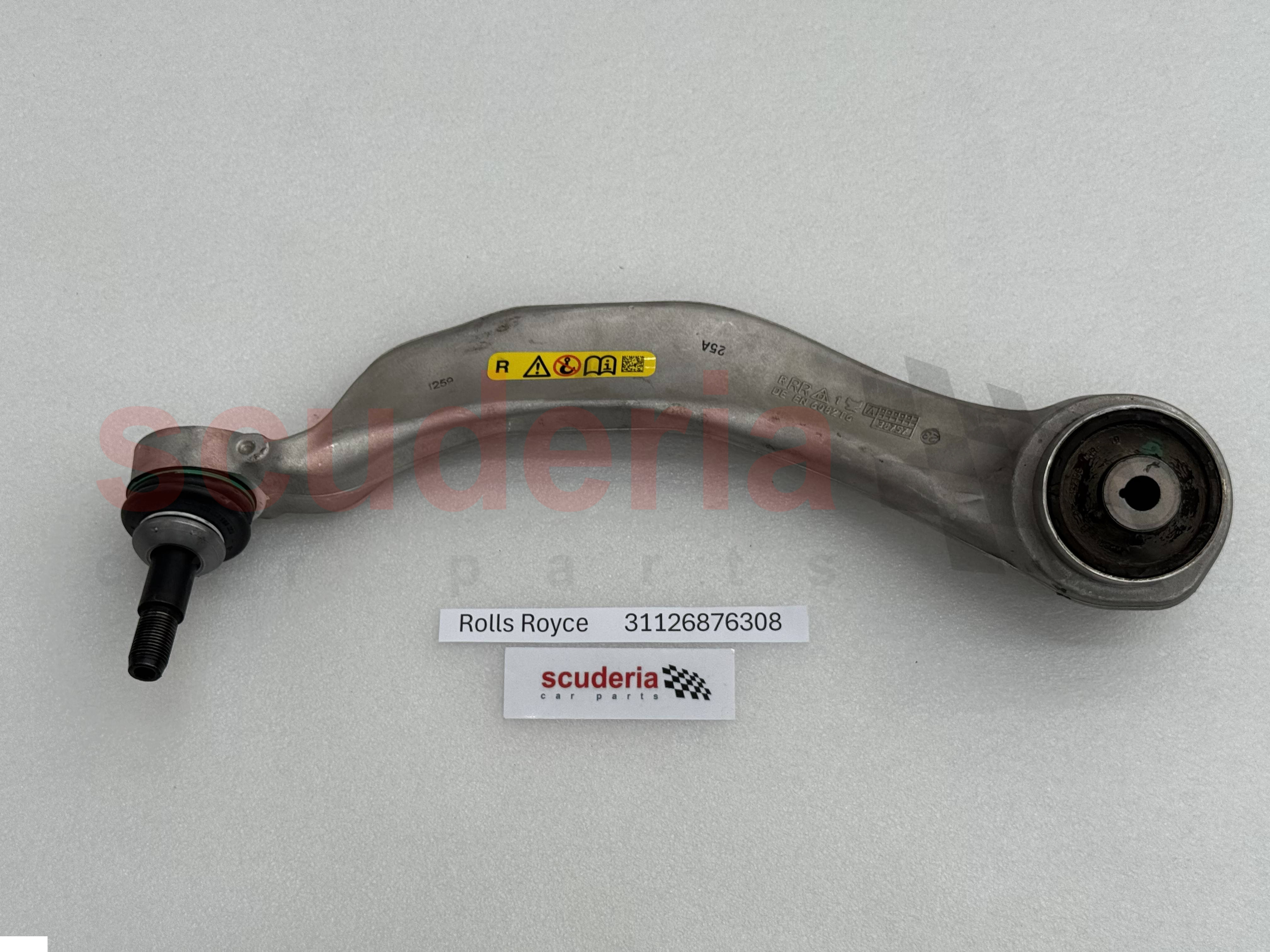

5 31126876308
Tension strut with hydraulic mount, right
to 01.2018
IN STOCK 		$1,738.67 1
6 31126775145
Hydrobearing
09.2011 - 01.2018
IN STOCK 		$105.74 2
8 31106872425
Clip nut, left
08.2015 - 04.2022 		- 1 Enquire
8 33306760349
Self-locking collar nut
M14X1,5-10 ZNS3; 08.2015 - 04.2022
IN STOCK 		$3.84 1
8 31106872426
Clip nut, right
08.2015 - 04.2022 		- 1 Enquire
9 7146875114
Hexagon nut with collar
M16X1.5 ZNNIV; to 09.2011
IN STOCK 		$4.46 4
10 31126782181
Wishbone, bottom, with rubber mount left
to 09.2011 		$1,403.92 1
10 31126782182
Wishbone, bottom,with rubber mount right
to 09.2011
IN STOCK 		$1,403.92 1
12 37116761553
Conical screw
to 09.2011
IN STOCK 		$46.17 2
13 37116761554
Conical nut
to 09.2011
IN STOCK 		$29.83 2
14 31356757707
Hex nut with plate
M10 ZNS3; to 09.2011
IN STOCK 		$3.63 2
15 31126852998
Wishbone, top
to 09.2011
IN STOCK 		$1,006.26 2
15 31106853374
Control arm, camber correction, top
+30MIN; to 09.2011 		$1,319.58 2
15 31106855319
Control arm, camber correction, top
-30MIN; to 09.2011 		$1,137.61 2
16 7119905418
Hex Bolt with washer M10 x 80
M10X80-U1-10.9; to 09.2011
IN STOCK 		$3.74 4
17 31106866023
Clip nut m10-10
M10-10 ZNS3; to 09.2011
IN STOCK 		$5.11 2
18 33306760585
Combination nut m10-10
M10-10 ZNS3; to 09.2011
IN STOCK 		$4.81 2
19 31106854530
Hex Bolt with washer
M10X1X20-10.9; to 09.2011 		$19.79 2
20 31146782193
Heat protection plate left
to 09.2011 		$112.11 1
20 31146788907
Heat protection plate left
to 09.2011 		$113.22 1
21 31146782194
Heat Protection Plate Right
to 09.2011 		$112.11 1
21 31146788908
Heat Protection Plate Right
to 09.2011 		$113.22 1
22 31146786689
Torx screw, self-tapping
M6X13-ZNNIVSI; to 09.2011 		$1.55 7
