Name: Air duct
Rating: 5.0 (1 reviews)

View All

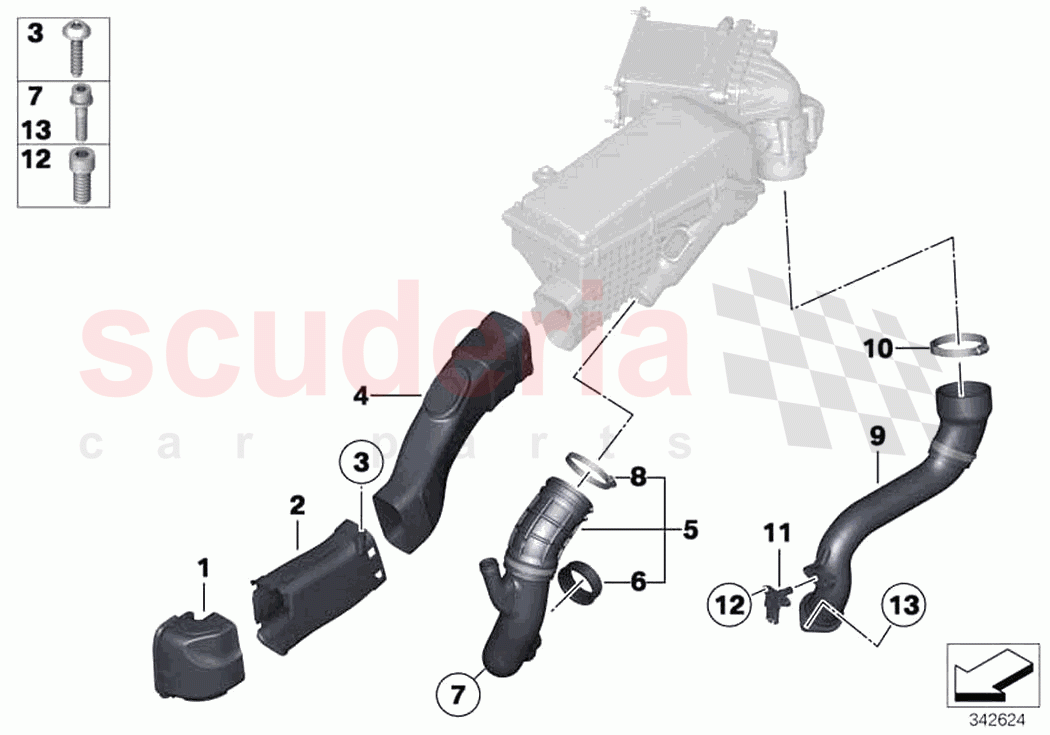

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11617535849	Screw	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	13717604013	Gasket	$31.98	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904943	Fillister head with washer	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	7129952127	Hose clamp	$1.98	To Order

Photo	Part No	Description	Price (each)	Stock
	13717593244	Hose clamp	$7.46	To Order

Photo	Part No	Description	Price (each)	Stock
	13628644432	Pressure sensor	$151.90	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906475	Fillister head screw	$9.16	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904819	Torx-bolt with washer	$0.52	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	13717577486	Intake duct	13717577486 Intake duct ZYL. 7-12	$33.51	1
1	13717577487	Intake duct	13717577487 Intake duct ZYL. 1-6	$33.51	1
2	13717566379	Intake duct IN STOCK	13717566379 Intake duct ZYL. 7-12 IN STOCK	$80.43	1
2	13717566380	Intake duct IN STOCK	13717566380 Intake duct ZYL. 1-6 IN STOCK	$80.43	1
3	11617535849	Screw	11617535849 Screw 5X20	$1.15	2
4	13718619936	Air duct	13718619936 Air duct ZYL. 7-12	$231.83	1
4	13718619937	Air duct	13718619937 Air duct ZYL. 1-6	$231.83	1
5	13717566384	Filtered air pipe	13717566384 Filtered air pipe ZYL. 7-12	$134.07	1
5	13717566385	Filtered air pipe	13717566385 Filtered air pipe ZYL. 1-6	$134.07	1
6	13717604013	Gasket	13717604013 Gasket	$31.98	2
7	7119904943	Fillister head with washer	7119904943 Fillister head with washer M6X22-U0-ZNS3	$1.17	2
8	7129952127	Hose clamp	7129952127 Hose clamp L65-72	$1.98	2
9	13717595222	Charge air tube	13717595222 Charge air tube ZYL. 7-12	$442.27	1
9	13717595223	Charge air tube	13717595223 Charge air tube ZYL. 1-6	$442.27	1
10	13717593244	Hose clamp	13717593244 Hose clamp	$7.46	2
11	13628644432	Pressure sensor	13628644432 Pressure sensor	$151.90	2
12	7119906475	Fillister head screw	7119906475 Fillister head screw M6X14	$9.16	4
13	7129904819	Torx-bolt with washer IN STOCK	7129904819 Torx-bolt with washer M6X16-8.8-ZNNIV IN STOCK	$0.52	4

Air Duct

Rolls Royce Wraith RR5(2017-2023)
