Name: GA6HP32Z housing with mounting parts
Rating: 4.1 (1 reviews)

View All

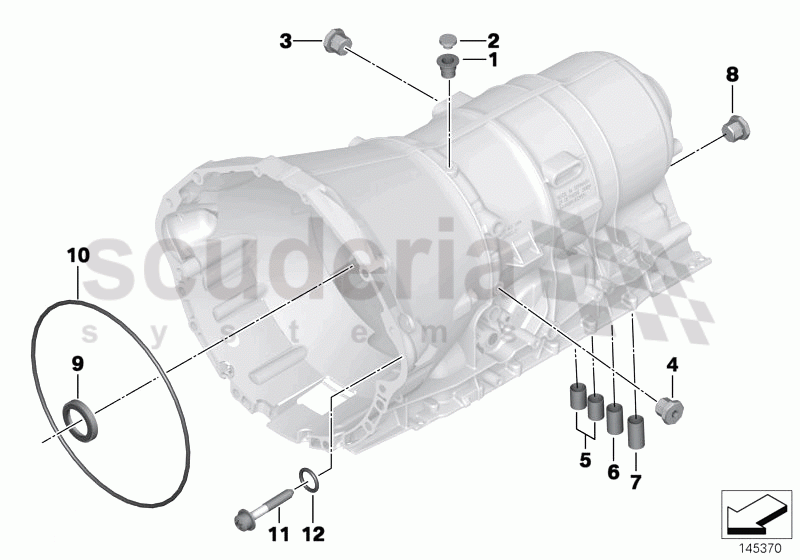

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	24101422141	Vent pipe	$24.92	To Order

Photo	Part No	Description	Price (each)	Stock
	24101422142	Vent cover	$12.16	To Order

Photo	Part No	Description	Price (each)	Stock
	24117552349	Screw plug with gasket ring	$10.55	To Order

Photo	Part No	Description	Price (each)	Stock
	24117552351	Screw plug with gasket ring	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	24107519314	Sealing sleeve	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	24107571250	Sealing sleeve	$16.15	To Order

Photo	Part No	Description	Price (each)	Stock
	24107520715	Sealing sleeve	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	24117552350	Screw plug with gasket ring	$9.94	To Order

Photo	Part No	Description	Price (each)	Stock
	24317519352	Shaft seal	$36.23	To Order

Photo	Part No	Description	Price (each)	Stock
	24311421583	O-ring	$23.14	To Order

Photo	Part No	Description	Price (each)	Stock
	24311219386	Torx bolt	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	24311219165	Gasket ring	$4.81	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	24101422141	Vent pipe	24101422141 Vent pipe	$24.92	-
2	24101422142	Vent cover	24101422142 Vent cover	$12.16	-
3	24117552349	Screw plug with gasket ring	24117552349 Screw plug with gasket ring M18X1,5	$10.55	-
4	24117552351	Screw plug with gasket ring	24117552351 Screw plug with gasket ring M10X1	$5.58	-
5	24107519314	Sealing sleeve	24107519314 Sealing sleeve L=25,9MM	$15.25	-
6	24107571250	Sealing sleeve	24107571250 Sealing sleeve	$16.15	-
7	24107520715	Sealing sleeve	24107520715 Sealing sleeve L=40,7MM	$15.25	-
8	24117552350	Screw plug with gasket ring	24117552350 Screw plug with gasket ring M12X1,5	$9.94	-
9	24317519352	Shaft seal	24317519352 Shaft seal 45X58X7	$36.23	-
10	24311421583	O-ring	24311421583 O-ring 249X3	$23.14	-
11	24311219386	Torx bolt	24311219386 Torx bolt M6X50	$3.52	-
12	24311219165	Gasket ring	24311219165 Gasket ring	$4.81	-

Ga6Hp32Z Housing With Mounting Parts

Rolls Royce Phantom Drophead Coupe
