Fuel Pipe And Mounting Parts

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Fuel Pipe and Mounting Parts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16127415285 Fuel feed line front $255.43 To Order
Photo Part No Description Price (each) Stock
16127415290 Fuel feed line $117.57 To Order
Photo Part No Description Price (each) Stock
16127415286 Fuel feed line rear $117.57 To Order
Photo Part No Description Price (each) Stock
16127415292 Scavenging line front $169.27 To Order
16125A20A10 Scavenging line front $293.69 To Order
Photo Part No Description Price (each) Stock
16127415294 Scavenge air line $117.72 To Order
Photo Part No Description Price (each) Stock
16127415295 Scavenging line rear $129.82 To Order
Photo Part No Description Price (each) Stock
16127385405 Clip $3.78 To Order
Photo Part No Description Price (each) Stock
16117415279 Tubing support $40.46 To Order
Photo Part No Description Price (each) Stock
34506859776 Hex nut $1.35 To Order
Photo Part No Description Price (each) Stock
7147441116 Clip $6.02 To Order
7145A154B0 Clip $1.33 To Order
Photo Part No Description Price (each) Stock
7147441119 Clip $4.51 To Order
Photo Part No Description Price (each) Stock
7147441123 Clip $6.02 To Order
View All

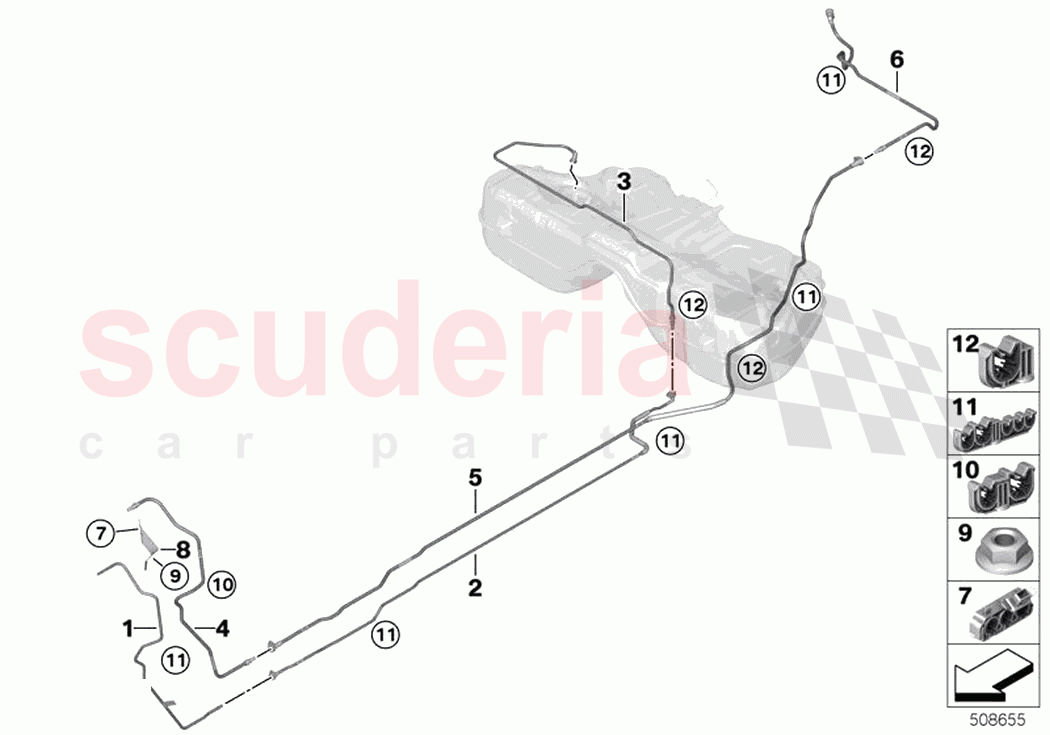

Fuel Pipe and Mounting Parts of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 16127415285
Fuel feed line front 		$255.43 1
2 16127415290
Fuel feed line 		$117.57 1
3 16127415286
Fuel feed line rear 		$117.57 1
4 16127415292
Scavenging line front
from 08.2020 		$169.27 1
4 16125A20A10
Scavenging line front
to 08.2020 		$293.69 1
5 16127415294
Scavenge air line 		$117.72 1
6 16127415295
Scavenging line rear 		$129.82 1
7 16127385405
Clip
D12 D12/D10 D10 		$3.78 1
8 16117415279
Tubing support 		$40.46 1
9 34506859776
Hex nut
M6-8-SC-ZNNIV S 		$1.35 1
10 7147441116
Clip
D8/10 D10/12; from 02.2021 		$6.02 1
10 7145A154B0
Clip
D10 D12 		$1.33 1
11 7147441119
Clip
2XD5 D4 D10/12 		$4.51 15
12 7147441123
Clip
D10/12 		$6.02 5
