Name: Cooling system water hoses charge air
Rating: 4.5 (1 reviews)

View All

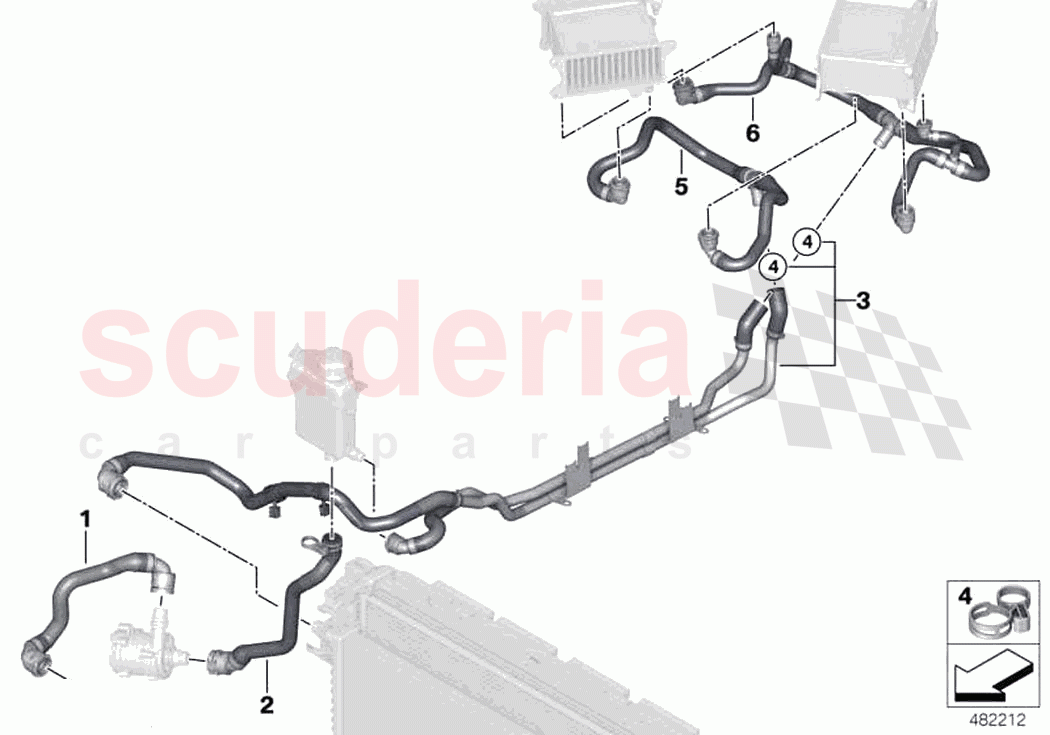

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17128602751	Hose radiator	$69.39	To Order

Photo	Part No	Description	Price (each)	Stock
	17128602750	Hose for expansion tank	$40.42	To Order

Photo	Part No	Description	Price (each)	Stock
	17128602753	Refrigerant pipe	$494.56	To Order

Photo	Part No	Description	Price (each)	Stock
	17129469517	Return hose charge air cooler	$122.75	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	17128602751	Hose radiator	17128602751 Hose radiator	$69.39	1
02	17128602750	Hose for expansion tank	17128602750 Hose for expansion tank	$40.42	1
03	17128602753	Refrigerant pipe	17128602753 Refrigerant pipe	$494.56	1
04	64219182743	Spring ring shell	64219182743 Spring ring shell D=28MM	$4.46	2
04	17128632053	Clip	17128632053 Clip D=22-24	$3.76	2
05	17128602739	Supply hose	17128602739 Supply hose	$86.15	1
05	64213405913	Hose clamp IN STOCK	64213405913 Hose clamp D=27MM IN STOCK	$4.79	2
06	17128602740	Return hose	17128602740 Return hose	$116.30	1
06	17129469516	Feed line charge air cooler	17129469516 Feed line charge air cooler	$67.18	1
07	17129469517	Return hose charge air cooler	17129469517 Return hose charge air cooler	$122.75	1

Cooling System Water Hoses Charge Air

Rolls Royce Phantom RR11(2017-2023)
